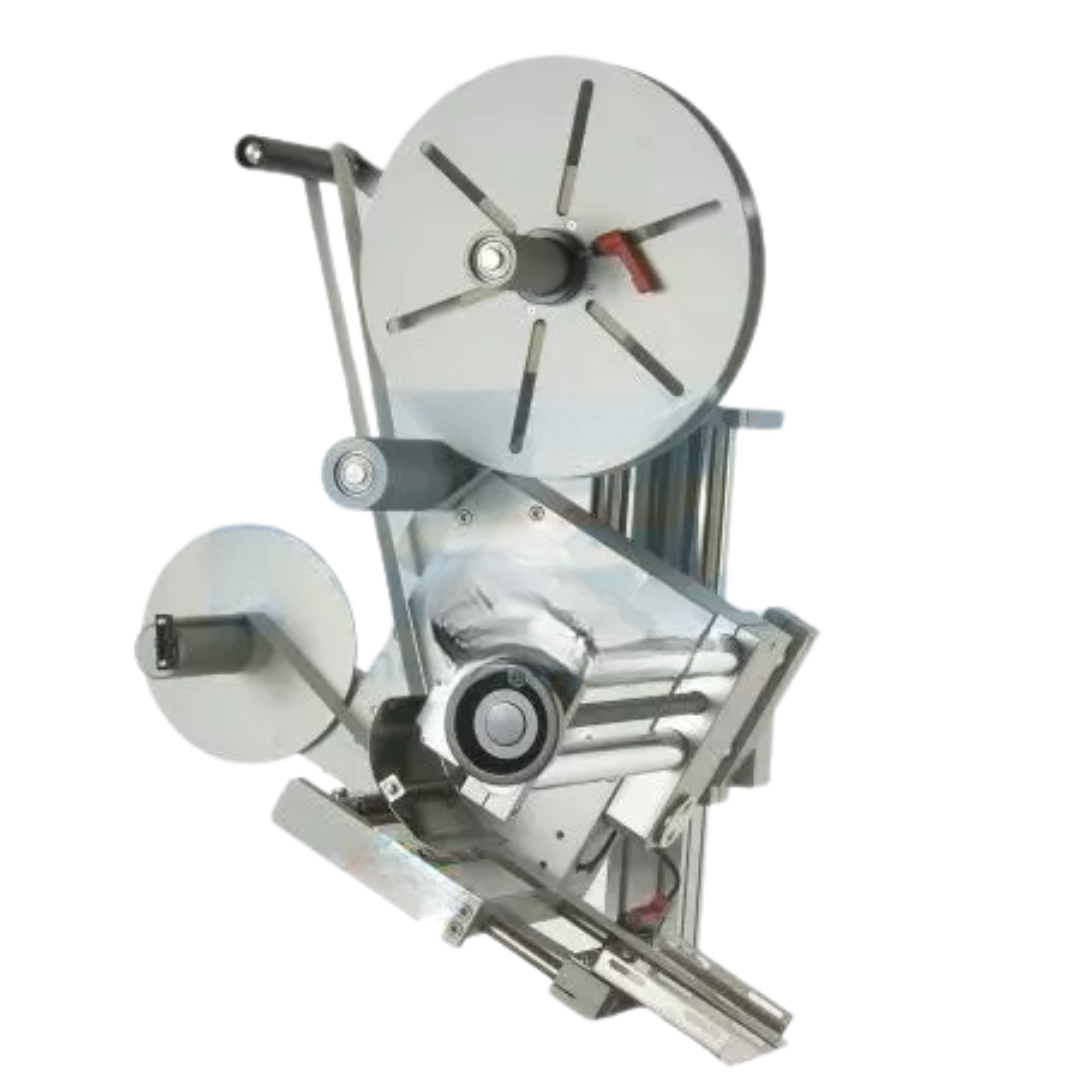

- The label applicator is available for the production line, and its height and angle can be fine-tuned.
- You can set the label applicator on the side of the conveyor to paste labels on large cartons.
- Connecting with the existing production line, combining automation with versatility to provide more efficient production
- The label applicator gets the function of labeling independently and synchronizing with the production line.
- Japanese sensor detects precisely to match product positioning and labeling.
- The stepper motor drives the label applicator, which has stable, continuous production characteristics
- Labeling speed is adjustable. You can fine-tune the speed according to the production requirement and product features.
- The mechanism is simple, and the replacement of the label roll is easy; one man can operate.
- LA1000 can be equipped with a conveyor belt to increase the suitable product categories.
- All components are modular. You can purchase the printer additionally to print the product batch number or date.
- Choosing different smoothing mechanisms (wrapping unit, sponge roller, brush), which can be applied to flat and non-flat surfaces.
- When using transparent stickers, a special transparent label sensor is available.
- It's suitable for products with different shapes. The final product is exquisite and firm without wrinkles.
- Made of stainless steel sus#304 and aluminum alloy; durable and sturdy.
- The outline of the label applicator mechanism is clear, easy to maintain, and clean.
- It can combine with other packaging machines to form a production line. If encountered, missed labels or broken labels, the label applicator will activate the automatic warning function.
- Label Applicator is used to automate large quantities of labeling and improve the efficiency, accuracy, and consistency of the labeling process.
Features
Specifications
-
Labeling Motor: Stepper Motor
-
Labeling Speed: 8–10 m/min (according to product and label size)
-
Labeling Accuracy: ±1 mm
-
Label Size: Width: 10–100 mm, Length: 10–250 mm
-
Label Roll: Inner Diameter: 75 mm, Outer Diameter: 300 mm
-
Power Supply: 110 or 220 VAC, 50/60 Hz, single phase
-
Machine Size: (L) 440 mm × (W) 243 mm × (H) 542 mm
- ※ Actual product specifications may vary
Option Accessories
- Labeler Arm
- Conveyor
- Bottle Gating System
- PLC Control System
- Printer Bracket
- Transparent Label Sensor
- Japanese Servo Motor Control System, Labeling Speed reaches 40 m/min
- Smoothing Unit(Brush, Sponge Roller, Spindle Wrapping Unit)
Description
Description
A label applicator plays an important role in a labeling machine, it is the heart of a labeler. It is one of the most widely used equipment in various industries. During the normal operation process, the labeling machine not only needs a strong mechanical structure but also a reliable label applicator. After peeling off labels, automatically attaching labels to the product, container, or package. The labeling head is normally used in the manufacturing and packaging process. It can apply different label types and configurations to meet the needs of different industries.
Automated packaging line makes products more competitive
LA1000 can be equipped with packaging machines or other automation equipment easily. This application makes the label applicator an indispensable part of the production line. In addition, it is widely used in production lines of different industries, which include side labeling, top labeling, and round bottle labeling etc. LA1000 can be installed on production lines directly and easily connected to the PLC Control System. When the equipment is turned on, the label applicator can immediately synchronize with the production line, and its labeling speed can reach 8-12 meters per minute.
Automatically peel off the label, attach the label, and collect back paper to fix the flaws from manual operation, reduce human error
Compared with traditional manual labeling, the automated label applicator can easily peel off labels and accurately paste them to products of various sizes and angles. Each label applicator is shipped with a back paper spool disc, and its function is to collect the back paper without stickers. Operators don’t need to waste time organizing the back paper. They only need to pull out the holder of the back paper to easily remove the entire roll of used back paper, saving valuable time and enhancing production efficiency.
LA1000, Label applicator makes labeling fast, precise, and diverse
The LA1000 sensor detects the labeling position accurately and dispenses labels by the stepper motor for stable and fast labeling. You can flexibly adjust the angle and position of it.
When the label applicator is connected to the PLC control system, the operator can set the labeling process through the controller, including the size, spacing, and position of the label, to take control of the labeling status. Meanwhile, improving the efficiency, accuracy, and functionality. The versatility of LA1000 can be used in different industries to simplify the labeling process, enhance efficiency, and ensure the consistency and precision of the product.
The design of LA1000 is suitable for a variety of label shapes, sizes, and materials, except for round labeling. It can be used for different types of product packaging. The combination of automation and versatility optimizes packaging operations, increases production capacity, and enhances market competitiveness.
Specifications
- Labeling Motor: Stepper Motor
- Labeling Speed: 8–10 m/min (according to product and label size)
- Labeling Accuracy: ±1 mm
- Label Size: Width: 10–100 mm, Length: 10–250 mm
- Label Roll: Inner Diameter: 75 mm, Outer Diameter: 300 mm
- Power Supply: 110 or 220 VAC, 50/60 Hz, single phase
- Machine Size: (L) 440 mm × (W) 243 mm × (H) 542 mm
- ※ Actual product specifications may vary
Advantages:
- Versatility: It’s suitable for various products. Whether it is top labeling, bottom labeling, or side labeling, LA1000 can apply different labels, shapes, and materials to the product to packaging, providing flexibility.
- Space-saving, can be widely used: The machine is easy to install and space-saving. It’s suitable for production lines in various industries such as food packaging, cosmetics, pharmaceuticals, chemicals, and electronics.
- Automated production is more efficient: Automated labeling and packaging operations significantly increase production speed.
- Proactively remind the operator to change labels: When the stickers have run out, the system will launch a signal alarm to remind the operator to replace the label roll.
- Suitable for labeling production lines of multiple products: Flexible multiple configurations to meet the needs of different industries.
Application
Suitable Goods:
Food & Beverages: Bottled Beverages, Food Can, Sauce, Yogurt, Food Boxes, Ice Cream, Panna Cotta, Chocolate, Food Storage Container, Olive Oil, Sandwiches, Egg Cartons, Aluminum foil bag.
Pharmaceutical and medical equipment: Various drug canisters, injections, medicine boxes, etc. The labels include the drug name, dosage, and expiration date.
Cosmetics and Personal Care Products: Lipsticks, Creams, Hair dyes, Hair oils, Serums, and Mouthwash. Labels make products easier to recognize.
Chemicals: Containers of chemicals, Lubricating oil, Car batteries, Car wash detergent, Engine oil.
Electronic products: Electronic Parts, SD cards, Plastic Boxes, Paper Boxes, Films, Metal Parts.
Logistics and Transportation: Shipping labels, Barcode, Tags, Promotion labels.
Suitable Product Shape:
Three-dimensional products, such as square boxes, flat bottles, round bottles, etc.
Flat products, such as cartons, zipper bags, and paper bags.
Suitable Product Material:
paper, glass, aluminum foil, plastic (PP, PE, PET, PVC), ceramic, metal (tinplate, aluminum, stainless steel).
Suitable Labels:
Self-adhesive labels, Promotion Labels, Anti-counterfeit Labels, Laser Labels, Barcode, fragile labels, ingredient labels, Polyester stickers, serial number labels, computer labels, product labels, waterproof stickers, Drug indication label(Off-label use)
Labeling Method:
Driving the label applicator with a stepper motor. When the paper roll reaches the peel plate, peel off the sticker and paste it onto the products. And the back paper will be rolled onto the back paper spool disc automatically.
Suitable Industries:
Pharmaceutical industry, food industry, baking industry, cosmetics industry, biotechnology industry, manufacturing industry, daily chemical industry, technology industry, etc.
Machine Layout:
