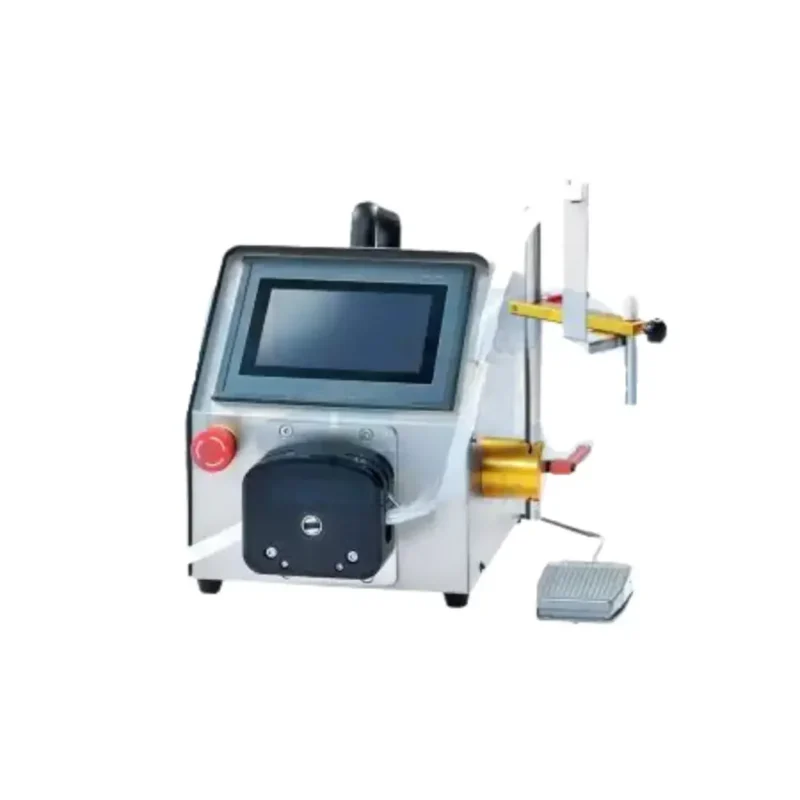

Tabletop Peristaltic Pump Liquid Filling Machine

Description

Tabletop Peristaltic Pump Liquid Filling Machine FT1000 features precise, hygienic filling and is suitable for industries such as biotechnology, food, chemical, and medical, as it allows for filling with no chance of contamination. It’s lightweight and portable, takes up little production space, and is perfect for those who are starting to move into automatic production, those who do not have a lot of extra production space, or those who would like a backup machine to support an existing production line.

The interface allows up to 20 recipes to be saved at once, for those who are constantly switching products, and also allows the operator to keep track of production levels. Only one operator is needed during production, which frees up valuable manpower to focus on other tasks.

The one-tube feature of this Tabletop Peristaltic Pump Liquid Filling Machine allows the user to switch between production lines without fear of cross-contamination. The liquid does not leave the tube at all during the filling process, saving time and energy that can be spent more productively.

For products that may need to be filled in a sterile environment or those that may have chemical reactions to the metal innards of a typical filling machine, this will reduce all sorts of unwanted exposures and possible hazards.

For products where isolation and sterilization are not high priorities, the Tabletop Peristaltic Pump Liquid Filling Machine can still help save cleaning time, as there is no need to clean the machine’s main body. Only the tube needs to be cleaned, and a different tube can be assigned to each product, so that product switching can be done just by putting the assigned tube onto the machine.

So, for our consumers who need to switch between three or more products, or have high hygiene standards, we recommend the Tabletop Peristaltic Pump Liquid Filling Machine for your filling needs.

Advantages

1. Steady and precise filling by the peristaltic pump.
   2. Single tube means that there is no possibility of cross-contamination, as well as easy production switching.
   3. No additional parts or tools needed to change production.
   4. Meets the cGMP Guidelines for Good Manufacturing Practice for Medicinal Products.
   5. Can be used with a capper and labeler to create a semi-automatic production line.

Application & Advantage

Suitable for:

Syrups, sauces, oils, yogurts, juices, glues, chemicals, alcohols, creams, shampoos, detergents, pastes, serums, concentrates, extracts, nail polishes, pigments, varnishes, slurries, resins, inks, purees.

Suitable fields

Pharmaceuticals, biotechnology, dietary supplements, cosmetics, food and beverages, laboratories, and hospitals.

Q & A

Q: Can fillings with solid chunks be used with the Tabletop Peristaltic Pump Liquid Filling Machine?

A: It is not recommended. For solid/liquid mixes, we recommend taking a look at the FP line, which can fill those kinds of liquids.

Q: What’s the difference between the FT1000 and FG1000?

A: Visually, they appear very similar to each other. The most crucial difference is in the way they pump liquids. The FG1000 uses a gear pump, which means that the infeed and outfeed tubes are connected to the gear pump in the front. As the liquid passes through the gear pump, it is pushed towards the outfeed tube. The FT1000, on the other hand, features one unbroken tube that goes from infeed to outfeed. The peristaltic pump massages the tube to force the liquid to pump through. The FG1000 is can fill continuously, while the FT1000 fills in cycles and is suitable for products that need to be filled in a sterile environment.

Features

1. Tabletop Peristaltic Pump Liquid Filling Machine features a humanized digital control interface, adjustable filling volumes, speed, and intervals for easy adjustments

2. User-friendly PLC program, making operation fast and easy.

3. Semi-automatic operation means that the machine has no complicated parameter settings; it’s easy to use even for first-time operators.

4. Tabletop Peristaltic Pump Liquid Filling Machine is equipped with food-grade silicon filling tubes, meeting the highest sanitary requirements.The

5. Tabletop Peristaltic Pump Liquid Filling Machine has an emergency stop button to protect the safety of operators.

6. Liquids run through switchable tubes only, providing easy clean up without the need for disassembling the machine itself.

7. Adjustable filling volume, speed, and interval time provide high filling flexibility. Connectable to a foot pedal; can be operated either by hand or foot.

8. Switchable filling tubes. Each can work with one kind of liquid, eliminating the possibility of cross-contamination.

9. Solid-body design provides high stability and durability.

10. Small in size, providing space efficiency and mobility.

11. The tabletop peristaltic pump filling machine FT1000 works best with liquids under 60 degrees Celsius.

12. Tabletop Peristaltic Pump Liquid Filling Machine is made of SUS 316 stainless steel, meeting the cGMP level sanitary requirement.

Specification

• Filling range: 5~500ml
• Filling speed: 5- 50ml/sec
• Filling accuracy: ±0.5%~1%
• Power supply: 110 or 220VAC; 50Hz/60Hz; single phase
• Machine dimension : (L)459.7mm(W)493.4mm(H)419.1mm

Option Accessories

• Automatic pneumatic shut-off valve.
• Diving filling nozzle
• Customized stainless steel hopper
• Electrical scale
