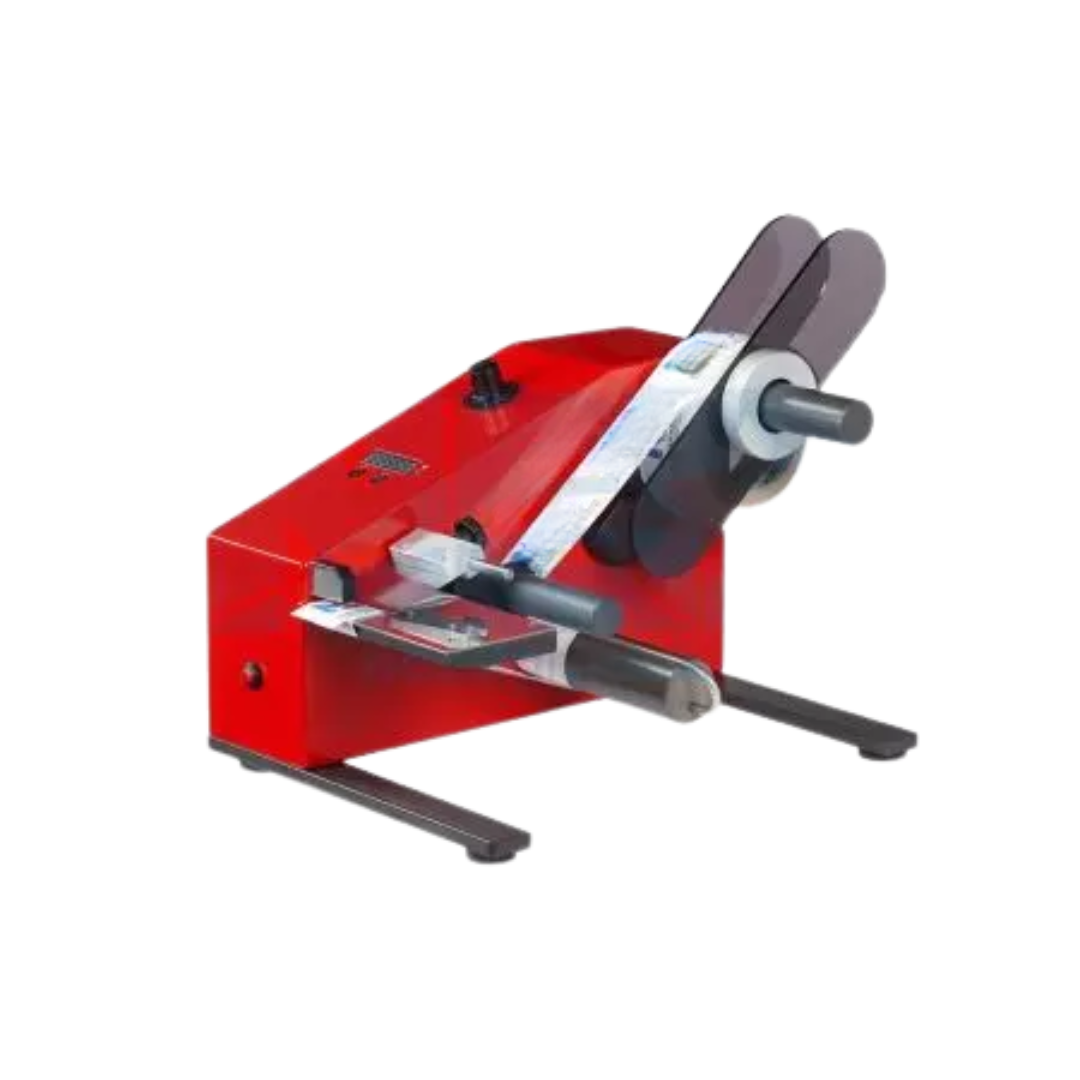

Label Dispenser

Description

The label dispenser is electronically controlled. It’s simple to operate and has no complicated setting procedure, which could save your time on operator training. The compact label dispenser is equipped with a counting function, making it easy to monitor the production capability, and the machine can prevent old-fashioned, manual label dispensing problems such as label breakage, label wrinkling, and time consumption from happening.

The operator no longer needs to peel the label manually because the machine can dispense the label automatically and in parallel, keeping the label from being wrinkled, and the operator can just paste the label on any kind of product directly to make the production process more fluent. The device can be applied to different kinds of labels in a wide range. The operators only need to pick & paste the label repeatedly, and they can easily be highly productive. The automatic label dispenser has a small dimension, and it can be placed in any place. Also, the production capacity can be manipulated easily, and the backing paper will be collected automatically when all labels are used. There is an optional date coding device available, which could make the labeling/ date-coding procedure more efficient.

How To Increase The Manual-Labeling Efficiency By Using The Label Dispenser Machine?

First, put the new label roll on the spool disc of the electric label dispenser, and adjust the device according to the label width. After that, pull the backing paper out and wrap it around the rolling shaft, then fix the backing paper on the rewinding shaft. After doing these things, the backing paper will be collected automatically. Adjust the dispenser and turn on the power, and your production will have higher efficiency. The label will be peeled parallelly and one-by-one, dispensing, making the production procedure continuous, and the label can be pasted on the product directly. Furthermore, the production speed is adjustable, depending on the requirement.

• Label length: (L) 8-300mm (W) 6-100mm
• Power supply: 110/220VAC, 50/60 Hz
• Label Roll Inner Dia.: no less than 25 mm
• Label Roll Outer Dia.: no larger than 250 mm
• Dispensing speed: 6-7 meters per minute
• Dimension: (L) 330mm (W) 210mm (H) 180mm
• Machine Weight: 3.5 kg

Features

1. The label dispenser machine is equipped with an automatic label counting function, making it easy to monitor the capacity and avoid miscounting that might happen.
2. It’s also equipped with a label brush device, so the label will have no wrinkles when dispensing.
3. The device is simple to operate, and the dispensing length can be adjusted simply by a time controller.
4. The Accurate controlling system provides label dispensing adjustment.
5. The electric label dispenser has a small volume size and light weight, which can be placed anywhere.
6. It can keep working for a long period of time, and you don’t need to worry about overheating.
7. The device is driven by an advanced AC motor that has high endurance.
8. Automatic label detection, and the label will be waiting to be picked up.
9. No more manual peeling. Saving your time.
10. It can be applied to different sizes of labels. High cost-performance ratio.
11. An accurate fiber amplifier ensures the label dispensing length.
12. Automatic backing paper collecting. The backing paper won’t fall off.

Option Accessories

• Transparent label sensor
• Date coder/printer
