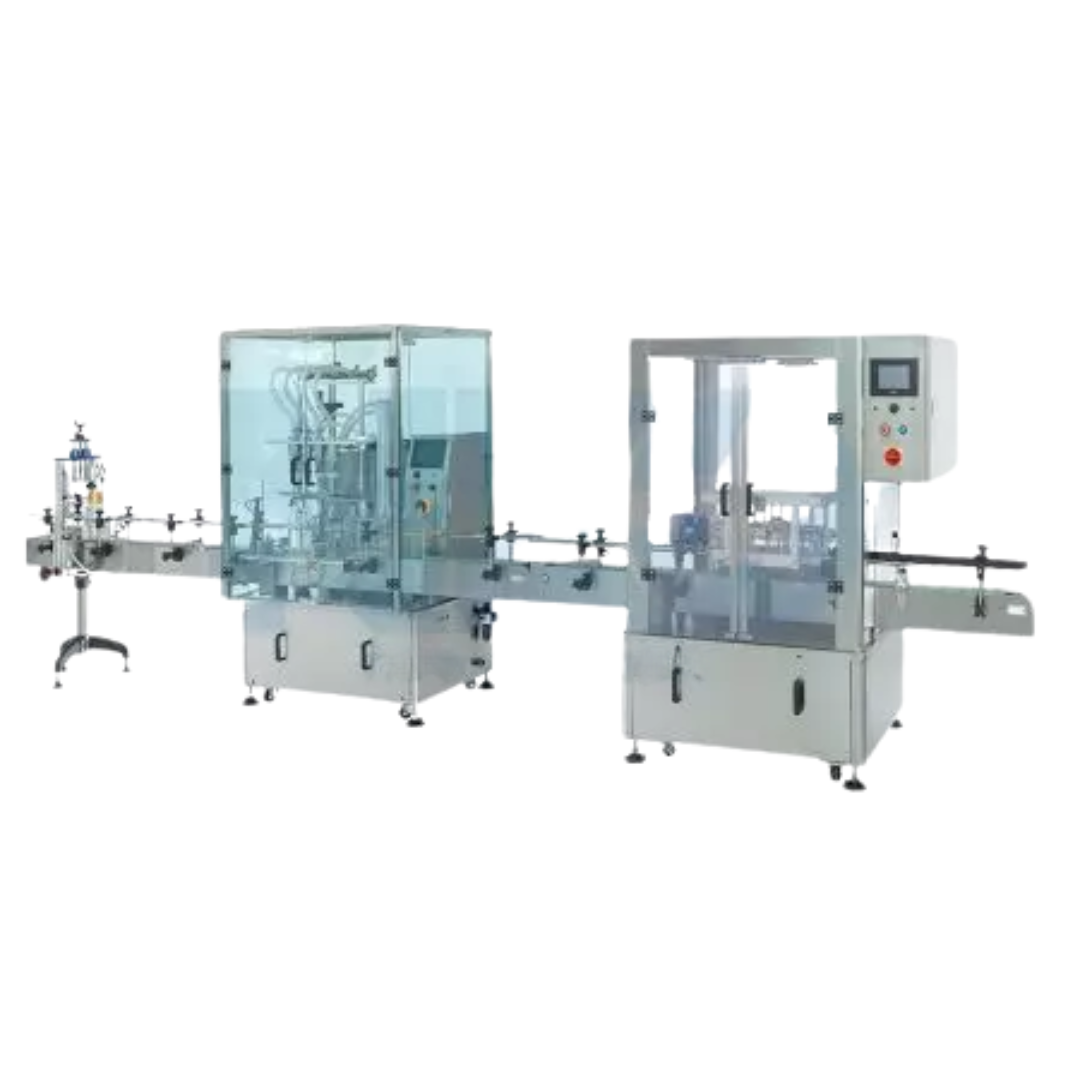

Bottle Rinsing and Filling Machine Line

Description

Bottle Rinsing and Filling Machine Line is built to help with product security and hygiene concerns. Air blows into bottles after being inverted, and the dust will be removed by vacuum. The rinsing and filling line is suitable for any material of bottles and is especially designed for integrating with an existing conveyor or packaging system.

1. Bottles turn over the device to assist in removing dust.

2. Four filling nozzles to fill four bottles at one time.

3. It can be customized according to different liquids.

Features

1. The quantity of cleaning nozzles can be customized.
2. Bottle Rinsing and Filling Machine Line filters dust and particles by vacuum.

3. Bottle Rinsing and Filling Machine Line’s nozzle spacing and height is adjusted by top hand wheel and screw.

4. Bottles turn over the device to assist in removing dust.

5. A water rinser is also available.

6. Bottle Rinsing and Filling Machine Line is controlled by PLC & HMI: a user-friendly control system.

7. Bottle Rinsing and Filling Machine Line has PVC anti-dust protective cases for hygiene concerns.

8. Bottle Rinsing and Filling Machine Line is suitable for free-flowing liquid filling requirements like water and juice.

9. Controlled by PLC with color touchscreen: filling volume, speed, and interval time can be adjusted directly on HMI.

10. Bottle Rinsing and Filling Machine Line has four filling nozzles to fill four bottles at one time.

11. Bottle Rinsing and Filling Machine Line has fiber optic sensors for container gating.

12. Bottle Rinsing and Filling Machine Line can be customized according to different liquids.

13. Capping speed and timing are adjustable.

14. The height of the capping head can be adjusted by hand wheel.

15. Bottle Rinsing and Filling Machine Line is equipped with a cap missing alarm.

16. Easy changeover modular for capping different sizes of caps.

17. Bottle Rinsing and Filling Machine Line has a heavy-duty cabinet base with casters: easy to move..

18. Bottle Rinsing and Filling Machine Line is made of SUS#304 stainless steel and aluminum alloy for easy maintenance and longevity.

Specification

Bottle Rinser Machine

• Rinsing speed: 20~30 pcs/min (depends on product and label size)
• Air consumption: 5Kg
• Voltage: 110 or 220 VAC

Auto Filler Machine

• Filling speed: 20~40 bpm (depends on product viscosity and bottle size)
• Filling range: 100~1000ml (can be customized)
• Accuracy: ± 1%
• Voltage: 110 or 220 VAC

Automatic Capper Machine

• Driven device: Single-phase brushless motor
• Capping speed: 20~30 pcs/min (depends on bottle and cap size)
• Cap Type: All kinds of screw caps
• Air consumption: 5Kg
• Voltage: 110 or 220 VAC

Option Accessories

• PLC & HMI
• Automatic cap feeder
• Feeding/collecting turntable
• Anti-dust protective case
