- With two labeling heads, it can be slightly adjusted to the labeling angle and position.
- High-stability labeling machines are suitable for multiple products
- According to the special labeling accuracy requirements of the product, the customized fixture reaches a precision of ±0.5mm.
- Top and bottom tamping labeling heads can label in a specific position, fast and precisely.
- A stable system control can operate for long periods.
- According to the product size, simply adjust the labeling head to be commonly used for production.
- Equipped with a color screen panel for clear display and easy operation.
- The screen interface has a counting function, which can clearly display the number of labels and facilitate the calculation of capacity.
- It is of good quality, made of SUS#304 stainless steel and high-quality aluminum alloy.
- Automatic labeling and packaging are efficient and economize on manpower.
- Can be labeled with two labels, no matter whether it’s concave, top, bottom, or the curved bottle for the product.
Features
Specifications
- Speed: 20-40pcs/min
- Labeling width: 10-100mm
- Labeling length: 20-300mm
- Accuracy: ±1mm
- The labeling head is driven by a stepper motor
- Label reel: (ID) 75mm (OD)300mm
- Power requirement: Single phase, 110 or 220 VAC, 50/60Hz
- Machine dimension: (L)2001 mm (W)803mm (H)1700mm
Option Accessories
- Transparent label sensor
- Date coding machine
- Capping machine
- Customized high precision fixture
Description
Description

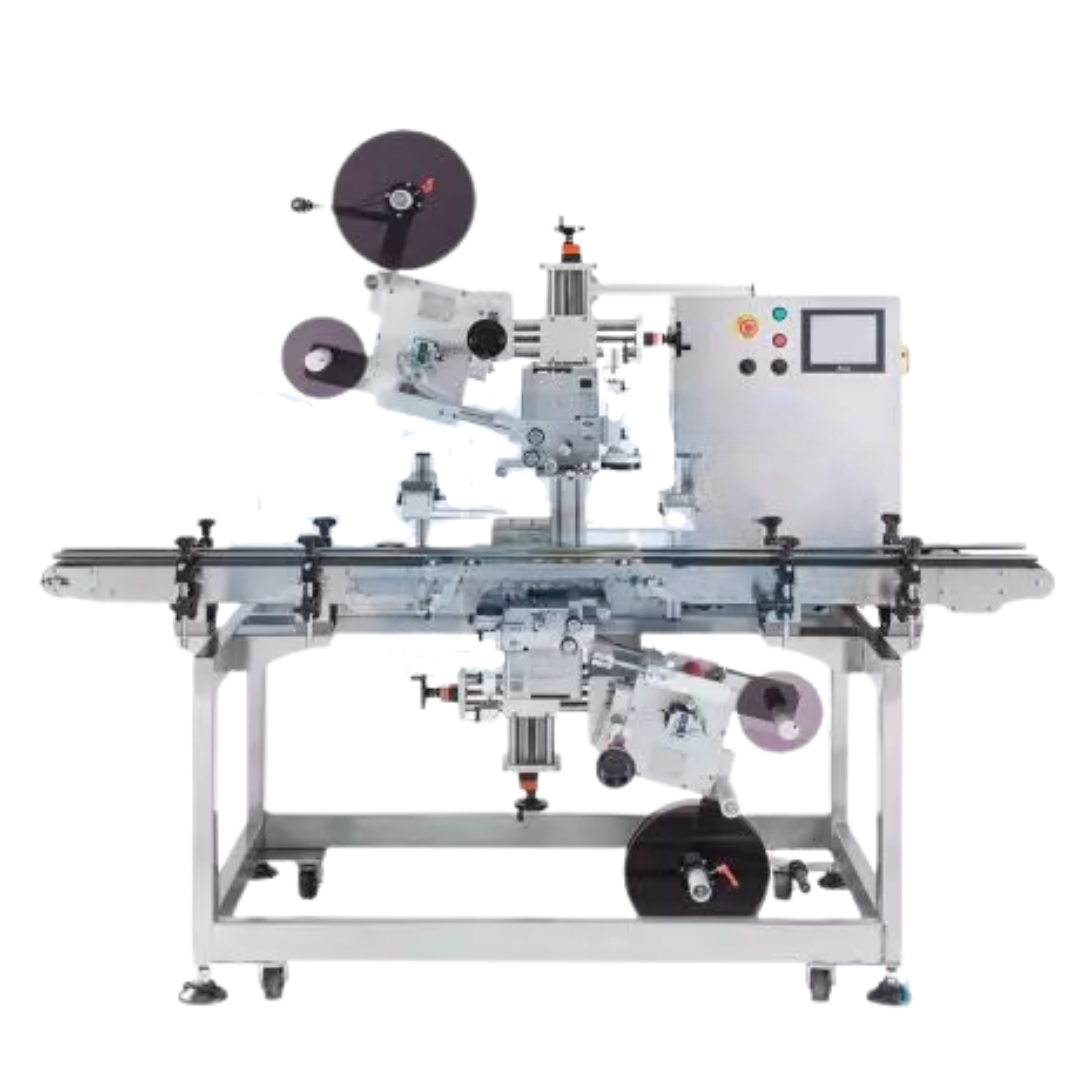

The top and bottom tamp labeler machine is specifically designed for special containers and is used for products that need twice labeling. The labeling head is set up on the top and bottom of the labeler individually to achieve labeling two labels simultaneously. The production efficiency can reach up to five to ten times that of manual labeling.
If your product needs labeling on the top and bottom of the container respectively, and the container and the product itself have the following conditions: with irregular shape, which can’t stand upright on the conveyor belt, slender round bottle, high-precision labeling requirements and labeling parts are non-flat or have grooves or other such types need special labeling machine. However, usually the design of ordinary labeling machines cannot meet your labeling needs, and the labels cannot be labeled perfectly or cannot be smoothed. In this case, you need to purchase a labeling machine with a tamping device to label perfectly on the products.
The Tamp Labeling Machine Can Be Commonly Used For Top And Bottom Labeling, Lateral Labeling, And Bottle Neck Labeling
The top and bottom tamp labeler is suitable for various industries. When it needs to label top and bottom labels at the same time, you just need to place the whole label on the collecting plate of the top and bottom, respectively. After the label is sucked by the labeling head, it can be accurately stuck on the fixed position of the object by the sensors, no matter it’s for flat, concave, or convex products, they all can be easily fitted. Products like salad box, yogurt box, cookie box, cardboard, bottle cap, flat bottle, electronic parts, lipstick bottom, and mascara, etc., all can be labeled precisely and smoothly to meet your labeling requirements. Moreover, we can also design a complete packaging production line for you, all the way from feeding and collecting trays, filling machines, counting machines, capping machines, labeling machines, to receiving machines. Even the small size of the product can be labeled precisely. This kind of tamping labeling machine can be used for food, cosmetics, chemicals, pharmaceuticals, and other products. Just place the product on the conveyor platform, and the labeling machine will automatically help you to put the label in the correct position. Not only does it save the cost of human labeling, but it can also avoid the error caused by manual labeling, which is indeed a high-speed and high-accuracy labeling machine.
