- Compact design, easy to operate, space-saving, and high mobility.
- Duel nozzles, efficient filling.
- Filling volume is adjustable, diversifying the production line.
- Diving nozzles prevent foam from forming and spillage.
- Fill level consistency, an idea of transparent glass bottles filling.
- Tabletop Overflow Filler is suitable for liquids with good liquidity.
- Heavy-duty construction for longevity.
- Overflow liquid back to the tank, avoid waste.
- The bottle height and bottle positioning adjuster make it easy to change bottles.
- Tabletop Overflow Filler is easy to clean without disassembling the whole machine.
- Filling speed and volume are adjustable to meet a variety of production.
- SUS#304 stainless steel and aluminum alloy frame construction.
- One-way valve to keep heads full of product between filling cycles.
Features
Specifications
- Filling range: 5-5000 ml
- Filling speed: 50-250 ml/sec
- Filling accuracy: ±0.5 %
- Power supply: 110/200 VAC, single phase
Option Accessories
- capping machine
- date coding machine
Description
Description

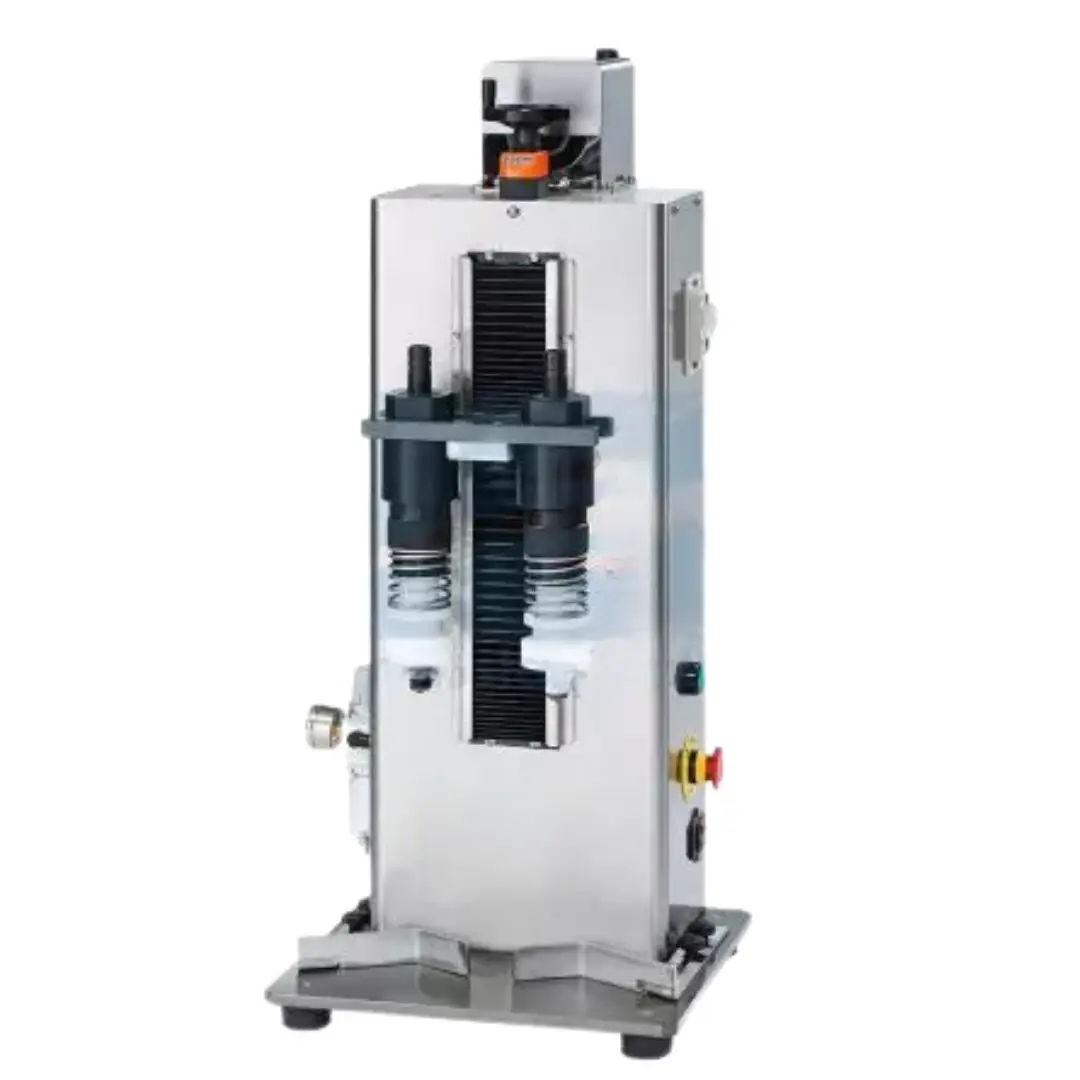

Tabletop overflow filler is best suited for liquids with low to medium viscosity. The desired product to be filled is held in a stainless steel reservoir, then pumped into a manifold to disperse the product to each of your filling nozzles. When the container fills up to the target fill height, the excess product and foam are forced out of the container via the return side to the original product source tank. The unique overflow filling nozzles allow for each bottle or container to be filled to the same level, allowing for an aesthetically pleasing shelf appeal for clear containers.
Tabletop overflow filler is suitable for free-flowing liquids such as water, juice, syrups, alcoholic beverages, shampoos, foamy cleansers and chemicals, and other non-carbonated aqueous beverages. It is especially suited for foamy liquids. High performance, easy to clean, easy to operate, expandable at low cost. Offers the greatest flexibility at the lowest cost.
Tabletop Overflow Filler is manufactured with a heavy-duty 304 stainless steel, tig-welded frame and is available with 2 filler heads. Stainless steel Filling Heads, and Product Supply Pump, plus many more features.
Features
- Compact design, easy to operate, space-saving, and high mobility.
- Duel nozzles, efficient filling.
- Filling volume is adjustable, diversifying the production line.
- Diving nozzles prevent foam from forming and spillage.
- Fill level consistency, an idea of transparent glass bottles filling.
- Tabletop Overflow Filler is suitable for liquids with good liquidity.
- Heavy-duty construction for longevity.
- Overflow liquid back to the tank, avoid waste.
- The bottle height and bottle positioning adjuster make it easy to change bottles.
- Tabletop Overflow Filler is easy to clean without disassembling the whole machine.
- Filling speed and volume are adjustable to meet a variety of production.
- SUS#304 stainless steel and aluminum alloy frame construction.
- One-way valve to keep heads full of product between filling cycles.
Specification
- Filling range: 5-5000 ml
- Filling speed: 50-250 ml/sec
- Filling accuracy: ±0.5 %
- Power supply: 110/200 VAC, single phase
Option Accessories
- capping machine
- date coding machine
