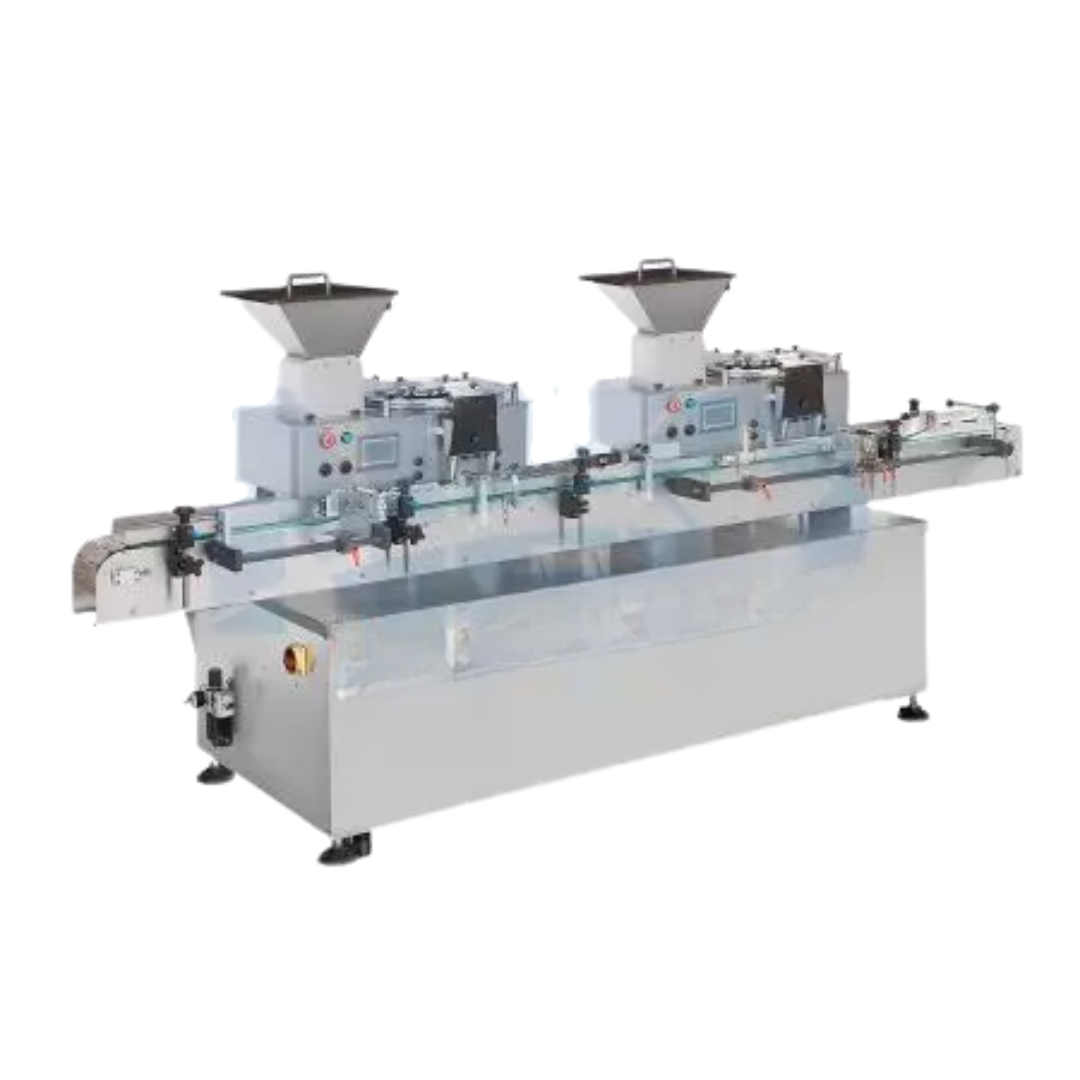

High Speed Automatic Capsule Counter

Description

High Speed Automatic Capsule Counter can calculate precisely tablets, capsules, pills, troches, dragées, and chocolate, etc., of any type and size to fill them into many products. Automatic PLC-controlled comprehensive location, bottle infeed, bottle splitting, counting, and filling lead to efficient manpower.

High Speed Automatic Capsule Counter allows to have 20 sets of parameters for multiple counting productions at the same time.

High Efficiency High Speed Automatic Capsule Counter

We adopt double-rail high-speed automatic counting and double feeding counting machines, and the filling process works constantly and efficiently. The highly sophisticated electrical High Speed Automatic Capsule Counter adjusts and detects via computers, and the change-overs do not need to switch any components to save more time and enhance productivity easily.

For those products with a large amount of dust, we provide dust-collecting devices to solve the problem. The independent CCD systems do not affect the accuracy of counting. The productivity of counting is up to 1600 to 2400 per minute, per the size of the products.

The High Speed Automatic Capsule Counter has photoelectrical sensors that can detect counting errors and remove them. It is the primary choice of counting and packaging facility for many Chinese & Western pharmaceutical, biotech, healthy food, and OEM factories to manufacture efficiently.

Features

1. Automatically splitting, precisely locating, and filling bottles
2. Automatically rotary and double feeding are connected with the production line to enhance the productivity
3. Fast access to 20 sets of parameters to quickly start working and change over
4. High Speed Automatic Capsule Counter fits into different sizes and shapes of hard or soft capsules and tablets, with no need to change modules for change-overs
5. Counting accuracy during production in a highly abundant dust environment will not be affected.
6. High Speed Automatic Capsule Counter has an automatic PLC control, and a human-machine operational interface allows convenient operation.
7. Special anti-dust CCD can be adjusted without affecting accuracy according to the dust for products that easily cause highly abundant dust.
8. High Speed Automatic Capsule Counter has an automatic error detection systems that remove the counting error and save time on checking.
9. High Speed Automatic Capsule Counter has high-standard and sophisticated Japanese photoelectrical sensors that allow zero counting error.
10. High Speed Automatic Capsule Counter has an alarming system that notifies operators after finishing counting.
11. High Speed Automatic Capsule Counter fits into filling, counting, and packaging in different sizes of bottles, and is easy to adjust.
12. Automatically locate, infeed, split up, feed, count, and fill in the same production line
13. Flexibly choose to work with one or two machines according to the production needs
14. Mounted with an automatic bottle splitting system to precisely locate bottles
15. Automatic infeed by conveyors to save time on conveying and manpower
16. High Speed Automatic Capsule Counter has an exclusive dust-collecting device cthat an easily remove dust and powder
17. Micro-computer detection adjusts machines automatically, is easy to maintain, and is user-friendly.
18. Mounted with an excellent PLC program and human-machine interfaces to count quickly and fill stably.
19. The rotary table and the speed can be adjusted in accordance with productivity, and sizes in special diameters can be customized.
20. High Speed Automatic Capsule Counter conforms to cGMP regulations, being solid, durable, and lasting with a long life.

Specification

• Counting speed: 1600-2400 pieces/minute (varied by product kinds and types)
• Sizes of products: 6mm in diameter; more than 3 mm in height
• Accuracy: 100% in a proper speed, ±1 piece for over-speed
• Power: 220VAC, 50/60Hz
• Size of Machine: (L) 2400mm (W) 1000mm (H) 1500mm

Option Accessories

• Transparent anti-dust shell
• Automatic capping machinery production line facility
