Description

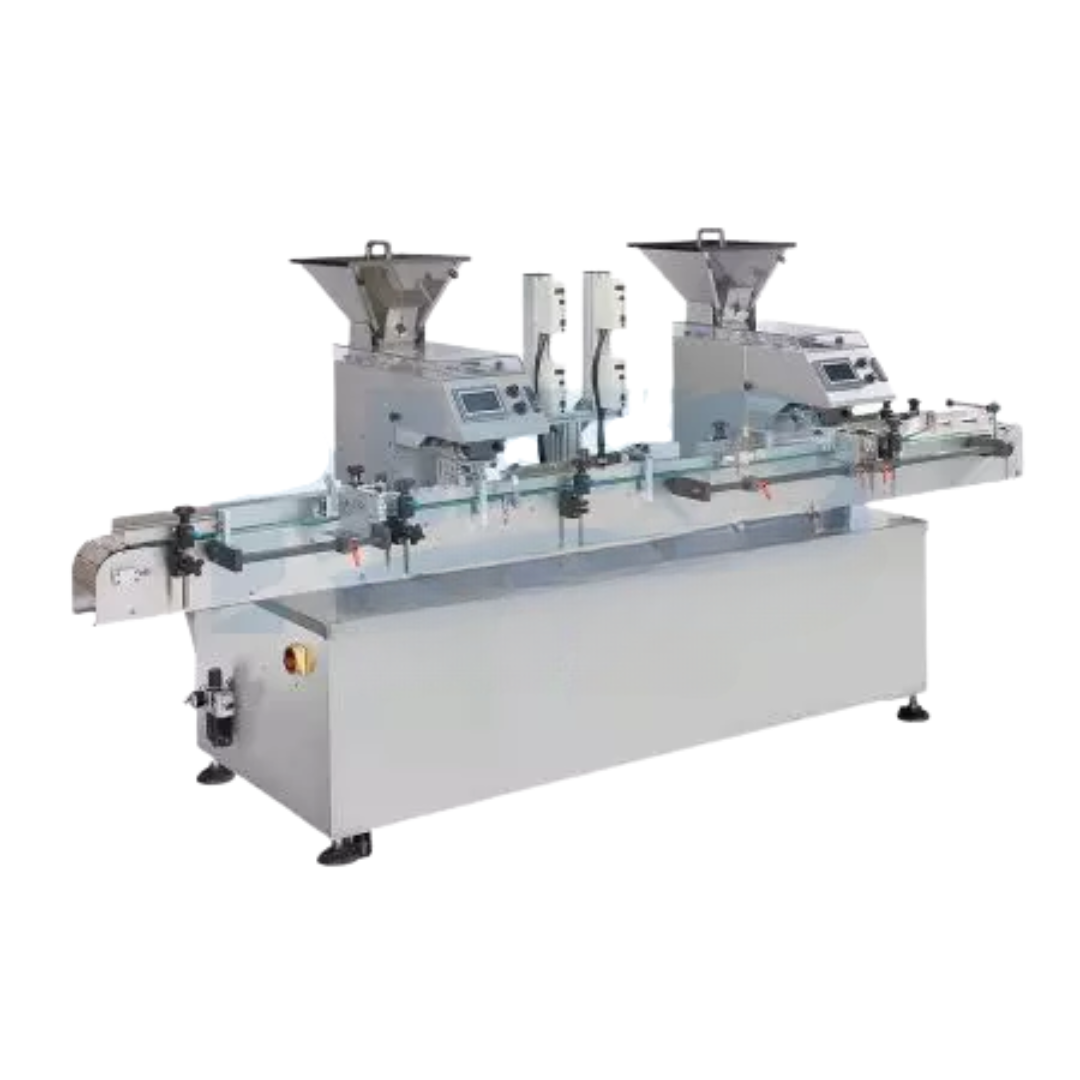

High accuracy tablet/capsule counting machine TM4200 is suitable for irregular shape and regular shape of tablet and capsule counting requirements in bottles and bags. With a PLC user-friendly control system and touchscreen, it is easy to operate without training and adjustments to save downtime and boost productivity.
Features
- Automatic tablet/capsule counting machine with conveyor system, can be connected with other automatic machines easily.
- Anti-dust mode to ensure counting accuracy in an environment full of dust.
- The dual-counting machine can run individually.
- An accurate bottle index system and bottle stopper.
- Equipped with a dust accumulation tray for cleaning dust.
- PLC user-friendly control system and touchscreen for easy operation.
- Memory parameter for fast changeover without reset.
- Advanced sensor detection system for precise counting.
- Any errors will show on the touchscreen to avoid mistakes.
- Made of stainless steel and comply with the CGMP standard.
- Stainless steel foot type with casters for ease of movement.
Specification
- Counting speed: 1200~2000 pcs/min
- Tablet size: height> 2mm, diameter 2~40mm
- Accuracy: 100%
- Power supply: 220VAC, 50/60Hz
- Air pressure requirement: 2CFM at 90 PSI
- Dimension: (L) 2000mm (W)1000mm (H)1500mm
