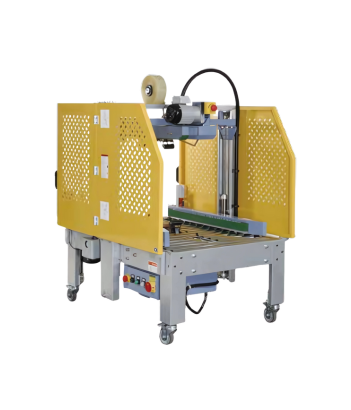

Fully Automatic Top and Side Double Belts Driving Carton Sealing Machine With CE Safety Switch & Covers CXF3CE

Availability: In Stock

SKU: CXF3CE

Specifications


Power Supply 1 Phase 110V/220V/240V
Packing Size Max: L x W500 x H500 mm Min: L150 x W135 x H120mm
Tape Width 50 mm (2”) or 76 mm (3”)
Working Table Height 570-770mm (Adjustable)
Transmit Speed 20M / Mn
Dimensions L1240 x W975 x H1425 mm
Air Compressor 6 kg / cm2


Description

Fully Automatic Top and Side Double Belts Driving Carton Sealing Machine With CE Safety Switch & Covers CXF3CE

  • The top and side double driving belts are suitable for various heavy products.
  • Connected with strapping machines, conveyors, and weight machines to be a complete packing line.
  • Adjust the height and width in accordance with the different sizes of cartons automatically.
  • The side motors and upper taping head are controlled by the cylinder and automatically fix the position of the carton.
  • Fully Automatic Top and Side Double Belts Driving Carton Sealing Machine is equipped with a CE safety switch for CE application.
  • Fully Automatic Top and Side Double Belts Driving Carton Sealing Machine is equipped with 2 sides of safety covers for CE application.

Specifications

Power Supply

1 Phase 110V/220V/240V

Packing Size

Max: L x W500 x H500 mm

Min: L150 x W135 x H120mm

Tape Width

50 mm (2”) or 76 mm (3”)

Working Table Height

570-770mm (Adjustable)

Transmit Speed

20M / Mn

Dimensions

L1240 x W975 x H1425 mm

Air Compressor

6 kg / cm2
