Fully Automatic Strapping System JN-85 PRAPN

Fully Automatic Strapping System JN-85 PRAPN

In Stock

Download Catalog

SKU: JN-85 PRAPN

Categories: Fully Automatic Strapping System JN-85 Series, Strapping Machine

Specifications
Description

Specifications

Specifications

Arch Size	1650W x 600H mm (Standard)
Power Supply	110/220V 50/60hZ 1Ph; 220/380V 50/60Hz 3 Ph;
Strap Width	9- 15.5mm
Sealing Method	Heat Sealing
Cylinder	Inner Diameter: 040
Pressure	5 kg/cm2 (Bar)
Stroke	550mm
Dimensions	2350W x 800D x 2300H mm
Table Height	815mm

Description

Description

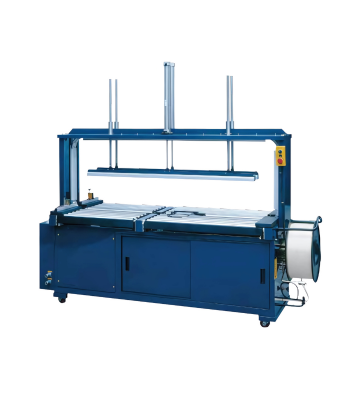

Fully Automatic Strapping System JN-85 PRAPN

Power Roller Table with Light-duty Air pressure

Mono-strapping with air-pressing bar which is suitable for carton/ paperboard or pre-transported forming-case strapping.
The arch size is optional to fit various package sizes.
According to requirements, additional functions such as heavier pressure or delay strapping is available.
Fully Automatic Strapping System JN-85 PRAPN is equipped with a Table Roller Cover.

Specifications

Arch Size	1650W x 600H mm (Standard)
Power Supply	110/220V 50/60hZ 1Ph; 220/380V 50/60Hz 3 Ph;
Strap Width	9- 15.5mm
Sealing Method	Heat Sealing
Cylinder	Inner Diameter: 040
Pressure	5 kg/cm2 (Bar)
Stroke	550mm
Dimensions	2350W x 800D x 2300H mm
Table Height	815mm
