Fully Automatic Strapping System JN-85 LPBU

Fully Automatic Strapping System JN-85 LPBU

In Stock

Download Catalog

SKU: JN-85 LPBU

Categories: Fully Automatic Strapping System JN-85 Series, Strapping Machine

Specifications
Description

Specifications

Specifications

Arch Size	850W x 600H mm (Standard)
Power Supply	110/220V 50/60hZ 1Ph; 220/380V 50/60Hz 3 Ph;
Strap Cycle Speed	2.5 Sec / cycles
Tension Strength	Max. 70kg
Strap Width	9- 15.5mm
Sealing Method	Heat Sealing
Dimensions	1940W x 640D x 1670H mm
Table Height	455mm or 505mm
Machine Weight	307 kgs
Gross Weight	402 kgs
Power Belt Speed	17M/50Hz Per Min.

Description

Description

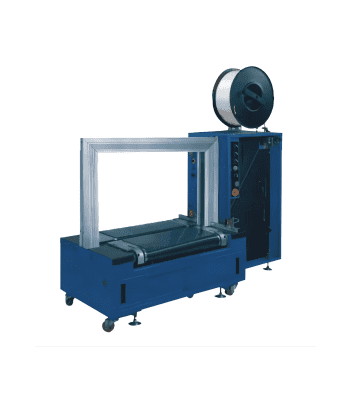

Fully Automatic Strapping System JN-85 LPBU

Low Table Power Belt Model

Low power belt table with standard table height H450 or H500mm. Optional height for incorporating with a conveyor is also available. (Optional)
Fully Automatic Strapping System JN-85 LPBU is equipped with 2 sets of photocells to work with conveyors is available JN-85LPB-2HT.
Refer to JN-85PBU for rest features

Specifications

Arch Size	850W x 600H mm (Standard)
Power Supply	110/220V 50/60hZ 1Ph; 220/380V 50/60Hz 3 Ph;
Strap Cycle Speed	2.5 Sec/cycles
Tension Strength	Max. 70kg
Strap Width	9- 15.5mm
Sealing Method	Heat Sealing
Dimensions	1940W x 640D x 1670H mm
Table Height	455mm or 505mm
Machine Weight	307 kgs
Gross Weight	402 kgs
Power Belt Speed	17M/50Hz Per Min.
