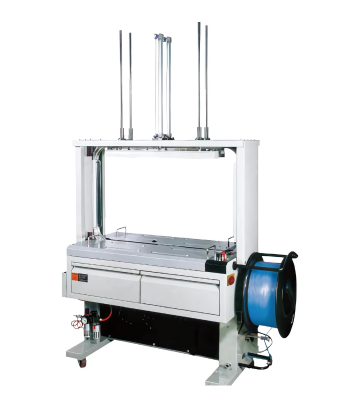

Fully Automatic Strapping System JN-85 APN

Fully Automatic Strapping System JN-85 APN

In Stock

Download Catalog

SKU: JN-85 APN

Categories: Fully Automatic Strapping System JN-85 Series, Strapping Machine

Specifications
Description

Specifications

Specifications

Arch Size	850W x 600H mm (Standard)
Power Supply	110/220V 50/60hZ 1 Phase 220/380V 50/60Hz 3 Phase
Strap Cycle Speed	8 Sec/Cycle
Tension Strength	Max. 70 kgs
Sealing Method	Heat Sealing
Cylinder	Inner Diameter; 040
Pressure	5 kg/cm (Bar)
Stroke	550mm
Dimensions	1450W x 640D x 2140H mm (Standard)
Table Height	810mm
Machine Weight	315 kgs
Gross Weight	432 kgs

Description

Description

Fully Automatic Strapping System JN-85 APN

Light-duty Air-pressure

Mono-strapping with air-pressing bar which is suitable for carton/ paperboard or pre-transported forming-case strapping.
The arch size is optional to fit various package sizes.
According to requirements, Fully Automatic Strapping System JN-85 APN additional functions such as heavier pressure or delay strapping is available

Specifications

Arch Size	850W x 600H mm (Standard)
Power Supply	110/220V 50/60hZ 1 Phase 220/380V 50/60Hz 3 Phase
Strap Cycle Speed	8 Sec/Cycle
Tension Strength	Max. 70 kgs
Sealing Method	Heat Sealing
Cylinder	Inner Diameter; 040
Pressure	5 kg/cm (Bar)
Stroke	550mm
Dimensions	1450W x 640D x 2140H mm (Standard)
Table Height	810mm
Machine Weight	315 kgs
Gross Weight	432 kgs
