Specifications


Strap Cycle Speed 2 sec./cycle
Tension Strength 1.5-60 kg
Table Height 760mm
Strap Width 5-15.5mm
Sealing Method Heat Sealed
Electric Consumption 200W
Power Supply 110/220V 50/60Hz Single phase
Dimensions 860W x 570D x 750H mm
Net Weight 86kg
Max Packing Size


Description

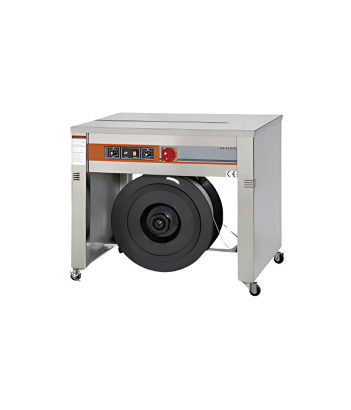

Fully Automatic Strapping Machine NS-3ADMS Medium-Sized Model with Stainless Steel Frame

  • Fully Automatic Strapping Machine NS-3ADMS allows for an easy adjustment of tension on the control panel by setting the electromagnetic Dutch system.
  • Low power consumption on 2-step tensioning and 0.2V seal blade designs allows for a very low Watt/Ampere level.
  • Fully Automatic Strapping Machine NS-3ADMS allows for easy changing of strap design to give a convenient replacement for different thicknesses.
  • Dual tensioning keeps proper bending power on the strap to avoid defective strapping. The first step of the cycle reverses the strap around the package, and the second step applies positive mechanical tension that can be adjusted by a twist of a dial on the panel.
  • Fully Automatic Strapping Machine NS-3ADMS is designed for durable and convenient use and is provided with compact storage. This model highlights a precision performance and trouble-free maintenance with a patent.
  • Silent operation design of this model can be suspended after each strapping cycle; advanced strap feed keeps down the noise, unlike the startup sounds of the old systems.
  • Advanced devices of safety and convenience, such as smoke vent, pneumatic tabletop, one-touch tension roller cleaning, tabletop folded edges, and CE-approved safety switches.

Specifications

Strap Cycle Speed

2 sec./cycle

Tension Strength

1.5-60 kg

Table Height

760mm

Strap Width

5-15.5mm

Sealing Method

Heat Sealed

Electric Consumption

200W

Power Supply

110/220V 50/60Hz Single phase

Dimensions

860W x 570D x 750H mm

Net Weight

86kg

Max Packing Size
