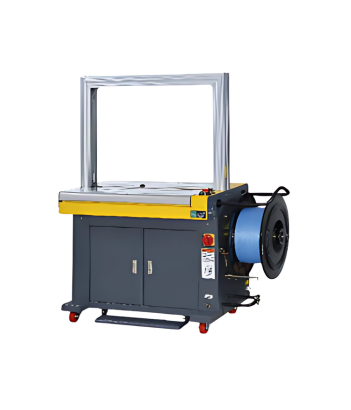

Name: Fully Automatic Strapping Machine M-60AXN
SKU: M-60AXN

Fully Automatic Strapping Machine M-60AXN

In Stock

SKU: M-60AXN

Specifications

Arch Size (WxH)	800 x 600 mm (Aluminium Arch Cover x Standard)
Power Supply	110V/220V/1 Phase 220V380V/415V 3 Phase
Strap Cycle Speed	32-35 Cycles / Min (50 HZ) It depends on the package size and special requirements.
Dimension (WxDxH)	1240 x 625 x 1465
Strap Width	6 - 15 mm (Change kits and adjustment)
Tension Strength	5 - 75 kg
Table Height	795 mm
Available Packing Size (WxH)	100-750 x 30-550 mm
Net Weight	Approx 200 kg
Sealing Method	Heat Sealing

Description

Fully Automatic Strapping Machine M-60AXN has 2 front doors type
Upgrade the AUTO-FEEDING system to upgrade the Auto-Feeding system and the Forwarding & Roversing system. The purpose is to speed up the strapping cycle. Each cycle is accurate and efficient.
JAM-FREE function: auto strap loops ejecting design to solve the strapping problem
Fixed foot pedal switch long side machine
Fully Automatic Strapping Machine M-60AXN is equipped with a patent aluminum alloy arch modular design: it is easy to assemble, disassemble, change size, economical, no arch motor is required (3rd Generation)
Strep cycle can be done by a start switch, table ball switch and foot pedal ber
Lift hype top cover allows convenient maintenance
Iron arch cover (Optional)

Arch Size (WxH)	800 x 600 mm (Aluminium Arch Cover x Standard)
Power Supply	110V/220V/1 Phase 220V380V/415V 3 Phase
Strap Cycle Speed	32-35 Cycles / Min (50 HZ) It depends on the package size and special requirements.
Dimension (WxDxH)	1240 x 625 x 1465
Strap Width	6 – 15 mm (Change kits and adjustment)
Tension Strength	5 – 75 kg
Table Height	795 mm
Available Packing Size (WxH)	100-750 x 30-550 mm
Net Weight	Approx 200 kg
Sealing Method	Heat Sealing
