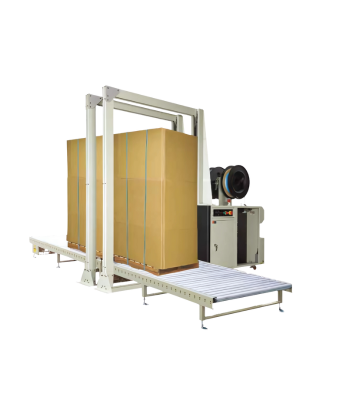

Name: Fully Automatic Strapping Machine JN-85Y UDH with Double Sealing Head
SKU: JN-85Y UDH

Fully Automatic Strapping Machine JN-85Y UDH with Double Sealing Head

In Stock

SKU: JN-85Y UDH

Specifications

Arch Size	1600W x 2800H mm (Iron Cover Arch)
Power Supply	220V/380V/415V 3 Phase
Strap Cycle Speed	22-25 Cycles/Min. (50HZ) (It depends on the package size)
Tension Strength	Max. 70 kg
Dimensions	3125W x 1140D x 2995H mm
Strap Width	15 or 19 mm (Change kits and adjustments)
Sealing Method	Heat Sealing
Max Packing Size

Description

Basic functions are the same as the side sealing machine of JN-85YU Big Arch Model, but are equipped with Double Sealing Heads for customer special requirements.
The machine can be redesigned and installed underground. (Optional)
Fully Automatic Strapping Machine JN-85Y UDH is equipped with free roller conveyors or customer’s power driving (roller) conveyors, etc. (Optional)
Iron Arch Cover and corner stabilizers will be used for this special machine for arch stability and safety reasons.
Dispenser core inner diameter: Ø406 mm (Better)

Arch Size	1600W x 2800H mm (Iron Cover Arch)
Power Supply	220V/380V/415V 3 Phase
Strap Cycle Speed	22-25 Cycles/Min. (50HZ) (It depends on the package size)
Tension Strength	Max. 70 kg
Dimensions	3125W x 1140D x 2995H mm
Strap Width	15 or 19 mm (Change kits and adjustments)
Sealing Method	Heat Sealing
Max Packing Size
