Fully Automatic Strapping MAchine – JN-85 PBTAPN

Fully Automatic Strapping Machine – JN-85 PBTAPN

In Stock

Download Catalog

Categories: Fully Automatic Strapping System JN-85 Series, Strapping Machine

Specifications
Description

Specifications

Specifications

Action Size	1050W x 600H mm (Optional)
Power Supply	110/220V 50/60Hz 1Ph; 220/380V 50/60Hz 3Ph
Strap Width	9 - 15 5mm
Sealing Method	Heat Sealing
Cylinder	Inner Diameter. 040
Pressure	5kg/cm2 (Bar)
Stroke	550mm
Table Height	815mm
Max Packing Size	1000W x 560H mm
Min Packing Size	300W x 100H mm

Description

Description

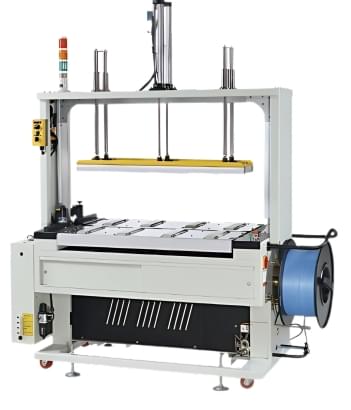

Fully Automatic Strapping Machine – JN-85 PBTAPN

Power Belt Table with Light-Duty Air Pressure

Suitable for bigger carton/paperboard or pre-transported forming-case strapping
Fully Automatic Strapping Machine is equipped with 2 sets of photocell and light-duty air-pressing bar.
Refer to JN-85PRAPN for the rest of the features.
With Red /Yellow ? Green Warming Lamp & Buzzer

Specifications

Action Size	1050W x 600H mm (Optional)
Power Supply	110/220V 50/60Hz 1Ph; 220/380V 50/60Hz 3Ph
Strap Width	9 – 15 5mm
Sealing Method	Heat Sealing
Cylinder	Inner Diameter. 040
Pressure	5kg/cm2 (Bar)
Stroke	550mm
Table Height	815mm
Max Packing Size	1000W x 560H mm
Min Packing Size	300W x 100H mm
