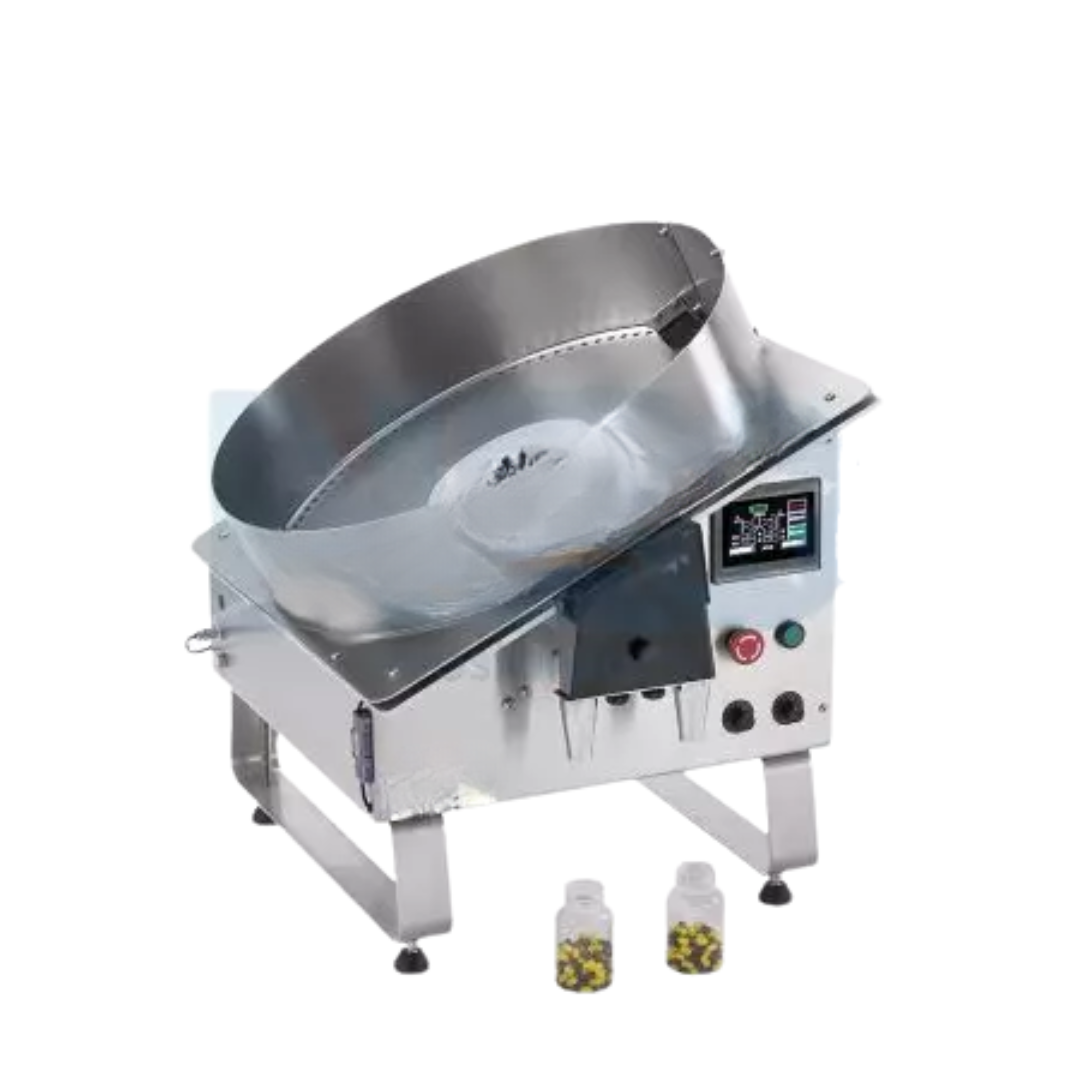

Fixture Rotary Counting Machine

Description

Fixture rotary counting machines are suitable for multiple products to count, fill, and pack. Customized fixture rotary counting machines not only fit in pharmaceutical or food products, but also in the electronic and metal manufacturing industries. Screws, components, metal components, electronic components, buttons, capsules pills and tablets will be precisely counted and filled in to bags or bottles after setting the number of the product. The packaging methods are not restricted by the way of filling bottles, aluminum foil bags, ziplock bags, etc.

High Efficiency Counting Machine

Double-feeding fixture rotary counting machines quickly fill alternately by two infeeds, and the CCD can detect with high precision, actively detecting abnormal situations. Insufficiency or jams will lead the machine to automatically halt. Special material fixture rotary counting machines are appropriate for diverse products, connecting filling machines to become automatic counting and filling machines to save manpower costs.

Features

1. Automatic dust collecting devices to prevent errors in counting.
2. Rotary counting design to run stably and count fast.
3. The time interval is fixed to feed with 100% accuracy.
4. Japanese high-precision CCD to perfectly locate products and count.
5. The counting speed can be adjusted on demand with a range of 600~900 ppm.
6. Coordinate with vibrating feeding machines to substitute manpower, saving labor.
7. Customized production according to specialized products with a wide range of usage.
8. CCDs monitor all the lines, automatically halting instantly if any insufficiency or jams
9. Rotary feeding tank can feed the tablets on demand with a continuously variable.
10. Sophisticated high-speed rotary table allows for feeding 30,000 tablets or capsules at a time, saving time by decreasing resupply times.
11. Fast changeover per the different sizes and shapes of granules easily and swiftly.
12. Human-machine interface with a PLC control program can adjust the speed of counting easily.
13. A two-sided counting system mounted to feed alternately, increasing productivity without halting the operation due to the changeover.
14. The machine body is made of SUS#304 stainless steel and aluminum alloy. It is durable and anti-rust, and conforms to the cGMP standard.

Specification

• Counting speed: 600-900 pieces/min (varied by types and sizes)
• Accuracy: 100%
• Applicable Size: diameter > 3mm, height > 3mm
• Power required: Single-phase 110 or 220 VAC, 50/60 Hz
• Weight: 50 Kg
• Size: (L) 1325mm (W) 930mm, and (H) 1150mm

Option Accessories

• Feeding Machine
• Filling Machine
• Date coding Machine
