- Intelligent machine, an automatic label detection system: When there is no label, the machine will stop automatically. When connecting a packaging machine, stop label signals can be sent to the labeler, depending on actual production needs.
- Easy to operate and get started with: The labeler is equipped with a precision microcomputer touch-tone interface. It can upgrade to a touchscreen PLC system as well.
- Widely used for production: Connect a conveyor, work bench, or other tabletop machines to the front or rear of machines and build an automatic production line for various industries.
- High-quality labeling: LA2000 is equipped with an import sensor, providing precise top labeling quality. And use smooth label components to ensure the finished products are beautiful without wrinkles.
- This machine can ship with a Japanese servo motor that raises labeling speed to 40 meters/min.
- Made of SUS#304 stainless steel and aluminum alloy, and has passed the GMP certification standard
- Convenient hand wheel design: It provides fast adjustment of labeling position.
- Synchronization design: It makes the labeler cooperate with conveyors to ensure the label is fed and pasted in the right spot. (Depends on actual requirement)
- Adjustable label applicator: Able to adjust the position, angle, and height of labeling depending on product size.
- Fixed-base with casters, safe and highly mobile.
Features
Specifications
-
Labeling Motor: Stepper Motor
-
Labeling Speed: 30–60 pcs/min (depending on label size and product)
-
Label Size: Length 10–250 mm; Width 10–100 mm
-
Label Roll: Inner Diameter 75 mm; Outer Diameter 300 mm
-
Machine Size: (L) 680 mm × (W) 520 mm × (H) 1380 mm
-
Accuracy: ±1 mm
-
Power Supply: 110 or 220 VAC, 50/60 Hz
Option Accessories
- Top-pressing unit: suitable for thin products like paper or plastic bags
- Card feeder, Bag feeder, or feeding system
- Transparent label sensor
- Other packaging machines
- Servo motor
- Conveyor
- HMI/ PLC system
- Date coder
- Stainless steel machine frame
More Info
Advantages
Easy to operate and get started with
Detecting products with advanced sensors. Just need to slightly adjust the height and angle of the label applicator before the production.
Production status is always under control, which can improve production efficiency
The labeler machine is equipped with a counting function, and the quantity of labels is automatically displayed on the screen.
With foot-mounting stands, LA2000 can be installed on a production line flexibly
The label applicator can be combined with conveyors, machines, and production lines. The saved space can be used for other purposes.
It’s shipped with an imported sensor that provides fast, accurate, and high-quality labeling
The machine can smooth stickers with the brushes or a sponge roller to make labeling results more refined.
This Labeler can connect with other production lines, conveyors, or machines to build an automatic production line.
e.g., card feeder, date coder, filler, and capper.
Advantages
Chocolate bar, Chocolate box, Nuts, Fudge, Dried fruit, Notebook, Calendar, Aluminum foil bag, DVD Box, Credit Card, Fruit box, Memory card, Coffee bean, Drip coffee, Organic tea bag, Pineapple cake, Nougat cracker, Powder foundation, Cosmetics, Contact lens, Wet wipe, Fragrance booster refill bag, Cotton swab, Gift box, Tin biscuit box, Popcorn, Mulled wine spices mix, Jam, Christmas gift box.
Suitable Container Shape:
Most are suitable for flat products with top labeling, which usually paste labels on the top, side, or bottom of containers, and are used for one-sided labeling.
Suitable Container Material:
Paper, glass, aluminum foil, plastic(PP, PE、PET), metal (iron, aluminum, stainless steel).Paper, glass, aluminum foil, plastic(PP、PE、PET), metal (iron, aluminum, stainless steel).
Suitable Labels:
Ingredient labels, Barcode stickers, Folding stickers, Promotion labels、Laser security labels, Waterproof stickers, Transparent stickers, Nutrition Facts stickers, Fragile Labels, Hot stamping stickers, Security labels, Self-adhesive labels, Pearly labels.
Labeling Style
Automatically attach the stickers on the surface of the flat product while the product passes through the label applicator. A brush or sponge roller can smooth labels perfectly onto the product without wrinkles and bubbles.
Suitable Industries:
Food processing/manufacturing industry, Bakery industry, Pharmaceutical industry, Catering industry, Chemical industry, Technology industry, Machinery manufacturing, Cosmetic industry, Biotechnology industry
Machine Layout:
Description
Description

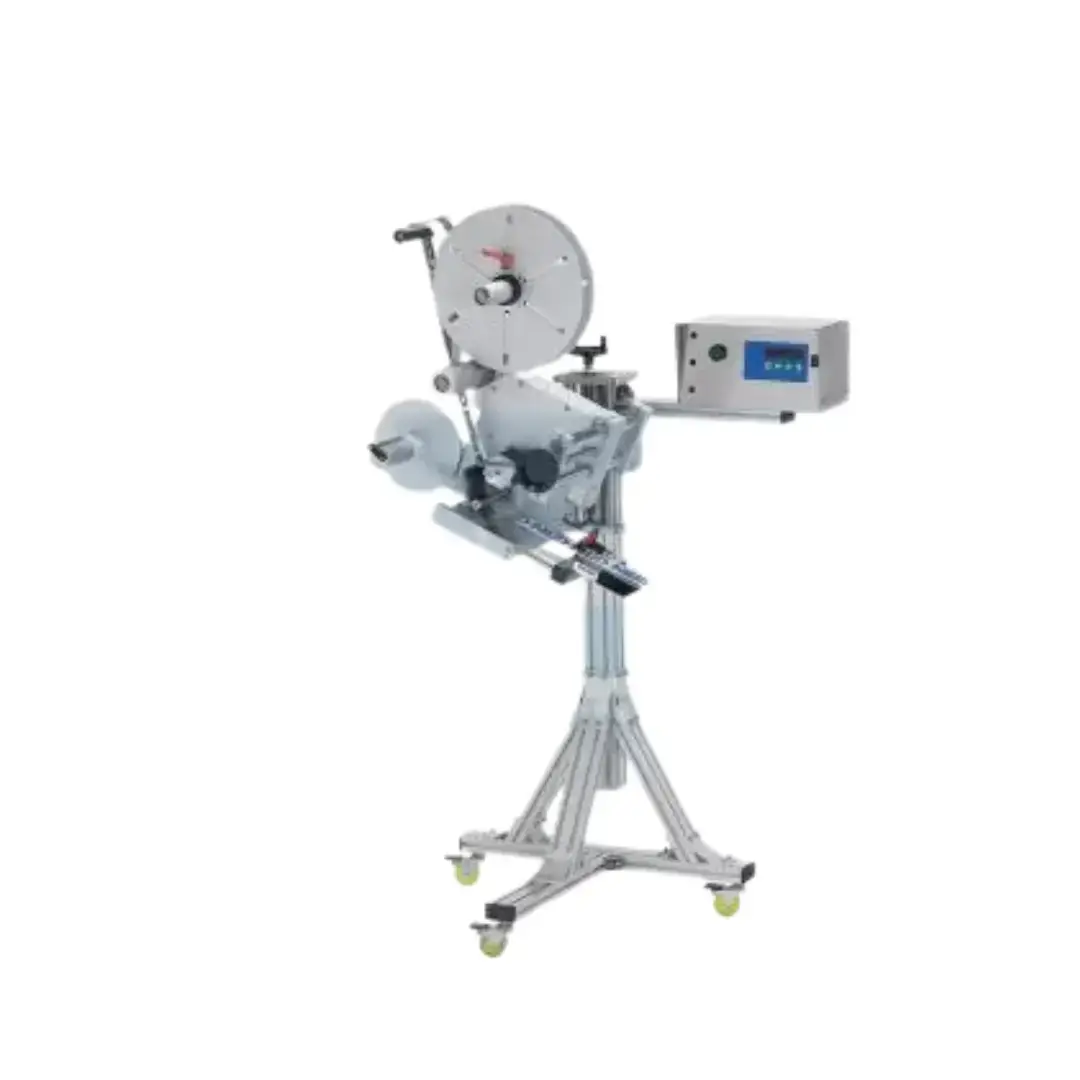

The Automatic Top Labeler is a self-adhesive label labeling machine with flexible and diverse applications. The manufacturer can paste various stickers through the labeler to highlight the product features in different ways.
Labels can also provide product descriptions, embellish packaging, anti-theft functions, and even enhance the value and quality of the product.
Automatic Top Labeler LA2000 attaches stickers on the top, side, or bottom of the product. And it’s not limited to flat pouches; others like tinplate boxes, plastic boxes, boxed snacks, paper boxes, and gift boxes, these common products in our daily life are all applicable.
Space-saving top labeler with stand can easily integrate with a high-speed continuous packaging machine, which allows labeling right after the production. And there is no need to expand an additional labeling station, which helps in saving labor costs and producing with more efficiency.
Automatic Top Labeler detects the label height and angle of products with a sensor, so you just need to slightly adjust the label applicator when operating. The automatic mechanism provides the user with an easier operating interface. Its system maintains steady production, and the labeling result is exquisite.
The Automatic Top Labeler is movable and flexible, with Foot-mounting stands equipped with movable casters.
The biggest difference between LA2000 and other labelers is that this machine is shipped with foot-mounting stands, which can combine with various conveyors, machines, and production lines depending on the needs of the manufacturing side. Therefore, enhance the level of automation and build a smart and fast production line.
In addition, we provide more flexible production line planning, which reserves space for the bracket and pre-drilled mounting holes. According to the increase in future production capacity needs, customers can combine other machines and deploy the commonality of machines.
What’s more, applying the Automatic Top Labeler (LA2000) on different production lines to complete labeling. For example, labeling machines can be customized with an optional packaging machine, date coder, filling machine, or capping machine.
High-efficiency & high-quality labeling
The label applicator machine is equipped with a counting function, which allows producers to immediately take control of current capacity to improve the efficiency of labeling and packaging. The labeling job can be efficient, and its finished product is beautiful and tasteful due to the convenience of labelers. The flat label applicator smooths stickers with the brushes or a sponge roller to ensure stickers are pasted perfectly on products. The label applicator is driven by an automation stepper motor, which can steadily and precisely feed labels, and the labeling height and angle are also adjustable.
Neostarpack has been dedicated to professional manufacturing and development of high-quality and durable labeling machines for many years. The machine can be used individually or connected with other existing packaging machines (filler, counter, and capper) as an automatic production line. Our professional engineering team provides customized labeling and plans according to the features and specifications of the customer’s product. We provide specific installation and instructions (service).
(Available to install brushes or sponge rollers to smooth labels. )
Features
- Intelligent machine, an automatic label detection system: When there is no label, the machine will stop automatically. When connecting a packaging machine, stop label signals can be sent to the labeler, depending on actual production needs.
- Automatic Top Labeler is easy to operate and get started with: The labeler is equipped with a precision microcomputer touch-tone interface. It can upgrade to a touchscreen PLC system as well.
- Widely used for production: Connect a conveyor, work bench, or other tabletop machines to the front or rear of machines and build an automatic production line for various industries.
- High-quality labeling: LA2000 is equipped with an import sensor, providing precise top labeling quality. And use smooth label components to ensure the finished products are beautiful without wrinkles.
- Automatic Top Labeler with Stand can ship with a Japanese servo motor that raises labeling speed to 40 meters/min.
- Automatic Top Labeler is made of SUS#304 stainless steel and aluminum alloy, and has passed the GMP certification standard
- Convenient hand wheel design: It provides fast adjustment of labeling position.
- Synchronization design: It makes the labeler cooperate with conveyors to ensure the label is fed and pasted in the right spot. (Depends on actual requirement)
- Adjustable label applicator: Able to adjust the position, angle, and height of labeling depending on product size.
- Fixed-base with casters, safe and highly mobile.
Specifications
-
Labeling Motor: Stepper Motor
-
Labeling Speed: 30–60 pcs/min (depending on label size and product)
-
Label Size: Length 10–250 mm; Width 10–100 mm
-
Label Roll: Inner Diameter 75 mm; Outer Diameter 300 mm
-
Machine Size: (L) 680 mm × (W) 520 mm × (H) 1380 mm
-
Accuracy: ±1 mm
-
Power Supply: 110 or 220 VAC, 50/60 Hz
