- Labeling height angle is adjustable by X-Y axis and numeric hand wheel. .
- Labeling speed is fixed.
- No parameter setting is needed for the changeover.
- No training is needed to start up.
- A customized magazine is fabricated for feeding products automatically.
- The alignment device will align products automatically right after discharging.
- Controlled by a user-friendly Microprocessor control system.
- Compact design and cabinet with coasters for ease of movement
- Rugged anodized aluminum and Stainless Steel construction.
Features
Specifications
- Speed: 40~80 pcs/ min (depends on containers and labels size)
- Accuracy: ± 0.2mm
- Label size: (W) 5~100mm / (L) 5~250mm
- Label reel: Inner diameter 75mm / Outer Diameter <300mm
- Supply power: 110V or 220VAC, single phase
Option Accessories
- Transparent label sensor
- Date coder
Description
Description

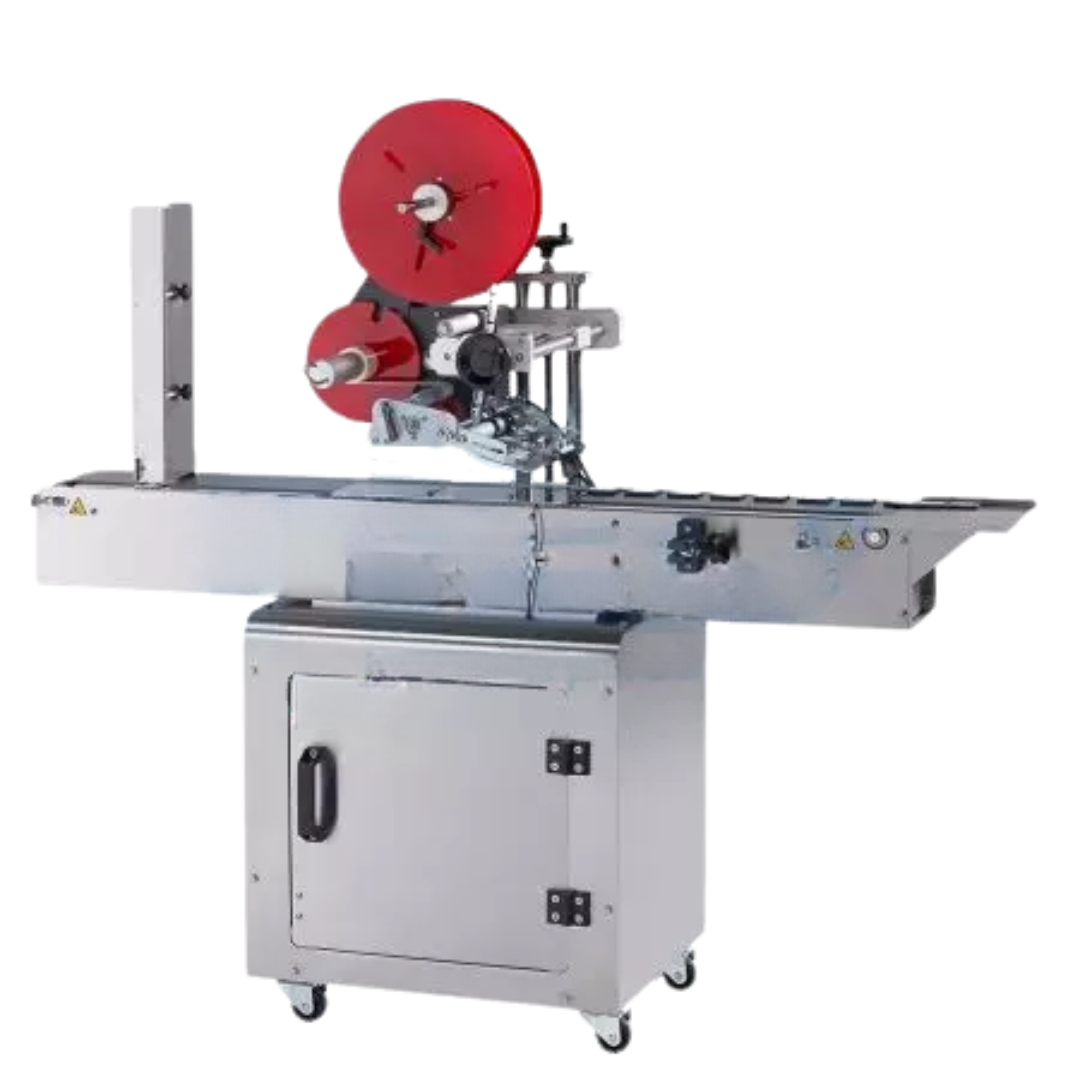

The top labeler for SD cards, LT210SD, is built for SD cards and tiny flat products. The customized magazine can save manpower and boost production greatly. With the self-correction function, products will be labeled right after discharge without adjusting.
