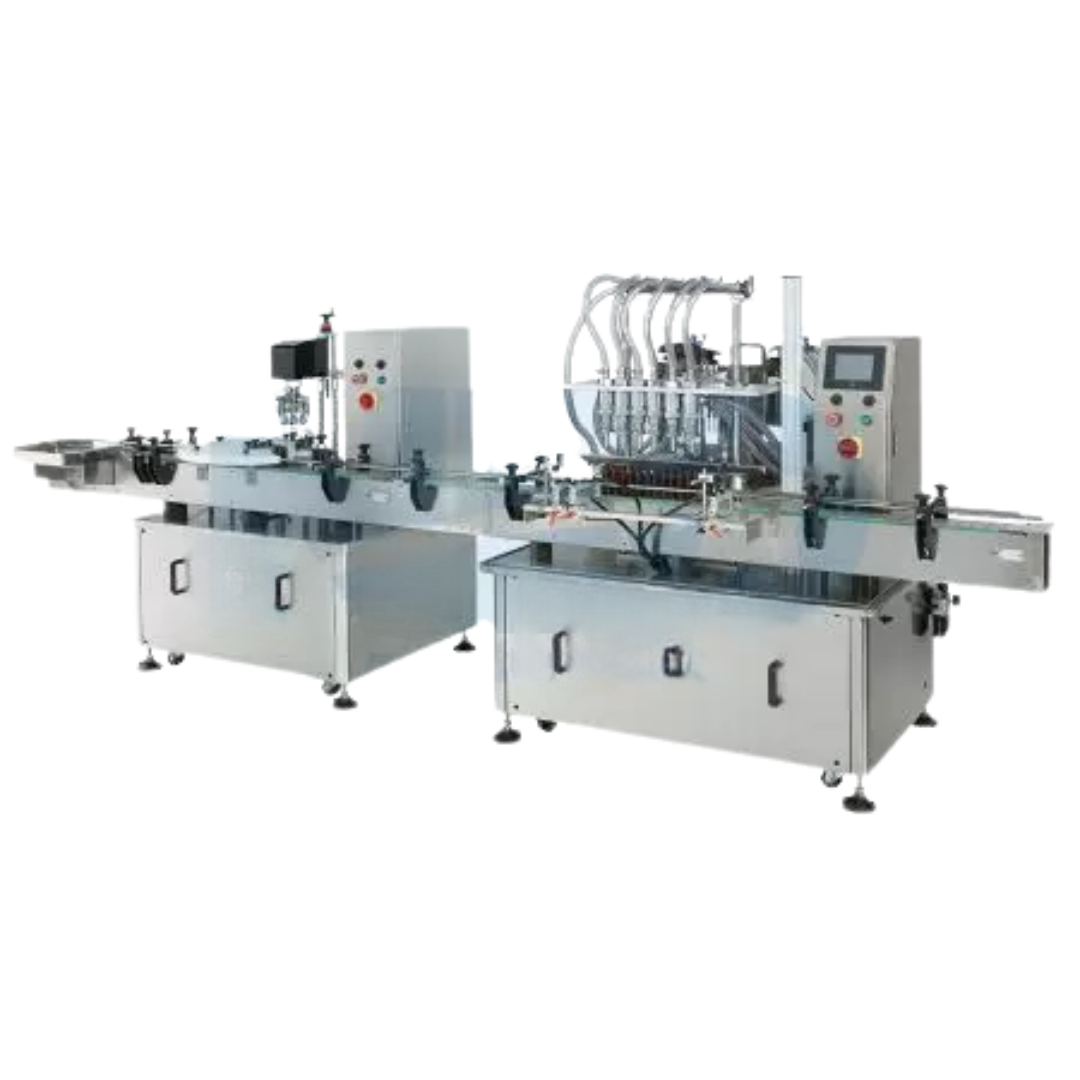

Automatic Overflow Filling and ROPP Cap Capping Production Line

Description

Automatic Overflow Filling and ROPP Cap Capping Production Line is widely applied in the food, beverage, and pharmaceutical industries. A labeling machine can also be connected with the 6-nozzle overflow filler & the ROPP cap capper to increase productivity to save more labor costs.

1. Excess liquid or foam will overflow back to the reservoir.

2. Lower cost choice of filler with effective productivity.

3. Easy operation with a user-friendly control interface.

Features

1. Lower cost choice of filler with effective productivity.

2. Automatic Overflow Filling and ROPP Cap Capping Production Line has an overflow filling system: No different liquid level problem.

3. Automatic Overflow Filling and ROPP Cap Capping Production Line is best suitable for filling foamy products at higher speeds.

4. Automatic Overflow Filling and ROPP Cap Capping Production Line can be customized for flammable or corrosive liquid.

5. Excess liquid or foam will overflow back to the reservoir.

6. Automatic Overflow Filling and ROPP Cap Capping Production Line has an anti-dripping tray, which keeps the machine clean.

7. All Automatic Overflow Filling and ROPP Cap Capping Production Line’s liquid contacting parts are made of stainless steel or sanitary materials.

8. Automatic Overflow Filling and ROPP Cap Capping Production Line’s customized design for capping aluminum ROPP caps.

9. Easy changeover modular for capping different sizes of caps.

10. Capping speed, pressure, and torque are adjustable by knobs.

11. Automatic Overflow Filling and ROPP Cap Capping Production Line is equipped with an emergency button for safety concerns.

12. Automatic Overflow Filling and ROPP Cap Capping Production Line’s capping height can be adjusted simply by hand wheel.

13. Easy operation with a user-friendly control interface.

14. Automatic Overflow Filling and ROPP Cap Capping Production Line has a heavy-duty cabinet base with casters, easy to move.

15. Automatic Overflow Filling and ROPP Cap Capping Production Line is made of SUS#304 stainless steel and aluminum alloy for easy maintenance and longevity.

Specification

Liquid Filling Machine

• No. of nozzles: 6 nozzles (can be customized to 4, 8, or 12 nozzles)
• Filling speed: 25~40 bpm (depends on product viscosity and bottle size)
• Filling range: 100~4000ml (can be customized)
• Accuracy: ± 1%
• Voltage: 110 or 220 VAC

Capper Machine

• Driven device: Single-phase brushless motor
• Capping speed: 30~40 pcs/min (depends on bottle and cap size)
• Cap type: Aluminum caps
• Air consumption: 5Kg
• Voltage: 110 or 220 VAC

Option Accessories

• PLC & HMI
• Automatic cap feeder
• Feeding/collecting turntable
• Anti-dust protective case
