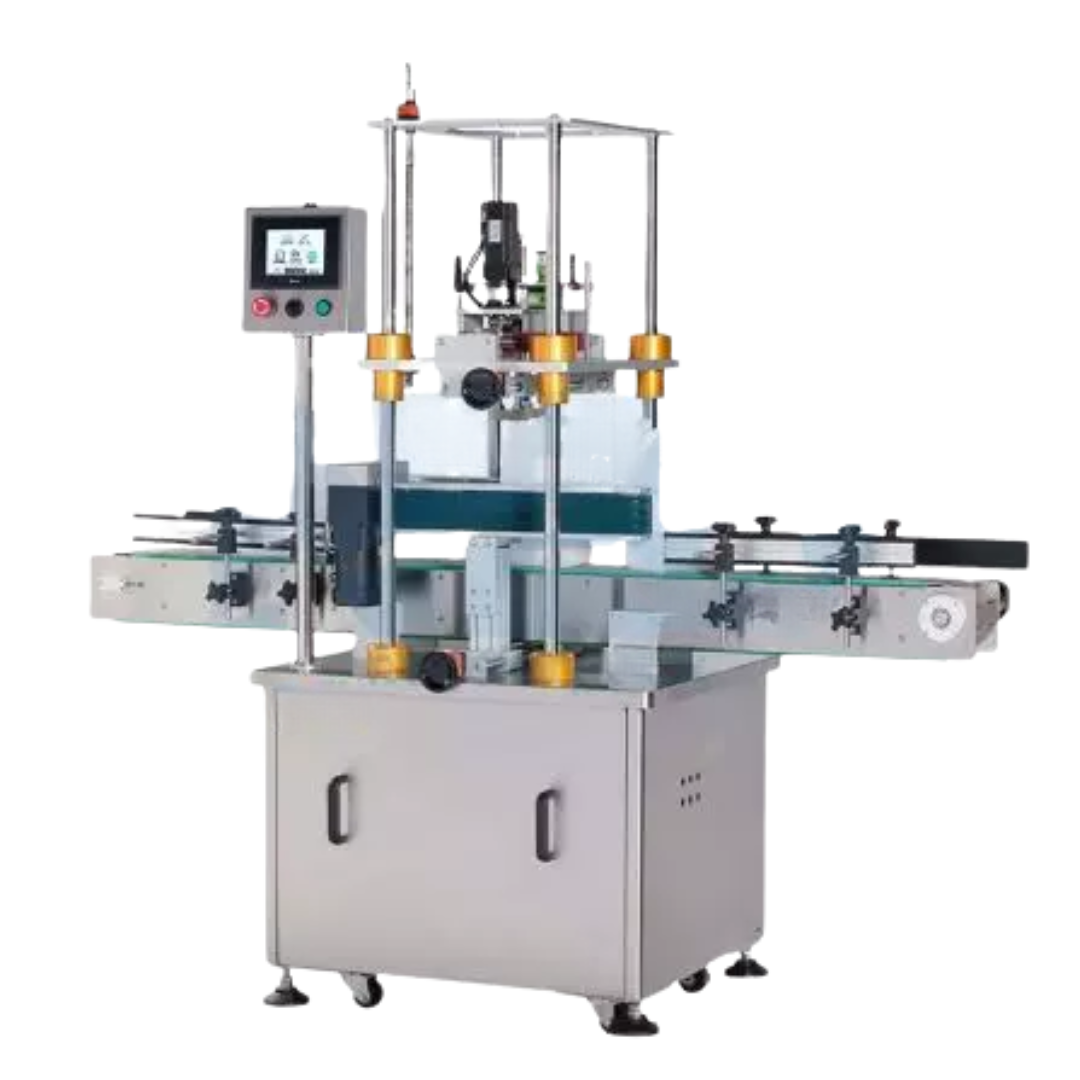

Automatic Dual Servo Motor Capper

Description

Automatic Dual Servo Motor Capper can be easily adjusted with the capping head to meet different capping requirements. With a universal torque capping controlling system, there is no need to change the capping head to apply widely to various sizes of caps and bottles in round shape, square shape, or other containers.

According to the characteristics of different products, capping speed and other settings can be adjusted quickly and simply to meet various production needs, and the dual servo driving system can also enable the machine to cap accurately with high efficiency.

Features

1. Automatic Dual Servo Motor Capper has a smart PLC system with a high-quality color touchscreen, which makes it easy to set and operate.
2. Automatic Dual Servo Motor Capper is equipped with dual servo motors for highly accurate capping at high speeds.
3. Automatic Dual Servo Motor Capper has a precise, high torque design for high capping quality with proper tightness to prevent overcapping.
4. The height of the Automatic Dual Servo Motor Capper’s capping head can be adjusted by hand wheel to fit various bottles and caps.
5. Torque adjustment by dual servo capping device to ensure perfect tightness to keep containers without damage.
6. Automatic Dual Servo Motor Capper is equipped with a protection device to prevent motors from overloading and burning out.
7. Universal use of the capping head for various caps with a precise buffer device to ensure the completeness of the containers and the caps.
8. High technological servo driving device makes accurate positioning and stops functioning while overloading to protect both the products and the machine automatically.
9. Saved settings with parameters for fast changeover for immediate production.
10. Automatic Dual Servo Motor Capper has a digital-controlled cap feeding chute for smooth cap feeding and precise positioning without displacement.
11. Automatic Dual Servo Motor Capper has an inline capping system that can be connected with an existing production line to promote production efficiency.
12. Advanced rigid PVC conveyor chain for durable and stable conveying.
13. Automatic Dual Servo Motor Capper has an automatic production measuring and presetting system for the machine to stop operating when the preset production is reached to promote management efficiency.
14. Adopt precise Japanese sensors: while detecting a bottle jam, the machine will stop operating automatically; when the jam is relieved, the machine will also start functioning again automatically.
15. Automatic Dual Servo Motor Capper has a protection device for safety concerns for the operator(s).
16. Automatic Dual Servo Motor Capper is made of stainless steel for the base unit with a strong structure design, also to increase storage space at the same time.
17. Automatic Dual Servo Motor Capper is made of SUS#304 stainless steel and aluminum alloy for frame construction to comply with cGMP standard for easy maintenance and longevity.

Specification

• Applicable bottles and caps: widely applicable with various bottles and caps
• Applicable caps: 30~60mm (outer diameter)
• Capping speed: 30 bottles/min
• Compressed air requirement: 2~5 kg
• Power supply: 220 VAC; 50/60 Hz; Single phase
• Dimensions: (L) 1700 mm (W) 1200 mm (H) 1700 mm
• Weight: 500 Kg

Option Accessories

• Bottle loading device
• Automatic bottle feeding turntable
• Different types of capping heads
• Other types of chute
• Multi-capping heads
