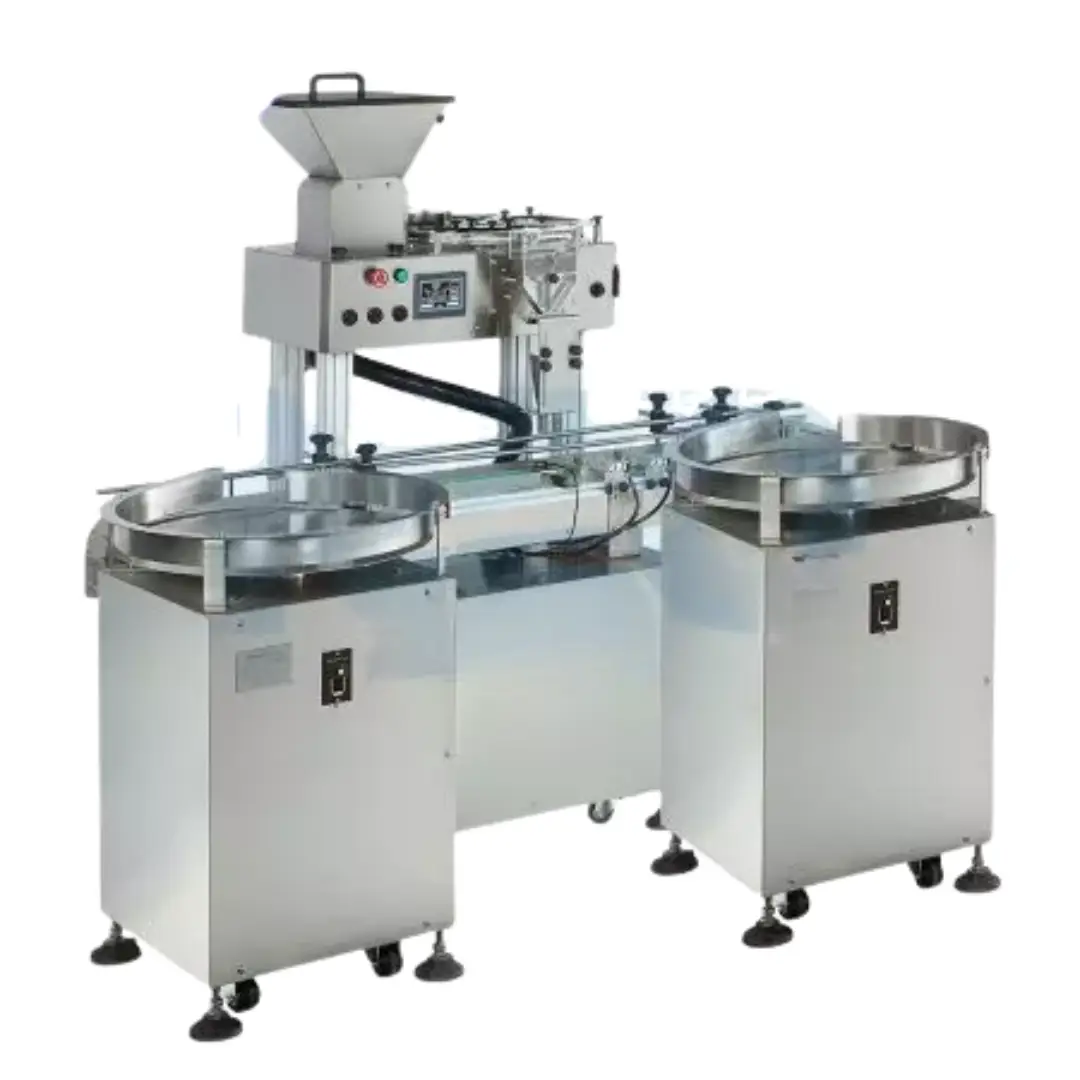

Automatic Capsule Tablet Counting Machine Line

Description

Automatic capsule counting machine equipped with an automatic bottle-feeding turntable that transports the bottles to the counting machine and outfeed turntable through a conveyor, reducing the repetitive workforce on placing and picking the bottles manually. Different from its tabletop, single machine version, the turntable made this production line more efficient. Compact design makes it suitable for limited space and easy to change over for different products. Suitable for extensive fields of industry, including pharmaceutical, food, chemistry, and cosmetics. Applications include bottled gums, vitamins, pills, capsules, tablets, fish oil, candy, etc.

Space / Manpower-Saving Compact Design Automatic Counting Machine Line

This tablet counter has high accuracy, and either vibration speed or counting quantity is adjustable depending on your needs. Furthermore, to meet your requirement, the bottle infeed / outfeed speed of the turntables is adjustable. The size of the star wheel is also customizable. All parts that contact your product are made of stainless #316, which meets the high standards of the pharmaceutical industry. Capping machine, sealing machine, and round bottle labeler are also available to upgrade your fully automatic production line.

Features

1. Automatic counting line equipped with infeed / outfeed turntable. Saving your time and manpower.
2. Easy to maintain; simple to clean.
3. Multiple parameter settings are adjustable: Quantity of bottle/ capsule, Goal amount of bottle/ capsule.
4. The automatic counting recorder lets you see the exact bottle/ capsule counting number.
5. Moveable design for equipment rearrangement/ expansion to a fully automatic counting, filling production line.
6. Adjustable conveyor speed, product infeed/outfeed speed, and counting speed.
7. A PLC programmed HMI system with a colored touch screen and a clear display allows convenient operation.
8. Fit for counting coated capsules, pills, tablets, and particles.
9. Dust accumulating device for smooth, efficient, and accurate counting
10. Meet cGMP requirements. Product contacting parts are made of materials meeting pharmaceutical standards.
11. With humanized mechanical design, there are no tools needed for product changeover.
12. High-accuracy counting machine is environmentally friendly, and no production consumables are needed.

Specification

• Counting speed: 500-1000 pieces/minute (varied by types and sizes)
• Voltage: 110/220 VAC, 50/60 Hz
• Bottle size: diameter: 48 mm ~ 100 mm/height: 116 mm
• Capsule size: diameter > 6 mm, height > 3 mm
• Tablet size: 2 mm ~ 30 mm
• Accuracy: ± 1 tablet
• Dimension: (L) 2500 mm (W) 1800 mm (H) 1300 mm
• Net weight: 450 kg
• Spare parts: handwheel, screw, power cable, dust accumulating box, vibration plate, nozzle

Option Accessories

• Capping machine
• Sealing machine
• Round bottle labeling machine
• Coding machine
