- Spindle wraparound module design, high labeling precision
- Configure the width of different labels
- The human-machine interface can save 20 sets of production parameters, which can be read with one key, without the need to recalibrate the same label, which speeds up the production conversion time.
- Actively detects label breaks or runs out of labels, and will stop production on its own to maintain the quality of complete products.
- Equipped with a colored HMI display touch screen, it is easy to input production parameters when operating the machine, which is simple and easy to operate.
- Unique digital labeling parameter design, which can be fine-adjusted to meet the needs of different labeling positions.
- An intelligent troubleshooting system to guide the operator to solve the difficulties of the labeling process step by step
- Automatic labeling counter, real-time monitoring of production capacity status through the touch panel.
- Smart memory function, the last parameter is automatically provided when the machine is turned on, and production can be launched immediately without setting it again after the machine is turned on.
- The labeling speed and product conveying speed can be adjusted to improve labeling efficiency.
- The labeling position and angle of the product can be fine-adjusted directly on the labeling applicator
- Automatic bottle spacer module to keep the distance fixed between bottles to make labeling smoother
- PLC is equipped with a touch human-machine interface, any malfunction information will be provided in real-time.
- It can be produced as a single machine or collocated with other machines into the automatic production line.
- The encoder tracks the production speed synchronously, maintains a constant production rate, and monitors the production capacity in real time.
- The photoelectric sensor automatically detects and locates the product to adjust the labeling position more easily.
- Accurate positioning and speed control of the stepping motor to achieve high precision and high stability labeling.
- Automatic guidance mechanism, which automatically channels the product to prevent the production line from being blocked, and the label can be accurately labeled to the preset position
- The low-friction conveyor belt transports products stably and does not damage the products.
- An optional high-grade conveyor belt, in line with MCC food hygiene standards.
- The machine is made of SUS#304 stainless steel and high-level aluminum alloy, which conforms to GMP standards and is easy to maintain
- A wide range of applicable products, convenient for customers who have multiple products, and for simple operation for product replacement.
- The labeling machine is manufactured in Taiwan from design to manufacturing. The quality and service are perfect.
- Japanese-made sensor synchronously and automatically detects positioning to achieve high-precision labeling.
- The label length is simple to set, just input the required length, no need to use tools to adjust.
- Optional from step motor or servo motor to meet the production requirement, to increase production efficiency.
Features
Specifications
- Automation level: fully automated
- Machine motor: stepper motor or servo motor
- Labeling speed: 15~30 pieces/minute (according to label size)
- Labeling accuracy: +/-0.5~1mm (according to the product)
- Bottle size: (D) 16-90mm (H) 30-160mm
- Label size: (W) 10-100mm (L) 20-250mm
- Label roll size: (ID) 75mm (OD) 280mm
- Product size: (W) 10-100mm (L) 20-250mm
- Power supply requirements: 110 or 220VAC, 50/60Hz, single phase
- Machine specifications: (L) 2090mm, (W) 1230mm, (H) 1350mm
- *Specifications may vary depending on configuration; detailed specifications are subject to actual shipment.
Option Accessories
- Date coder
- Transparent label sensor
- Bottle spacer module to ensure the equidistant transportation of products
- High-level servo motor
- Advanced functions of HMI human-machine interface: permission setting, production history, etc.
- Infeed and outfeed turntable (motor-driven)
- Customized lengthened conveyor belt
- Partial can be designed according to the special specification from customers, to a customized, unique labeling machine
Description
Description

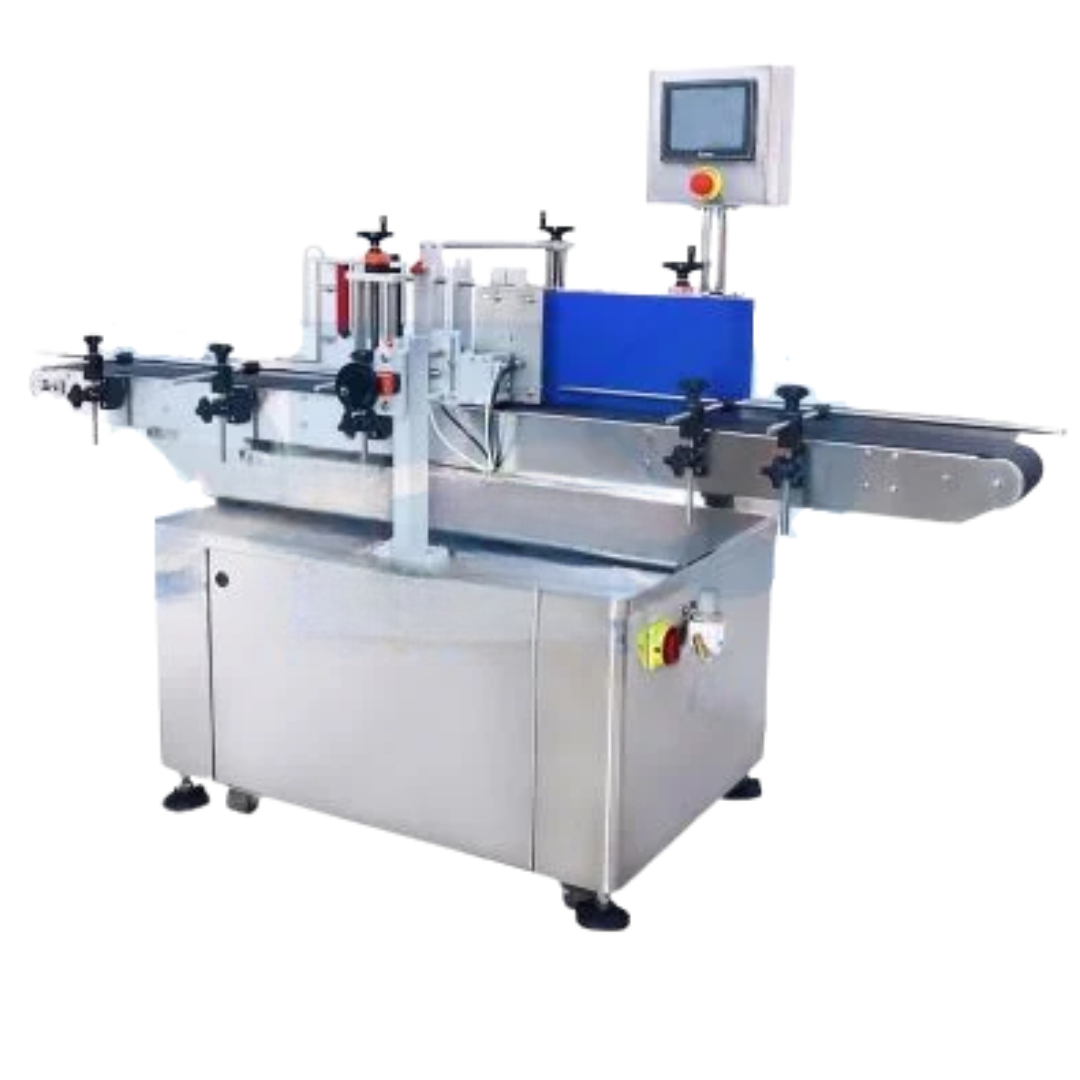

The spindle wraparound bottle labeling machine LR4350 is suitable for all industries that need to label round bottle containers. The spindle wraparound labeling machine uses the method of rolling and rotating the container to stick the label tightly on the container as the bottle moves forward.
The spindle wraparound bottle labeling machine is suitable for various sizes and materials of bottles. The labeling machine is suitable for label that needs to surround the bottle product more than half a circle. The labeling method meets the need for products that require full or large surface area labeling. LR4350 has a unique labeling mode that has high stability during product conveying and no deviation when the product is labeled, which provides high-precision labeling products.
Spindle Wraparound model provides better multi-usability and stability
The round bottle labeling machine is popular in the market, and the LR4350 labeling machine is equipped with a pneumatic spindle wrapping unit. When labeling, the spindle roller will set the product at a fixed point and rotate to make the label adhere firmly, and it can be applied to bottles with a variety of sizes and materials, such as plastic bottles, glass bottles, metal bottles, and paper containers. Spindle roller round bottle labeling machine LR4350 can wrap a large and long label around the circumference of the container, which can completely covering the entire circumference of the container. Besides round bottles and cylindrical products, it can also label products with a small radius. Meanwhile, repeat labeling is a customized option for products such as beer bottles or anything that has two labels to label. The spindle wraparound labeling machine series provides highly flexible customized options, which can be configured for various label and container sizes to meet precise labeling. Other than using alone, the spindle wraparound labeling machine can also be collocated with a printer, automatic bottle feeding machine, outfeed turntable, and packaging machine equipment into the existing production line.
Product Advantages
- Suitable for longer and larger labels up to 100mm in width and 250mm in height
- Labels can cover up to a full circle of the container
- Provide high-precision labeling
- Independent speed adjustment for all label sizes between 15 ~ 30 bottles per minute
- Apply a variety of round containers and label sizes
Application & Advantage
Suitable container shape
Round bottles and cylindrical products.
Container material
Plastic, glass, metal, and paper products.
Application products
Beer bottles, wine bottles, medicine cans, inhalers, eye drops, nutritional supplement bottles, essential oil bottles, cosmetics, jams, canned cereals, condiment containers, sauce bottles, all kind of cans, printer ink, gallon bottles, household cleaning products, shampoo, water filter element, motor oil, etc.
Industry
Pharmaceutical industry, food and beverage industry, chemical industry, biotechnology industry, cosmetics manufacturing industry, groceries industry, technology industry, etc.
Label types
Self-adhesive labels, anti-counterfeit labels, tamper-evident labels, instruction labels, laser labels, computer labels, fragile labels, medicine bottle labels, beer labels, wine bottle labels, transparent labels (requires transparent label electric eye)
Labeling range
Round and cylindrical container surface area is pasted in a wrap-around method, the label all wraps around the bottle container a full circle, 3/4 circle, 1/2 circle, or any part of the bottle.
Labeling method
Spindle wraparound labeling.
