Specifications


Power Supply 1 Phase 110V/220V/240V
Packing Size Max: L x W500 x H500 mm Min: L150XW170XH100mm
Tape Width 50 mm (2”) or 76 mm (3”)
Working Table Height 570-770mm (Adjustable)
Sealing Capacity 20 Cartons per minute (Carton: L500 mm, Power: 60 HZ)
Dimensions L1023 X W900 X H1375 mm (without optional extensive working table)
Net Weight 165kg


Description

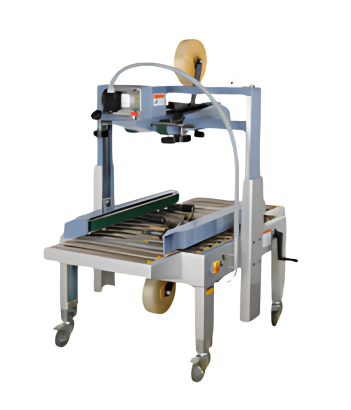

Semi-automatic Top and Side Double Belts Driving Carton Sealing Machine  CX3

  • Semi-automatic Top and Side Double Belts Driving Carton Sealing Machine  CX3 is equipped with top and side double-belts can transport both heavy and light cartons and keeps sealing on the center of cartons.
  • Suitable for various carton sizes for adhesive tape sealing, with a compact design can be used in many different working spaces.
  • Simplified operating devices can easily fit different shapes of cartons and seal two tapes on top and bottom at one time.
  • Durable and stable driven belts can provide operators with working ease when proceeding continued sealing applications.
  • Could be worked with other auto packaging equipment among the process such as auto strapping machinery with sensors.
  • By using advanced peak type cutting blades can easily cut off adhesive tape not to jagged or tear to shred.
  • Optional extensive working tables can integrate various packaging equipments working on a packing line



Specifications



Power Supply 1 Phase 110V/220V/240V
Packing Size Max: L x W500 x H500 mm

Min: L150XW170XH100mm

Tape Width 50 mm (2”) or 76 mm (3”)
Working Table Height 570-770mm (Adjustable)
Sealing Capacity 20 Cartons per minute
(Carton: L500 mm, Power: 60 HZ)
Dimensions L1023 X W900 X H1375 mm
(without optional extensive working table)
Net Weight 165kg
