Quick3PL LLC

Specifications


Strap Cycle Speed 1.5 Sec/Cycle
Tension Strength 15-60 kgs/Max.
Table Height 735mm
Strap Width 6- 15mm
Sealing Method Heat Sealing
Min. Package Size 60mm
Power Supply 110/220v 50/60Hz single phase
Dimensions 895W x 570D x 735H mm (Standard)
Machine Weight 95 kgs
Gross Weight 120 kgs


Description

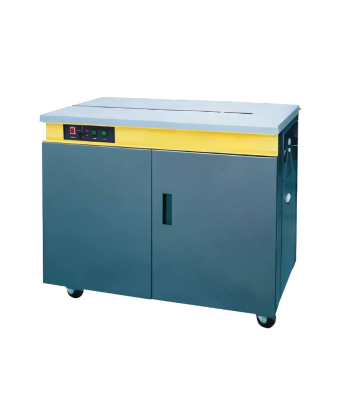

Semi-Automatic Strapping Machine JN- 740DH

  • Front door opening design makes loading and unloading dispensers more convenient.
  • Semi-Automatic Strapping Machine JN- 740DH provides instant heating in 20 seconds.
  • Economical design of control switch, independent PCB controls feeding, tensioning and heating.
  • External adjustable tension knob provides simple operation (optional).
  • Energy saving mode activates within 15 seconds of non-use and allows for instant operation.
  • Innovatory die-cast seal blade eliminates blade distortion, short circuiting and rapid aging that are common in many conventional strapping machines.
  • Easier changeover of straps suitable for 6~15mm strap width through strap guide.

Specifications

Strap Cycle Speed

1.5 Sec/Cycle

Tension Strength

15-60 kgs/Max.

Table Height

735mm

Strap Width

6- 15mm

Sealing Method

Heat Sealing

Min. Package Size

60mm

Power Supply

110/220v 50/60Hz single phase

Dimensions

895W x 570D x 735H mm (Standard)

Machine Weight

95 kgs

Gross Weight

120 kgs
