Quick3PL LLC

Specifications


Strap Cycle Speed 1.5 Sec/Cycle
Tension Strength 65 kgs/Max.
Table Height 730mm
Strap Width 6- 15mm
Sealing Method Heat Sealing
Min. Package Size 60mm
Power Supply 110/220v 50/60Hz single phase
Dimensions 895W x 570D x 730H mm (Standard)
Machine Weight 100 kgs
Gross Weight 120 kgs


Description

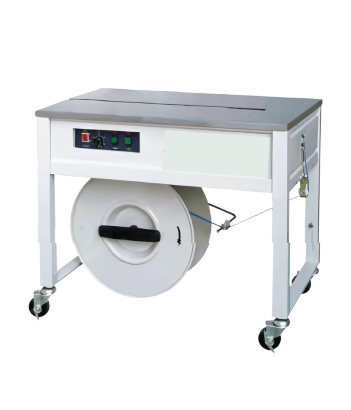

Semi-Automatic Strapping Machine JN- 600



  • Semi-Automatic Strapping Machine JN- 600 is designed for easy operation.
  • Energy saving mode activates within 15 seconds of non-use and allows for instant operation.
  • Lift type top cover allows convenient maintenance.
  • External adjustable tension knob provides simple operation (optional).
  • Easier changeover of straps suitable for 6~15mm strap width through strap guides.
  • Internal power of DC 24V eliminates shock and prolongs machine life.
  • Optional installation for different needs:
  • Stainless steel frame is available for strapping humid



  1. Exchange of brake wheels available.
  2. 730~830mm height adjustable.

Specifications



Strap Cycle Speed 1.5 Sec/Cycle
Tension Strength 65 kgs/Max.
Table Height 730mm
Strap Width 6- 15mm
Sealing Method Heat Sealing
Min. Package Size 60mm
Power Supply 110/220v 50/60Hz single phase
Dimensions 895W x 570D x 730H mm (Standard)
Machine Weight 100 kgs
Gross Weight 120 kgs
