- Compliant with the pharmaceutical industry's labeling method for sealed bottles
- Two types of labeling methods can be produced independently or in line production.
- Good flexibility, labels can be applied to different sizes of bottles for a wide range of applications
- Adjustable guide rail to guide the product to the labeling machine without adjusting tools, simplifying the production line
- Speed encoder to control the speed of the label and conveyor belt, so that the product labels are adhered to the same position
- Comply with the pharmaceutical labeling requirements to ensure the security and safety of anti-tampering labels
- Combine many special components to enable the labeling machine to apply labels on the bottle and the top simultaneously
- Adopt the most advanced and user-friendly microprocessor control and sensing system
- L-shaped angle labeling + round bottle labeling machine, can apply two labels at one time
- Synchronize Conveyor, labeling, and folding unit speed
- Can be integrated with the date coding system on the production line
- Suitable for partial circumference, full circumference, and overlapping round bottles labeling
- When the labeling machine is connected to the production line, it will alert and stop labeling when it's out of labels.
- Optional: When the visual inspection system checks the product for mislabeling and misprinting, it will reject the bottle from the production line
- Optional: a visual inspection system to check codes on products
- L-shaped and C-shaped labels are produced through special folding equipment.
- Flexible options for additional in and out feeding turntable or integration with other automated equipment
- Can change the position of the guide rail according to the container size
- Adjust the parameter setting according to the product labeling demand, easy to operate
- The labeling applicator and convey guide rail are adjustable, which can apply to multi-size bottles and labels, and can be adjusted quickly without tools
- Any user can easily replace labels in 3 minutes.
- Suitable for a variety of small-scale production modes, reducing production line changeover and downtime
- Special sealed labeling mode that meets the protocol and high precision of the pharmaceutical and food industries
- The labeling machine is designed according to the standard module, which can quickly customize and improve the performance of the machine.
- The main structure of the machine is designed to be simple and durable, made of high-quality stainless steel and hardened aluminum alloy.
- High precision fiber optic sensor for high accuracy
- Advanced stepper motor, stable operation, and low noise.
Features
Specifications
-
Automatic level: Full-automatic
-
Motor: Step motor or optional servo motor
-
Labeling speed: 20 ~ 60 pcs/min (depending on label and product size)
-
Labeling accuracy: ±1 mm
-
Label size: (W) 10–100 mm, (L) 20–250 mm
-
Label roll: (ID) 75 mm, (OD) 280 mm
-
Product size: (W) 10–100 mm, (L) 20–250 mm
-
Power requirement: 110 or 220 VAC, 50/60 Hz, single phase
-
Machine dimension: (L) 3219 mm × (W) 1288 mm × (H) 1541 mm
Option Accessories
- Date coder
- Automated Optical Inspection
- Production line product rejection system
- Transparent label sensor
- Bottle spacer module to ensure equal distance products
- Advanced Motion Controls: Servo Drives and Controls
- HMI human-machine interface
- Customized special machine size for production space
- The machine frame can be upgraded to include a case body
- Infeed turntable and outfeed turntable
- Machine safety cover
Description
Description
The round bottle labeling machine seems to be simple, but it is not easy to carry out labeling in two different directions at the same time in actual production. Do you need a unique labeling machine that can apply labels in two different directions? This innovative labeling machine solves the need for both round bottle labeling and L-shaped angle labeling by combining two modes into one machine, allowing round bottles and jars to be labeled in two different directions at once, saving your time and money.

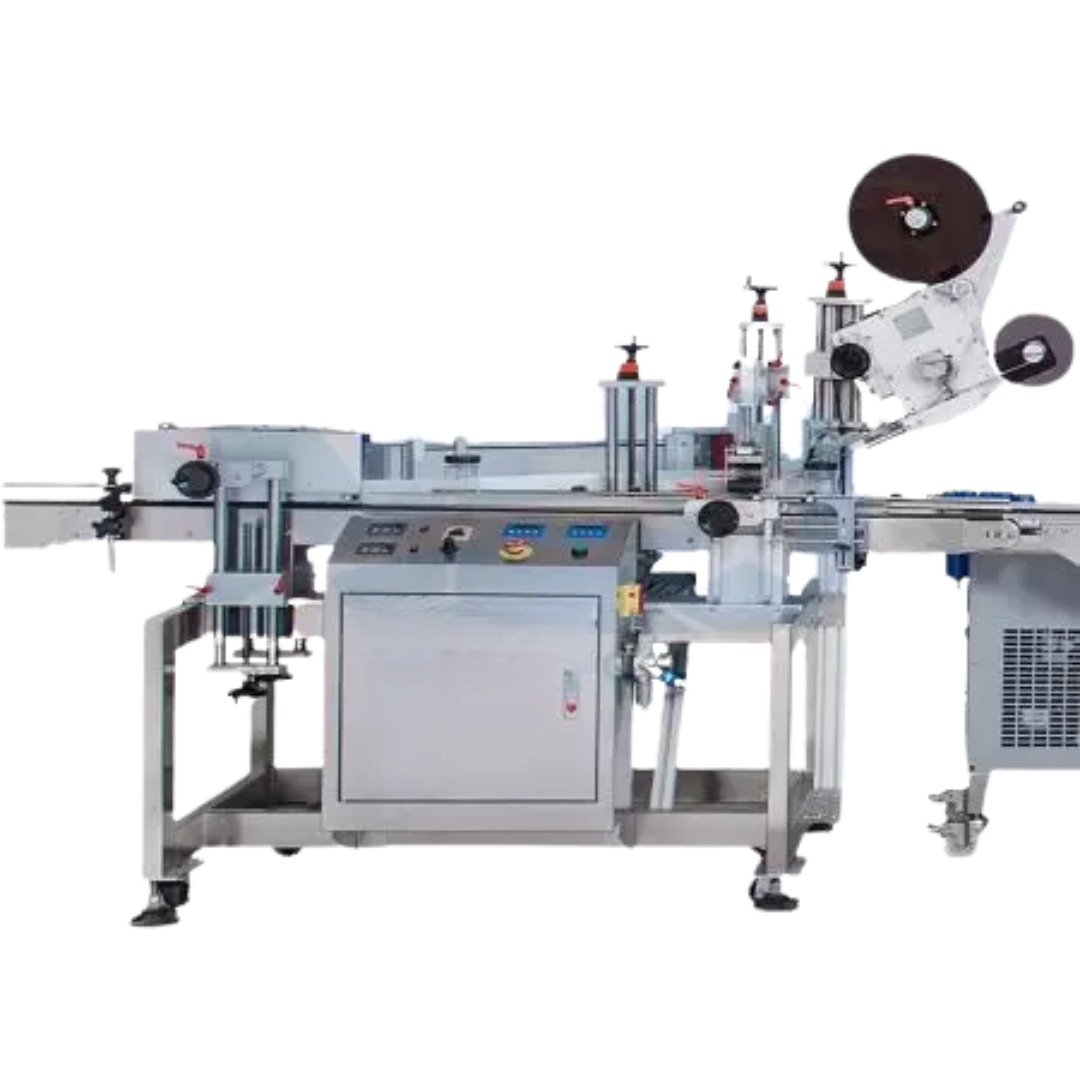

LTR3000 is a type of labeling machine that combines L-shaped and round bottle labeling. The process of attaching labels to the top and body of the bottle is that, when the bottle is placed on the conveyor belt, aligning through the guide rail, the top labeler and label folder will act through sensor sensing to apply label on top and fold the label to L-shape, through other guide rail, the product will then be convey to round bottle labeling unit that will label the body labels through wrapping the bottles. This means your product does not need to change the labeling machine between top labeling and side labeling. Meanwhile, it is a high-precision labeling method that can achieve beauty and prevent tampering of the package in one step. It can satisfy products that need to be labeled on both the round body and the top, and is often used for pharmaceutical labels, dietary supplements, and food packaging, such as health food, pharmaceuticals, jams, honey, meat sauce, seasoning sauce, nut jars, candy jars, etc.
L-shaped angle labeling and round bottle labeling machine save your time and money
Another advantage of the L-shaped angle labeling and round bottle labeling machine is that it can accommodate various round bottles, and multiple products can use the same machine. This means that it takes up less space on the production line and provides more space for larger production areas. The two labeling modes, round bottle and L-shaped angle labeling, are combined to label at once, increasing output and reducing the time required to change labeling equipment. At the same time, both modes can be labeled separately if needed. L-shaped labels are often the best choice for pharmaceutical or medical and food industry’s round bottles, and are aesthetically pleasing and tamper-resistant. Tamper-resistant labels are not only used on food products, but can also meet pharmaceutical labeling requirements. For pharmaceutical companies, special tamper-resistant labels can provide a reliable seal to ensure quality and safety, and can also be used as security seal labels. The labels are made of highly specialized chemical materials and will result in an irreversible condition when torn off.
We not only manufacture standard labeling machines, but also provide fully customized and configured labeling machine systems to meet the needs of various products and facilities. From the design and system control of each project, to the creation of excellence and professional craftsmanship at all levels, each of our labeling machines can provide unique features to meet the special packaging needs of customers for different products and special label materials, we provide producers with advanced labeling systems to increase production output and ameliorate the labeling process.
Product Advantages
- Meet the needs of health food and pharmaceutical products with a high risk of tampering
- Combining two labeling methods into one
- Save time on multi-directional labeling of bottles and jars
- Simultaneous labeling on the side and top
- Round and L-shaped angle labels can be applied independently or simultaneously
Application & Advantage
Application products
The top and side of the whole bottles and jars that require a label. For example: pharmaceuticals, health food, jam jars, honey jars, sauce jars, nut jars, candy jars, biscuit jars, sealed products, tamper-proof products, and high precision electronic products.
Applicable container shapes
Round bottles, cylindrical products, and products that require L-shaped labeling.
Applicable Capacity materials
Glass, plastic, metal, paper.
Label types
Self-adhesive label, security label, void label, tamper-evident label, film label, sealing label, hologram label, tamper-evident label, holographic security label, non-residue security labels, QR code labels, laser anti-counterfeit label, or transparent label (required transparent label electric eye).
Labeling method
Top of bottles with L-shaped 90-degree angle label folded, round and cylinder container surface with wrap-around labeling, label around the bottle container with a full circle, 3/4 circle, 1/2 circle, or part of the circle.
Industry
Pharmaceutical industry, food industry, biotechnology industry, beauty manufacturing industry, high precision product technology industry, etc.
