Impact Classified Mill ICM Series
Features
Treatment： Grinder
Material Properties： Oily, Non-Oily
Fineness：40mesh ~ 1250mesh
Capacity：50kg ~ 300kg
Production Methods： Turnkey
Introduction
This ICM is made up of a special grind disc and a classifier. According to the characteristics of the materials offer the best solution to meet the need of fineness and efficiently grind.
The adjustment of the fineness is with a non-screen air-classifier, and a water cooling jacket on the grinding chamber or cool air feeding to keep the machine and materials from overheating and retain the product’s quality and the machine’s lifetime. Particle size can be modified by the classifier speed and input air volume to control the required particle size.
Impact Classified Mill ICM Series ICM Series
- Good for extremely fine materials
- Fineness: 40 ~ 1250Mesh. (data is for reference only & may vary according to raw material)
ICM has new concept hammers that generate a powerful grinding effect and achieve better efficiency and fineness than other grinders.
The speed of the integrated air classifying rotor can be changed for. Flexible control of product fineness and stable quality products.
Easier Machine Maintenance and cleaning, and all driving parts are protected by an enclosed common base for safety.
This ICM(Screen-less)pulverizer functions on the concept of impact grinding force from its high-speed rotor to generate strong percussion with a fixed liner to produce ultra-fine particle size. With a speed variable classifier, the particle size is freely controlled by the user, and the coarse powder is continuously ground until it meets the required parameters.

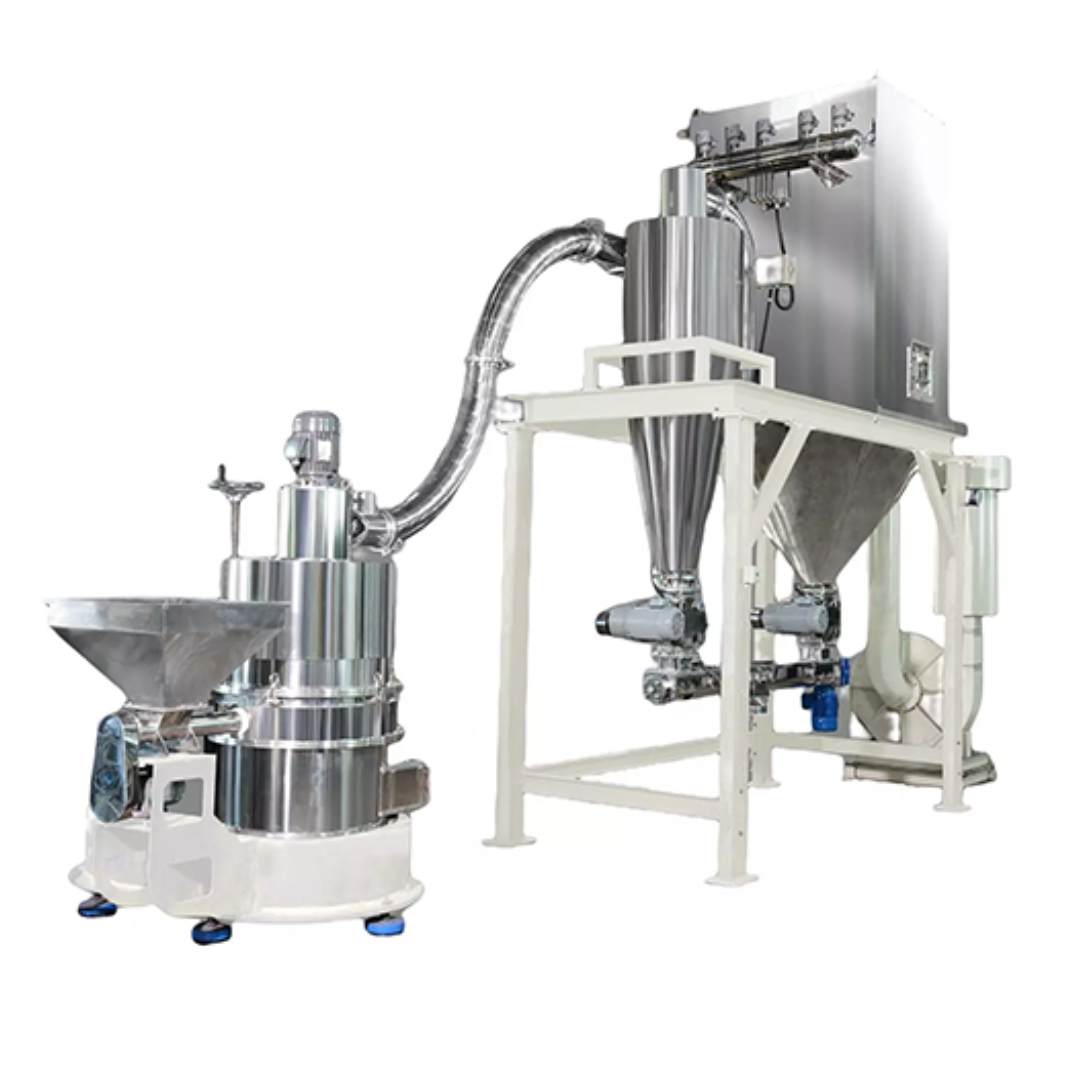

In addition to Impact Classified Mill ICM Series’s working principle, the ICM pulverizer is also available with a Cyclone Separator(Rotary Valve)and a Dust Collector. Finally, to keep the material neat also ventilated, and for constant production, the mill chamber is surrounded with a cooling water jacket to maintain the inner temperature at a certain degree to keep the material’s original fragrance and color.
