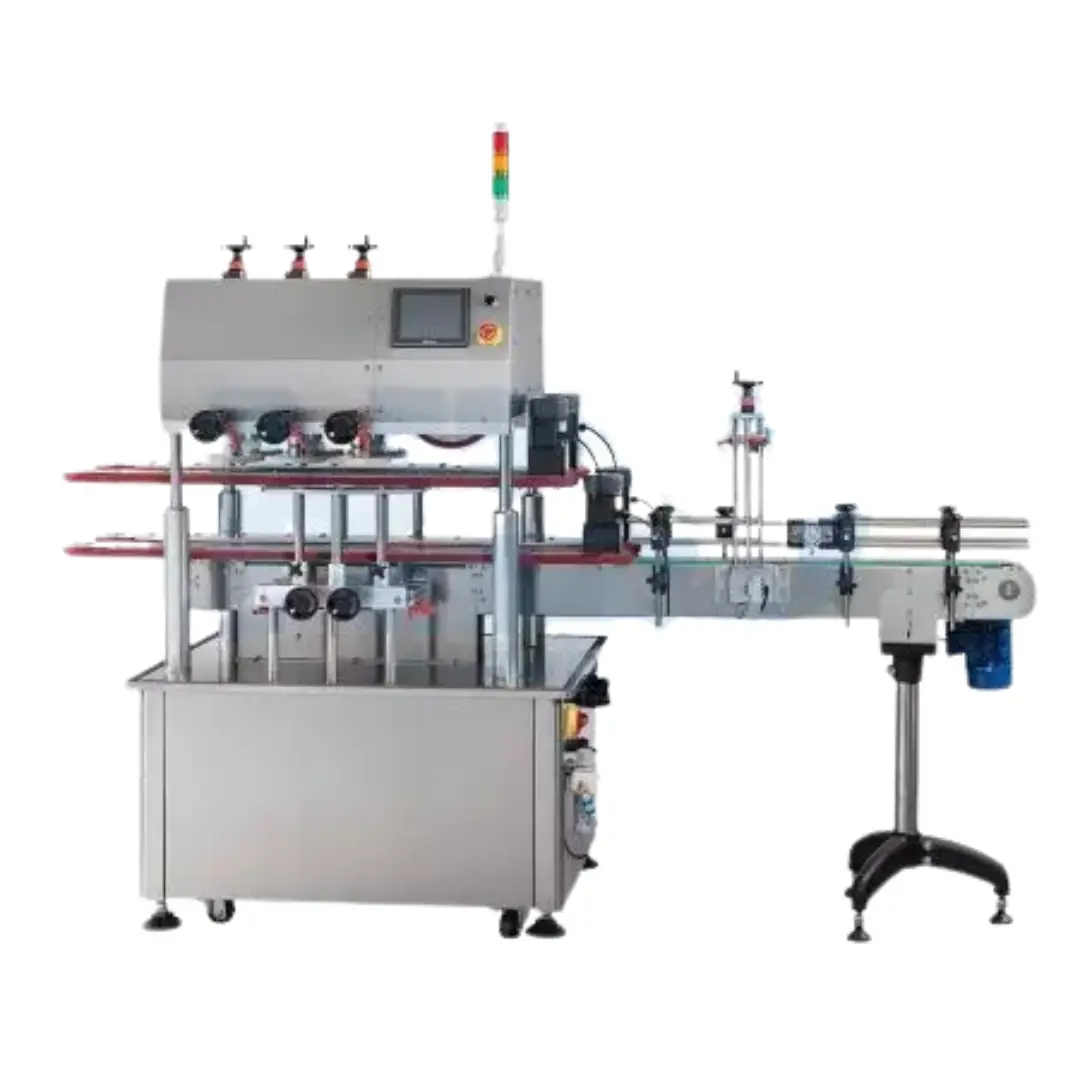

High-speed Spindle capping machine

Description

High-speed Spindle capping machine CCS3000 is a high speed capping machine, and can be used for any kind of caps, such as screw caps, plastic round bottle caps, spray bottle caps, pump caps, metal caps, flip-top caps and more.

The universal grippers are able to handle any of these caps with the proper torque and stable capping force, while the capping time and height are adjustable to optimize capping. Capping speed can reach up to 100 bottles per minute.

The High-speed Spindle capping machine CCS3000 is programmed with a PLC system, and uses a colored HMI touchscreen. The capping machine also has waterproof sensors and meets both cGMP standards.

High-speed Spindle capping machine can easily be connected to other machines in a production line, and is designed for quick changeover between products, with automatic operation and controls. It’s easy to catch any issues with the tri-color light warning system, and the bottle jam detection sensor.

The capping counter also keeps track of production so any problems can be found quickly.

The High-speed Spindle capping machine CC3000 is highly customizable, with a large number of available add-ons. The conveyor’s width can be customized, and the capper can be paired with an optional cap feeding device or cap reloader.

There are infeed and outfeed turntables available to feed and collect product, and a filler and labeler can be added to create a full production line. A bottle rejector can also be added to remove any bottles that do not meet production standards.

Advantages

1. Universal grippers, suitable for any cap

2. Adjustable capping time and height provides high capping flexibility

3. Automatic operation and control complies with cGMP standard

4. Can be used as part of a production line

5. Motor-controlled cappers for stability and strength

Application & Advantage

Suitable Industries

Pharmaceutical, cosmetics, chemical, food and drink.

Suitable Caps

General plastic caps, PET caps, downward pressing caps, safe pump heads, duckbill caps, and screw caps.

Capping Method

Screw-on

Capping Speed

50～100 BPM

Applicable cap diameter

20-55mm

Features

1. High-speed Spindle capping machine can be used for: general plastic caps, PET caps, downward pressing caps, safe pump heads, duckbill caps, and screw caps
2. Rubber capping wheels protect caps and ensure firm gripping
3. Precise high torque design for high capping quality with proper tightness to prevent over-capping
4. High-speed Spindle capping machine is driven by adjustable AC motor
5. Linear capping process, perfect for linking up with other machines
6. High-speed Spindle capping machine is easy to use; long-lasting with proper maintenance
7. Customizable conveyor width
8. Multiple adjustment modules, with both manual and automatic adjustments for capping height
9. Control panel includes production parameters, which can be saved and used as needed to save line changing time
10. Safety devices to prevent improper operating and protect workers
11. High-speed Spindle capping machine is made of SUS#304 stainless steel and aluminum for easy maintenance and cleaning
12. High-speed Spindle capping machine is programmed with PLC
13. User-friendly HMI color touchscreen, with simple maintenance instructions
14. Capping output counter to track production levels
15. Emergency stop button
16. Three-color warning light
17. IP65 machine shell which offer complete protection against particles, and a good level of protection against water.
18. High-speed Spindle capping machine can be moved as needed, mobile and ready to work anywhere
19. Bottle jam detection sensor and alarm, with automatic machine stopping
20. High-speed Spindle capping machine can be used for a full line (bottle washing→filling→capping→labeling)

Specification

• Applicable cap type: Screw caps / Pump / Spray / Mushroom-Shaped Cap
• Capping Speed: 50～100 BPM
• Applicable cap diameter: 20-55mm
• Bottle type: Round bottle, Square bottle
• Bottle applicable: Bottle height: 50 ~ 150 mm / Bottle diameter：30 ~ 100 mm
• Capping speed: 50~100 bottles / min
• Power supply: 110 or 220VAC, 50/60Hz , single phase
• Air Requirement: 2~6 kg/cm2
• Machine Dimensions: (L) 4200mm (W) 900mm (H) 1450mm
• * Actual product specifications may vary

Option Accessories

• Automatic cap feeding device
• Waterfall type cap reloader
• Bottle rejector
• Safety cabinet – shuts down when doors open
• Infeed turntable
• Bottle conveyor module
