Specifications


Arch Size 850W x 600H mm (Standard)
Power Supply 110/220V 50/60hZ 1Ph; 220/380V 50/60Hz 3 Ph;
Strap Cycle Speed 2.5 Sec/cycles
Tension Strength Max. 70kg
Strap Width 9- 15.5mm
Sealing Method Heat Sealing
Dimensions 1550W x 800D x 1470H mm
Table Height 815mm
Machine Weight 330 kgs
Gross Weight 430 kgs
Power Roller Speed 15M/50Hz Per Min.


Description

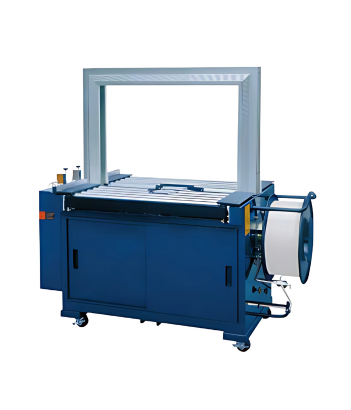

Fully Automatic Strapping System JN-85 PRU

Standard Power RollerTable
  • Standardized power roller table model with 2 sets of photocell JN-85PRU-2HT.
  • Optional straps No. is available for 1, 2 or no strapping on the packages. More straps application is also available as an option before order is fixed.
  • This model can incorporate input and output conveyors as a strapping system. The control system of conveyors can be connected with this model.
  • An optional photocell to control the table transmitting is available, which can auto-stop the table when no package is input.
  • Fully Automatic Strapping System JN-85 PRU is equipped with Table Roller Cover.

Specifications

Arch Size

850W x 600H mm (Standard)

Power Supply

110/220V 50/60hZ 1Ph;
220/380V 50/60Hz 3 Ph;

Strap Cycle Speed

2.5 Sec/cycles

Tension Strength

Max. 70kg

Strap Width

9- 15.5mm

Sealing Method

Heat Sealing

Dimensions

1550W x 800D x 1470H mm

Table Height

815mm

Machine Weight

330 kgs

Gross Weight

430 kgs

Power Roller Speed

15M/50Hz Per Min.
