| Arch Size | 850W x 600H mm (Optional) |
| Power Supply | 110/220V 50/60Hz 1Ph; 220/380V 50/60Hz 3Ph |
| Strap Cycle Speed | 28 Cycles 60Hz, 26 cycles/ 50Hz per Min |
| Tension Strength | Max. 70kgs |
| Strap Width | 6- 15.5mm |
| Sealing Method | Heat Sealing |
| Dimensions | 1400W x 640D x 1475H mm |
| Table Height | 810mm |
| Machine Weight | 220kgs |
| Gross Weight | 265kgs |
Specifications
Description
Description

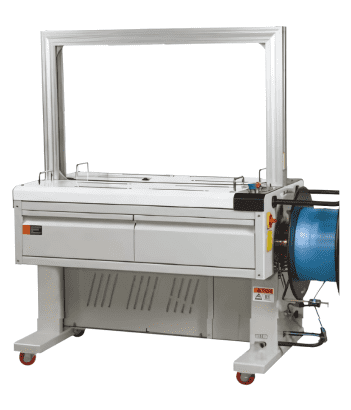

Fully Automatic Strapping System JN-85 E
Standard Model
- Modular designed Aluminum alloy arch, easy to assemble and disassemble.
- Auto strap positioning and retry feeding functions enable the operation of humanity.
- Convenient operating modes with panel, ball switch and foot pedal switch.
- Internal electricity is 24V accessible, preventing operators from shocking.
- With CKD frame and powder painting on frame. Change color on the iron arch cover, front doors & frame is available. (Optional)
Specifications
| Arch Size | 850W x 600H mm (Optional) |
| Power Supply | 110/220V 50/60Hz 1Ph; 220/380V 50/60Hz 3Ph |
| Strap Cycle Speed | 28 Cycles 60Hz, 26 cycles/ 50Hz per Min |
| Tension Strength | Max. 70kgs |
| Strap Width | 6- 15.5mm |
| Sealing Method | Heat Sealing |
| Dimensions | 1400W x 640D x 1475H mm |
| Table Height | 810mm |
| Machine Weight | 220kgs |
| Gross Weight | 265kgs |
