Quick3PL LLC

Specifications

Strap Cycle Speed

2 sec./cycle

Tension Strength

4-80 kg

Table Height

760mm

Strap Width

5-15.5mm

Sealing Method

Heat Sealed

Electric Consumption

200W

Power Supply

110/220V 50/60Hz Single phase

Dimensions

1400W x 640D x 1740H mm

Net Weight

110kg

Max Packing Size

Description

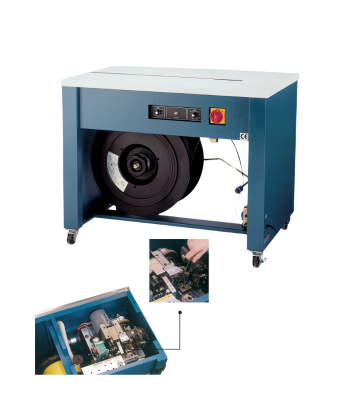

Fully Automatic Strapping Machine NS-3AD Standard Model

  • Easy adjustment of tension on the control panel by setting the electromagnetic Dutch system.
  • Low power consumption on 2-step tensioning and 0.2V seal blade designs allows for a very low Watt/Ampere level.
  • Fully Automatic Strapping Machine NS-3AD allows for easy changing of the strap design to give a convenient replacement for different thicknesses.
  • Dual tensioning keeps proper bending power on the strap to avoid defective strapping. The first step of the cycle reverses the strap around the package, and the second step applies positive mechanical tension that can be adjusted by a twist of a dial on the panel.
  • Fully Automatic Strapping Machine NS-3AD is designed for durable and convenient use and is provided with compact storage. This model highlights a precision performance and trouble-free maintenance with a patent.
  • Silent operation design of this model can be suspended after each strapping cycle; advanced strap feed keeps down the noise, unlike the startup sounds of the old systems.
  • Advanced devices of safety and convenience, such as smoke vent, pneumatic tabletop, one-touch tension roller cleaning, tabletop folded edges, and CE-approved safety switches.

Specifications

Strap Cycle Speed

2 sec./cycle

Tension Strength

4-80 kg

Table Height

760mm

Strap Width

5-15.5mm

Sealing Method

Heat Sealed

Electric Consumption

200W

Power Supply

110/220V 50/60Hz Single phase

Dimensions

1400W x 640D x 1740H mm

Net Weight

110kg

Max Packing Size
