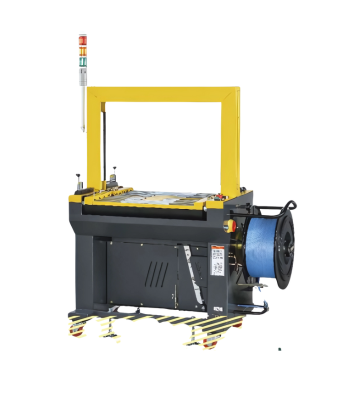

Fully Automatic Strapping Machine M-60AXPR-2HT

Fully Automatic Strapping Machine M-60AXPR-2HT

Availability: In Stock
Get a Quote
Download Catalog

SKU: M-60AXPR-2HT
Categories: ,

Specifications for Fully Automatic Strapping Machine M-60AXPR-2HT


Arch Size (WxH) 750 x 575 mm  (Iron Arc Cover) (standard)
Power Supply 110V/220V/1 Phase 220V380V/415V 3 Phase
Strap Cycle Speed 25-27 Cycles / Min (60 HZ) It depends on the package size
Dimension (WxDxH) 1240 x 650 x 1480 mm
Strap Width 6 - 15 mm (Change kits and adjustment)
Tension Strength 5 - 75 kg
Table Height 815 mm
Available Packing Size (WxH) 250-500 x 30-450 mm
Net Weight 247kg
Sealing Method Heat Sealing


Description

Fully Automatic Strapping Machine M-60AXPR-2HT

Power Roller Table with Arch 750W x575H mm (Standard)
  • Power Roller Table with Arch 750W x 575H mm (Standard). Power Roller Table: It is easy to maintain by raised-up top cover.
  • Equipped with two photocells (2HT), a safety 24, and a PLC electrical control system.
  • The user can choose to strap for 1 strap, 2 straps, or no strap via the control panel it depending on the user’s choice
  • Supply a circuit to combine the input & output of the conveyors. 110W220V single-phase is available.
  • The other details are as same as M-60AXPB-2HT



Specifications for Fully Automatic Strapping Machine M-60AXPR-2HT



Arch Size (WxH) 750 x 575 mm

(Iron Arc Cover) (standard)
Power Supply 110V/220V/1 Phase 220V380V/415V 3 Phase
Strap Cycle Speed 25-27 Cycles / Min (60 HZ)

It depends on the package size
Dimension (WxDxH) 1240 x 650 x 1480 mm
Strap Width 6 – 15 mm

(Change kits and adjustments)
Tension Strength 5 – 75 kg
Table Height 815 mm
Available Packing Size (WxH) 250-500 x 30-450 mm
Net Weight 247kg
Sealing Method Heat Sealing
