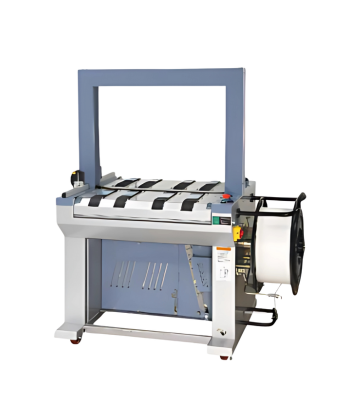

Name: Fully Automatic Strapping Machine M-60AX PB-2HT
SKU: M-60AX PB-2HT

Fully Automatic Strapping Machine M-60AX PB-2HT

In Stock

SKU: M-60AX PB-2HT

Specifications

Arch Size (WxH)	750 x 565 mm (Iron Arch Cover)(Standard)
Power Supply	110V/220V/1 Phase 220V380V/415V 3 Phase
Strap Cycle Speed	25-27 Cycles / Min (60 HZ) It depends on the package size
Dimension (WxDxH)	1290 x 640 x 1470 mm (Standard)
Strap Width	6 - 15 mm (Change kits and adjustment)
Tension Strength	5 - 75 kg
Table Height	810 mm
Available Packing Size (WxH)	250-500 x 30-450 mm
Net Weight	247kg
Sealing Method	Heat Sealing

Description

Power Belt Table (with 8 timing Belts).
Fully Automatic Strapping Machine M-60AX PB-2HT is equipped with two photocells(2HT), safely 21V, and a PLC electric control system.
Users can choose to strap for 1 strap, 2 straps, or no strap via the control panel, depending on the user’s choice.
Supply a circuit to combine the input & output of the conveyors.
110/220V single-phase is available.
Easy maintenance by the raised top cover
Patent now aluminum arch with iron arch cover (Standard)
The other details are as same as M-6ОАХ

Arch Size (WxH)	750 x 565 mm (Iron Arch Cover)(Standard)
Power Supply	110V/220V/1 Phase 220V380V/415V 3 Phase
Strap Cycle Speed	25-27 Cycles / Min (60 HZ) It depends on the package size
Dimension (WxDxH)	1290 x 640 x 1470 mm (Standard)
Strap Width	6 – 15 mm (Change kits and adjustment)
Tension Strength	5 – 75 kg
Table Height	810 mm
Available Packing Size (WxH)	250-500 x 30-450 mm
Net Weight	247kg
Sealing Method	Heat Sealing
