Quick3PL LLC

Specifications


Arch Size (WxH) 800 x 600 mm (Aluminium Arch)
Power Supply 110V/220V/1 Phase 220V/380V/415V 3 Phase
Strap Cycle Speed 32-35 Cycles / Min (60 HZ)
Dimension (WxDxH) 1240 x 500 x 1475mm
Strap Width 6 - 15 mm (Change kits and adjustments)
Tension Strength 5 - 75 kg
Table Height 805 mm
Available Packing Size (WxH) 100-750 x 30-575 mm (Aluminium Arch) 100-700 x 30-550 mm (Iron Arch Cover)
Net Weight App 100 kg
Sealing Method Heat Sealing


Description

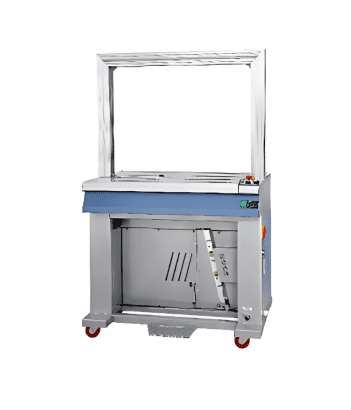

Fully Automatic Strapping Machine M-60AX

800W X 600H mm (Aluminum Arch) (Standard)
  • Innovatory AUTO-FEEDING Function: to press the “INSERT button, the strap will be fed automatically and be ready for the first strapping cycle applicао
  • Auto positioning and retry function: to ensure the strap goes to its proper position, and every cycle is accurate and efficient
  • JAM-FREE function auto stap loops ejecting design to correct strapping problems
  • Electronic tensioning: to get optional 5-75 ky tension strength by adjusting the tension knob
  • Internal foot pedal system: strap cycle will be completed more easily
  • Fully Automatic Strapping Machine M-60AX is equipped with a patent aluminum alloy arch modular design, it is easy to assemble, disassemble, and  change size economically; no arch motor is required (3rd Generation)
  • A strap cycle can be done by a start switch, a label ball switch, and a foot pedal bar.
  • With the motor’s auto-stop function
  • Fully Automatic Strapping Machine M-60AX has a lift-type top cover that allows convenient maintenance.

Specifications

Arch Size (WxH)

800 x 600 mm (Aluminium Arch)

Power Supply

110V/220V/1 Phase 220V/380V/415V 3 Phase

Strap Cycle Speed

32-35 Cycles / Min (60 HZ)

Dimension (WxDxH)

1240 x 500 x 1475mm

Strap Width

6 – 15 mm

(Change kits and adjustments)

Tension Strength

5 – 75 kg

Table Height

805 mm

Available Packing Size (WxH)

100-750 x 30-575 mm (Aluminium Arch)

100-700 x 30-550 mm (Iron Arch Cover)

Net Weight

App 100 kg

Sealing Method

Heat Sealing
