Name: Fully Automatic Strapping Machine JN-85Y U-4HT
SKU: JN-85Y U-4HT

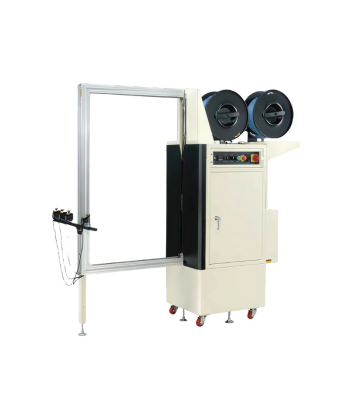

Fully Automatic Strapping Machine JN-85Y U-4HT

In Stock

SKU: JN-85Y U-4HT

Specifications

Arch Size	900W x 1350 mm (Aluminium arch cover)
Power Supply	110/220V/1 Phase, 220V/380V/415V 3 Phase
Strap Cycle Speed	3 Sec/Cycles (60HZ) (It depends on the package size)
Tension Strength	Max. 70 kg
Dimensions	1410W x 640D x 1810H mm
Strap Width	12 / 15 / 19 mm (Option)
Sealing Method	Heat Sealing
Max Packing Size	1800W x 640D x 2165H mm

Description

With double dispensers, it will save the users a lot of time on changing the P.P. strap coil.
Available to connect with free roller conveyors or power roller conveyors to be a complete strapping line.
The basic function of the machine is equipped with 2 photocells. (Option: with 3 photocells or 4 photocells, etc. It depends on the customers’ requirements.)
Fully Automatic Strapping Machine JN-85Y U-4HT is equipped with an “Arch Strap Guide” or “Brushes Set” to stabilize the P.P. strap to its proper position. (Optional)
P.E.T. strap strapping system is available and optional. Dispenser core inner diameter: Ø 406 mm. (Optional)
Red / Yellow / Green warning lamp and buzzer. (Optional)
Iron arch cover and corner stabilizers will be used for a big arch for arch stability and safety reasons .(Optional)
