Specifications


Arch Size 600W x 850H mm (Standard)
Power Supply 110/220V 50/60Hz 1Ph; 220/380V 50/60Hz 3 Ph;
Strap Cycle Speed 28 Cycles /60 sec
Tension Strength Max. 70 kg
Dimensions 1400W x 640D x 1740H mm
Strap Width 9-15 mm
Sealing Method Heat Sealing
Max Packing Size


Description

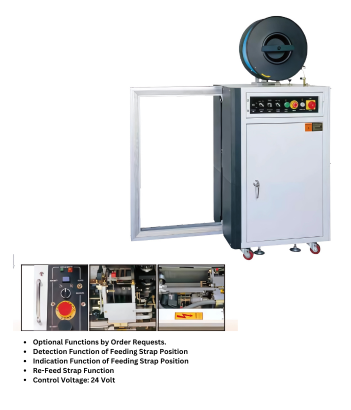

Fully Automatic Strapping Machine JN-85Y U

Standard Model
  • With indicating and detecting functions when forward feeding the strap positioning.
  • The retry feeding of auto auto-correcting function to correct the failure strap.
  • Safety internal control voltage: 24 volts. (Optional)
  • All side-sealing models should note the minimum height of the packaging area
  • Fully Automatic Strapping Machine JN-85Y U’s side-sealing models can be equipped with a minimum of 2 photocells to cooperate with existing input and output conveyors with controlling circuitry, and the model will add -2HT in the end.

Specifications

Arch Size

600W x 850H mm (Standard)

Power Supply

110/220V 50/60Hz 1Ph;

220/380V 50/60Hz 3 Ph;

Strap Cycle Speed

28 Cycles /60 sec

Tension Strength

Max. 70 kg

Dimensions

1400W x 640D x 1740H mm

Strap Width

9-15 mm

Sealing Method

Heat Sealing

Max Packing Size
