Specifications


Arch Size 600W x 630H mm (Standard)
Power Supply 110/220V 50/60Hz 1Ph; 220/380V 50/60Hz 3 Ph;
Strap Cycle Speed 28 Cycles /60 sec
Tension Strength Max. 70 kg
Dimensions 1410W x 640D x 1810H mm
Strap Width 6-15 mm
Sealing Method Heat Sealing
Table Height 565-685mm
Max Packing Size 600W x 530-630H mm


Description

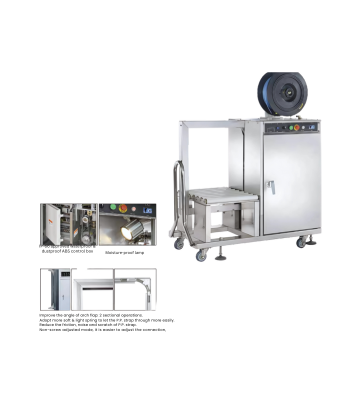

Fully Automatic Strapping Machine JN-85Y RS with Free Roller Table

  • Fully Automatic Strapping Machine JN-85Y RS’s frame and most of the hardware are made of stainless steel. This model is rustproof and suitable for operating in damp areas or strapping wet packages.
  • Accessing height height-adjustable ABS-free roller table (Between 585~685mm).
  • Equipped with height-adjustable stainless steel stands (Max 100mm).
  • Equipped with an IP-66 approved waterproof and dustproof ABS control box.
  • Electricity leakage breaker protected main-power switch on the control panel, and an optional device installation of a lamp to keep the inner temperature and the machine interior dry

Specifications

Arch Size

600W x 630H mm (Standard)

Power Supply

110/220V 50/60Hz 1Ph;

220/380V 50/60Hz 3 Ph;

Strap Cycle Speed

28 Cycles /60 sec

Tension Strength

Max. 70 kg

Dimensions

1410W x 640D x 1810H mm

Strap Width

6-15 mm

Sealing Method

Heat Sealing

Table Height

565-685mm

Max Packing Size

600W x 530-630H mm
