- The double-rail capsule can be stably separated, and quickly counting is fast and accurate.
- High-precision counting function, accurate 100%
- Double-rail delivering design, making two counters produce simultaneously and constantly. No need to wait for delivery, and it is efficiently promoting production.
- Automatic cap-feeding and sorting machine saves a high workforce and substantially decreases labor.
- A capsule counter synchronized control system, which can put the caps precisely on the bottles after the filling process.
- Capping machine uses a variable AC motor to drive, which can easily adjust production depending on the products at any time.
- According to the labels and bottle specifications, labeling can reach 13 meters per minute.
- Labels can easily stick to the bottles.
- Changing the items or figures can be directly used touchscreen to set up, no the need adjustment construction.
- Front-end automatic feeding machine and back-end automatic collecting round platform make production speed up and lower the labor cost.
- The counting machine line is humanistic and simple to use, you don’t need the trivially set or adjust.
- Machines are equipped with hand wheels, filling heads, capping heads, and labeling heads, which can easily adjust the heights.
- The capsule counting machine is equipped with multiple memorizing parameters functions, which can memorize and retrieve each bottle’s setup parameter, so you can change the line fast and easily.
- We select the famous optical fiber sensor to detect, and it has sensitivity and high accuracy, avoiding false readings.
- Mainly used in pharmaceutical, biotech, dietary supplement, and food industries for counting and filling packaging.
- Two hoppers can load many more products, through vibrating, they precisely detect the numbers and then put them into the containers.
- The touchscreen can adjust the number and production, accurately distributing your products into each bottle.
- The multi-speed motor-driven conveyor can adjust to the best production speed.
- All machine is controlled by the PLC, which can hold the production schedule at any time.
- No materials alarm reminding, it takes effective control, and it can immediately supply the materials.
- With smart equipment, the machine could stop filling and capping if there are no caps and bottles.
- Mechanical construction is easy to remove and take apart, modules are easy to maintain and clean.
- The capsule bottle packaging line is made of stainless steel and aluminum alloy, strong frame, durable, and enduring.
- Product surface area is food-grade and conforms to the cGMP regulations.
- The optional bottleneck adopts an aluminum foil sealer that ensures the integrity of sealing.
- Actively detecting caps and bottles, no bottles, no filling, and no caps, no capping.
- Every machine is equipped with an adjustable pedestal foot and movable wheels, which can be slightly adjusted in height and are convenient for moving.

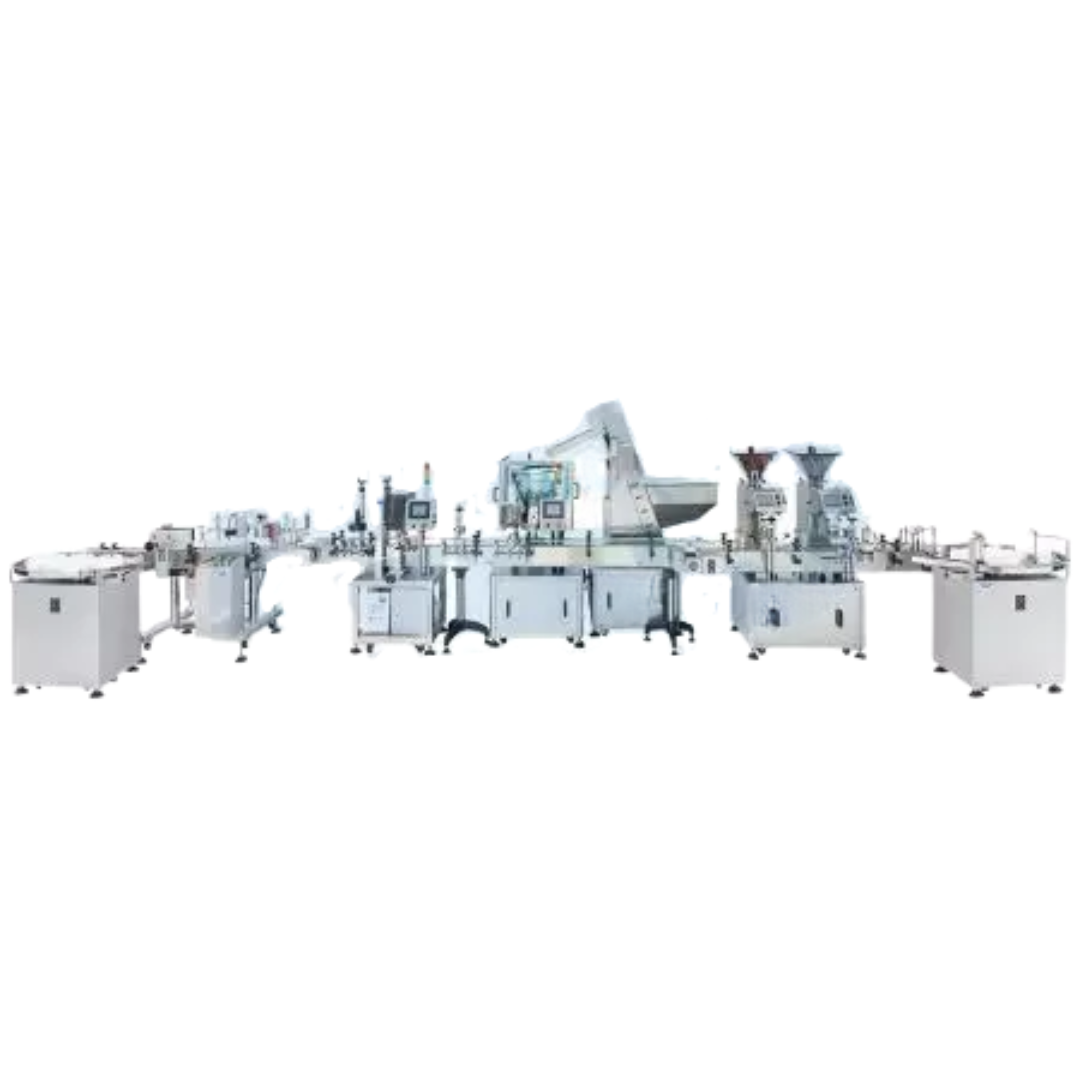

Bottle Capsule Counting Machine Line
Availability: In Stock
SKU: TM4100 / CW4000 / LR3000 / RT1000
Features
Specifications
Capsule counter
- Product size: (Dia.) 2 ~ 40mm (H) 2mm at least
- Counting speed: 1200-2000pcs/min
- Accuracy: 100%
- Dimension: (L) 2000mm x (W) 1000mm x (H) 1500mm
- Weight: 380KGS
Capping machine
- Cap types: General screw caps, plastic caps and round caps
- Cap diameter: 25-55mm
- Capping speed: 30- 35BPM (depends on the bottle and cap type)
- Dimension: (L) 1500mm x (W) 1000mm x (H) 1300mm
- Weight: 450 KG
Round bottle labeling machine
- Bottle shape: Round bottles or Round cans
- Label type: Non-transparent labels
- Label size: (W) max. 100mm (L) max. 300mm
- Label roll diameter: (inner) 75mm (outer) 300mm
- Dimension: (L) 2000mm x (W) 1800mm x (H) 1100mm
- Weight: 330 KGS
- Power and Air pressure
- Power: 110/220VAC, 50/60Hz, 1 Phase
- Air: 90 PSI/2 CFM
Option Accessories
- Safety door
- Cap sealing machine
- Detection system and rejection device
- Hot stamping machine
Description
Description
Capsule counting complete line for healthy food is usually for the pharmaceutical factory and healthy food manufacturing, which must be equipped with. These factories mainly sell tablets and capsule products. While packing, it needs to meet the expectations of the production needs.
This capsule counting machine line includes, bottle feeding machine, two capsule counting machines, an automatic cap-supplying machine, a cap sorting machine, an automatic capper, a labeling machine, and a collecting round table. On this whole line, the equipment and contact face that we use are all selected by food-grade ingredients, all conforming to the cGMP regulations and satisfying the product standard. Besides, if you have small-scale to medium packaging needs, we can offer another line that has rinsing, counting, labeling, capping, and foil sealing machines. It has a long and intact production process. We also provide customized packaging mechanical modules. According to your healthy food and capsule packaging production line, we can bring you more flexible bottle capsule counting and packaging solutions. Mechanical construction and adjustment are relatively simple. Speaking of the maintenance, it is also easy to protect and check, helping you lower the cost.
Capsule Counting Packaging Machine For Dietary Supplement And Nutrient Food, It Can Handle Different Types Of Bottles And Production.
Bottle capsule counting machine line is widely applied in caplets, hard capsules, soft capsules, lozenges, dietary supplements, troches, gums, tablets, different types of caplets, chocolate balls, and candies, which can usually be used in solid products to count and fill. It is suitable for various types of material packaging. Also, the capsule tablet bottle packaging line is applicable to pharmaceutical, dietary supplement, biotech, and food industries for production. Automatic counting and capping production loads the supplies to count, through a sensor to detect the accurate numbers, then filling the containers. The touchscreen setup and adjustment are easy to operate. Only need one person to control and operate at the same time. Two vibratory counting machines can both quickly count the numbers. Besides, the nutraceutical bottle packaging line can adjust the production process based on your product. It can also improve efficiency. Special cap-feeding and cap-sealing machine applies lots of different caps and bottles to the product, increasing filling and counting machine promotion, and making the most of its production value.
