- Be a pioneer of the industry to adopt the PLC Human-computer control system with a touch panel, which is easy to read and operate.
- Adopt a high-class servo motor for better labeling efficiency.
- Provided with 60 sets of memory to save parameters from different production lines, and it is convenient to adjust various productions.
- Create a humanized operation design like a color touch panel.
- The active detection system gives the alarm, and the machine stops working when out of carbon fiber tape.
- The design of the linked operation system will adjust the label applicator and conveyor belt immediately to improve the accuracy of labeling and the stability of bottle delivery.
- Choose the perfect and proper bottle separating or delivering devices according to labeling speed and bottle size.
- Power spacer separates containers into a fixed space.
- Professional design and solid structure, such as controlled by frequency conversion servo motor, Europe-made speed reducer, and conveyor belt boosted by alternating current frequency conversion servo motor, to reach high-quality manufacturing.
- All the machine's design and spare parts are standardized and can be freely configured to meet requirements and best efficacy.
- Self-correcting system makes sure bottles stand in the right position.
- An electronic automatic label-counting system informs you of the labeling progress.
- The labeling height and angle can be easily adjusted by the product.
- Locating devices keep delivering products and detect the right labeling position.
- Wrap station makes labels adhere perfectly to round/flat/square bottles. (Only need a few modifications to the labeler)
- Smart detection system for missing labeling to guarantee labeling quality.
- Conveyor belt and labeling speed can be adjusted to meet requirements.
- Easy to operate with auxiliary microprocessor CPU system.
- Control labeling progress by an LED screen and an electronic technical system.
- The label sensor doesn't need to be readjusted when replacing labels and products.
- The fixed base with moving wheels greatly improves its flexibility for movement
- Our MCC conveyor belt complies with Food Sanitation Standards.
- Made of stainless steel SUS#304 and aluminum alloy for easy maintenance and longevity, and complies with GMP regulations.
Features
Specifications
- Driving device: Stepping motor
- Labeling speed: 20-60 pcs/min (depending on the size of the product and label)
- Accuracy: ± 1mm
- Total length for Labeling: 20-300 mm
- Bottle size: (Diameter) 16-90mm x (H) 30-160mm
- Label size: (L) 20-300mm x (W) 10-100mm
- Fit paper roll: (inner diameter) 75mm. (outer diameter) 300mm
- Power supply: 110 or 220VAC, 50/60Hz
- Labeler dimension: (L) 1780mm (W) 930mm (H) 1200mm
Option Accessories
- Set of pneumatic wrap station (for labeling 3/4 to 1 circle around the bottle)
- Transparent label sensor
- Date coder
- Mitsubishi servo motor (reaching labeling speed for 40 meters/min)
- PLC human-computer control system with touch panel
- Stainless-steel cabinet
- Automatic feeding & gathering turntable (driven by motor)
- The feeding turntable is more appropriate to be added to the automatic round bottle labeler NLR-400.
- Straight-line material feeding system (for greater capacity)
- Bottle separating screw (for high speed labeling)
Description
Description

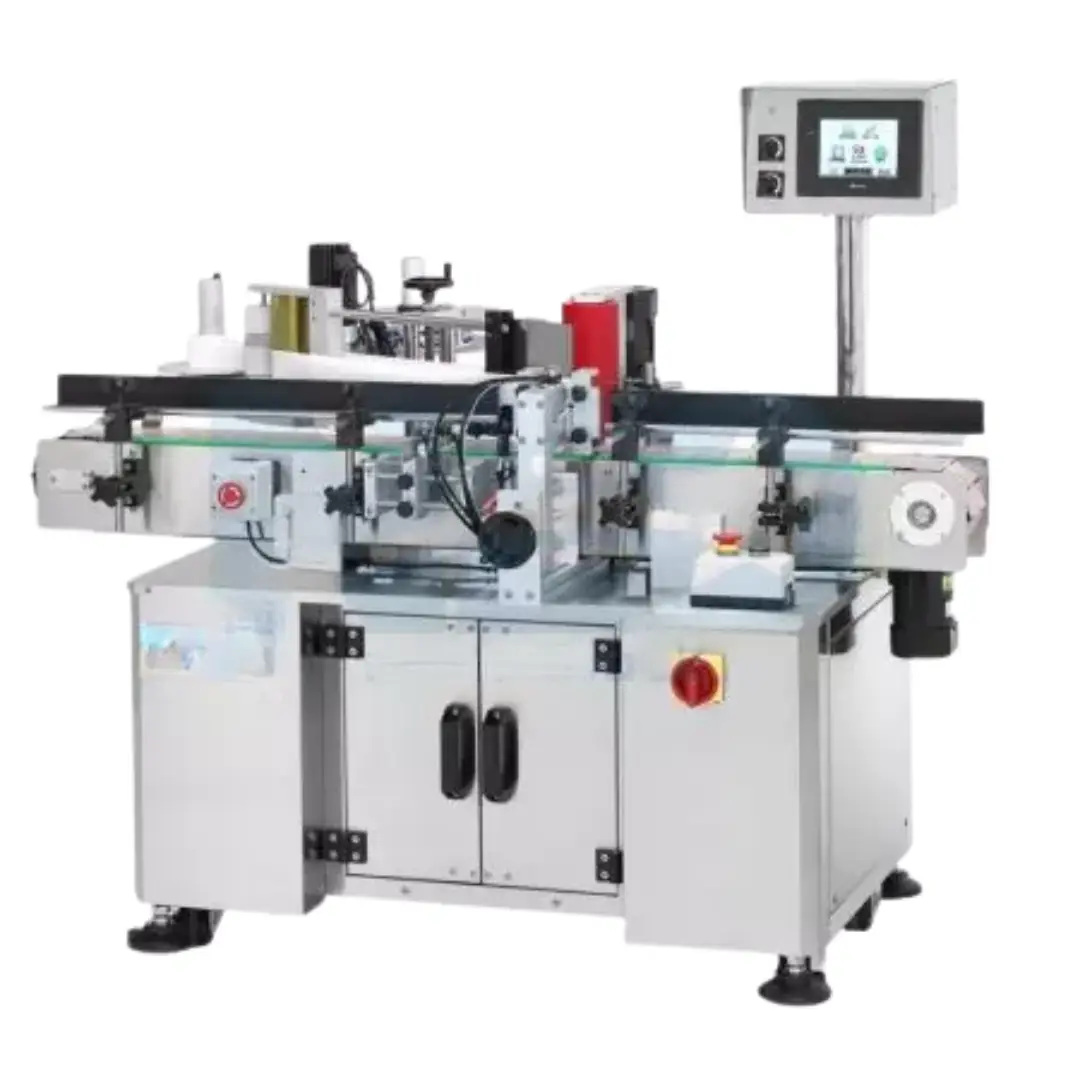

Automatic round bottles labeling machine LR4000 is available for any kind of erective plastic bottle and glass labeling, such as water bottle, yoghurt, wine bottle, seasoning, cleanser, small round bottle, ampoule, nail polish, lipstick, mascara, lip gloss, battery, etc. Different kinds of labels, like transparent labels, anti-forgery labels, and barcode labels, are all applicable to this machine.
