- Conveyor belt and labeling speed are adjustable.
- Labeling height and angle are adjustable.
- The wrap station makes labels adhere perfectly.
- Power spacer separates containers into a fixed space.
- Controlled by a Microprocessor system with an LED screen.
- Sensor detection system, no bottle, no labeling.
- No repositioning or timing adjustment is necessary when changing bottle size.
- Labeling speed is synchronized with the conveyor belt.
- The conveyor belt meets the MCC standard.
- Emergency stop button.
- All are made of stainless steel and high-quality aluminum alloy.
Features
Specifications
- Labeling speed: 20~60 pcs/ min (depends on containers and label size)
- Bottle size: diameter 16 mm- 90 mm/ height 30-160 mm
- Label size: (W) 10~100mm / (L) 20~300mm
- Label reel: Inner diameter 75mm / Outer Diameter 300mm
- Accuracy: ± 1mm
- Supply power: 110V or 220VAC, 50/60Hz
- Machine size: (L) 1767mm (W) 930mm (H) 1212mm
Option Accessories
- Transparent label sensor
- Date coder
- Pneumatic wrap station
Description
Description

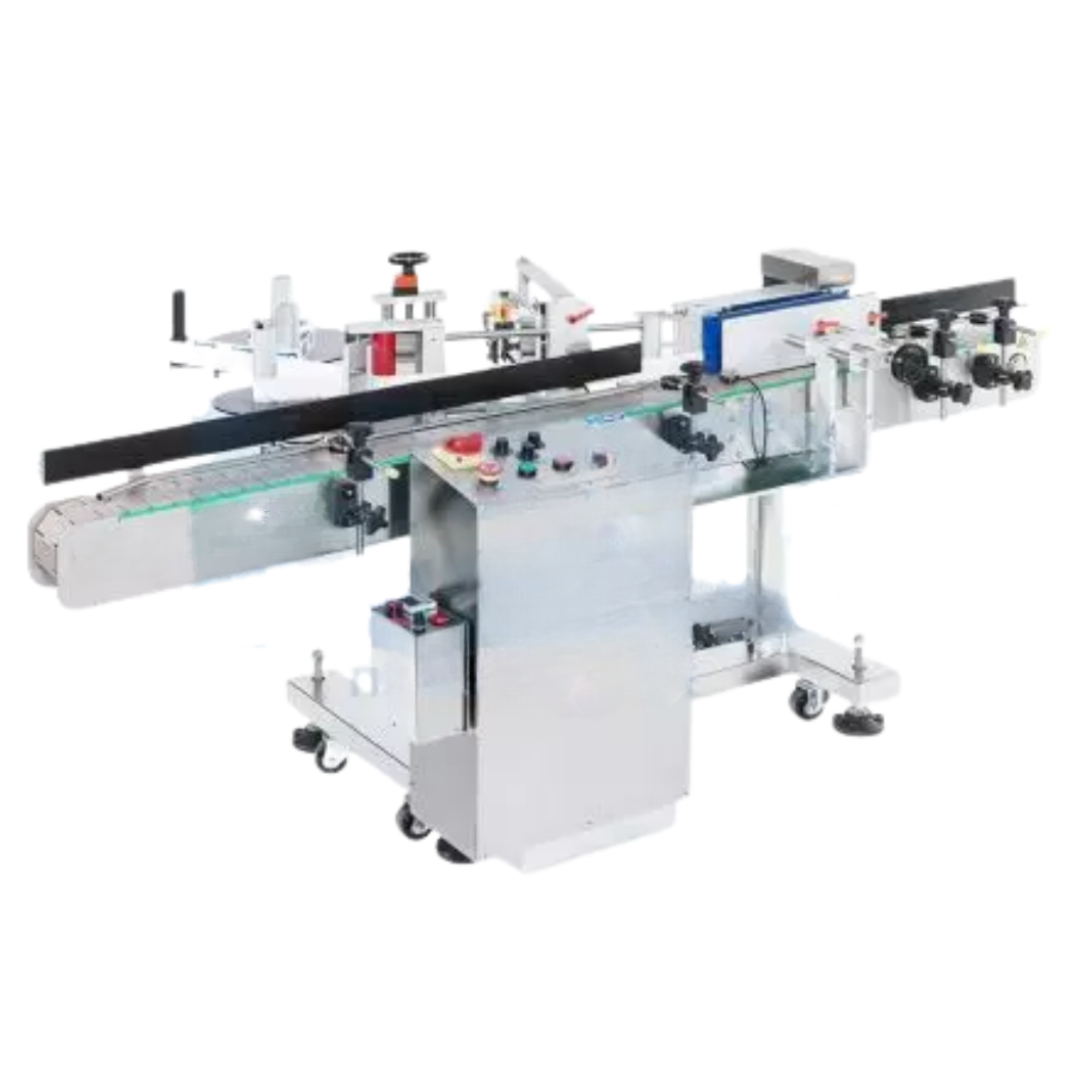

Automatic round bottle labeler LR3000 is suitable for food, pharmaceuticals, beverage, and cosmetic industries’ labeling requirements. It can connect with the labeling machine production line.
