Automatic Print and Apply Labeling system with Bag Feeder Labelling Motor: Stepper Motor Labeling Speed: 10–30 pcs/min (depending on product and label size) Label Size: Length 10–100 mm, Width 10–100 mm Power Supply: 110 or 220 VAC, 50/60 Hz, Single Phase Machine Size: (L) 1700mm x (W) 500mm x (H) 1550mm
Automatic Print and Apply Labeling system with Bag Feeder Labelling Motor: Stepper Motor Labeling Speed: 10–30 pcs/min (depending on product and label size) Label Size: Length 10–100 mm, Width 10–100 mm Power Supply: 110 or 220 VAC, 50/60 Hz, Single Phase Machine Size: (L) 1700mm x (W) 500mm x (H) 1550mm
Automatic Print and Apply Labeling system with Bag Feeder Labelling Motor: Stepper Motor Labeling Speed: 10–30 pcs/min (depending on product and label size) Label Size: Length 10–100 mm, Width 10–100 mm Power Supply: 110 or 220 VAC, 50/60 Hz, Single Phase Machine Size: (L) 1700mm x (W) 500mm x (H) 1550mm
Automatic Print and Apply Labeling system with Bag Feeder Labelling Motor: Stepper Motor Labeling Speed: 10–30 pcs/min (depending on product and label size) Label Size: Length 10–100 mm, Width 10–100 mm Power Supply: 110 or 220 VAC, 50/60 Hz, Single Phase Machine Size: (L) 1700mm x (W) 500mm x (H) 1550mm

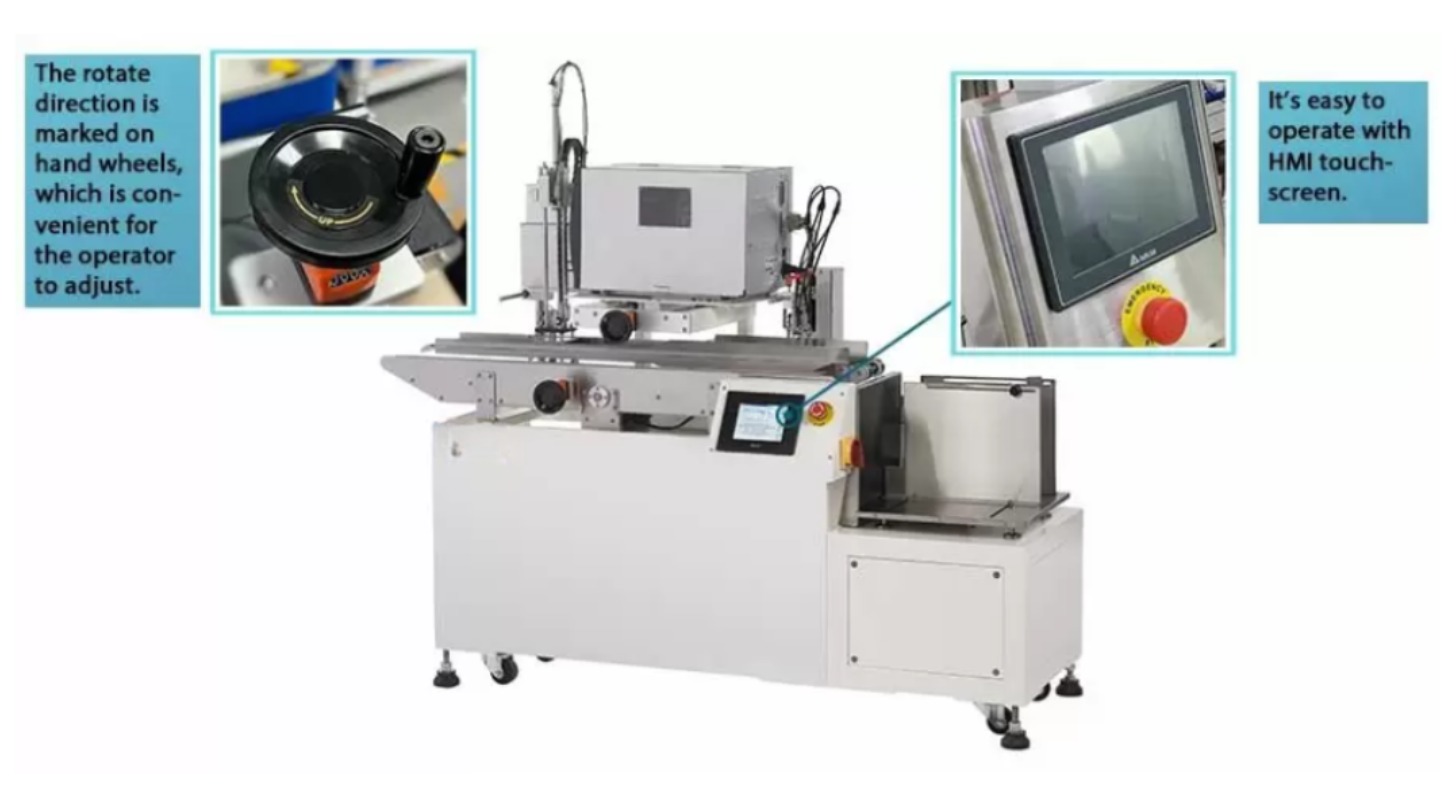

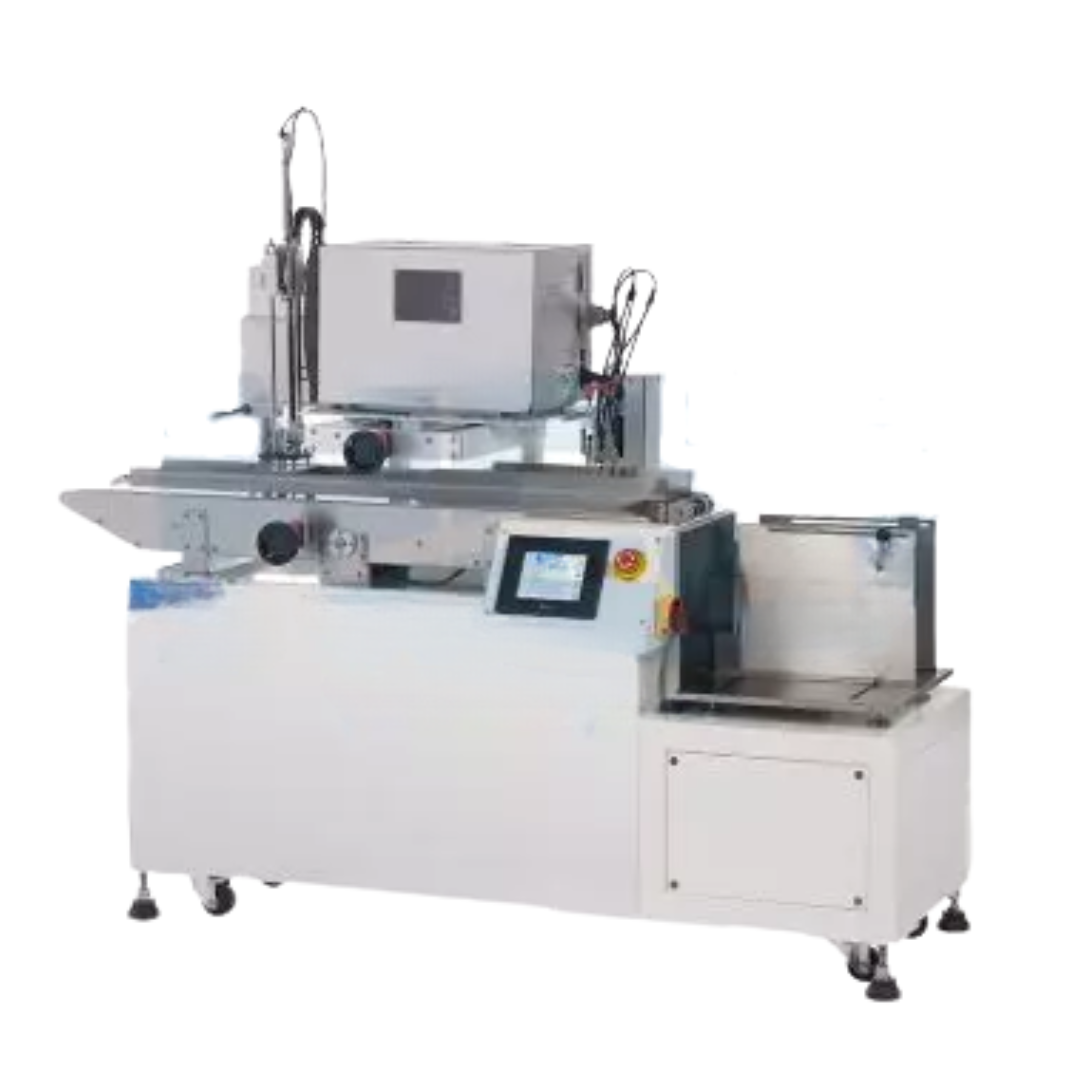

Automatic Print and Apply Labeling System with Bag Feeder

Availability: In Stock
Get a Quote
Download Catalog

SKU: LS450PB
Categories: , Tag:
  1. The labeling position has high accuracy, which reduces human errors.
  2. It is synced with feeding, printing, and labeling in one machine.
  3. Automatic memory function: memorizes the setting parameters of the production line and starts to produce immediately after turning on the power.
  4. The simple operation interface is user-friendly.
  5. Automatic missing label detection maintains the product quality.
  6. Adjustable feeding setting saves labor costs.
  7. Optional pressing units make labels more fixed.
  8. A particular labeling method applies to the unique and irregular shapes of items.
  9. Components of UL performance certification and CE safety certification are adopted, and their quality is guaranteed
  10. Set up the content to be printed, and upload the material with a wireless network.
  11. The colored HMI touchscreen display operates clearly.
  12. Fast and precise labeling with a stepper motor
  13. Versatility: It’s available to print different sizes and shapes of stickers, fonts, and patterns.
  14. Systematically combines automatic feeding, printing, and labeling, a single machine fulfills the production process.
  15. Japanese high-precision sensor is sensitive in detection, which contributes to high-accuracy labeling
  16. The labeler is made of SUS# 304 stainless steel and aluminum alloy, which is firm and durable with high quality.
  17. Reduce the cost: Labeling and printing in the meantime can save labor costs and printing time to avoid human error and waste.

  • Labelling Motor: Stepper Motor

  • Labeling Speed: 10–30 pcs/min (depending on product and label size)

  • Label Size: Length 10–100 mm, Width 10–100 mm

  • Power Supply: 110 or 220 VAC, 50/60 Hz, Single Phase

  • Machine Size: (L) 1700mm x (W) 500mm x (H) 1550mm

Option Accessories
  • Smoothing units
  • Barcode printer
  • Laser printer
  • Tamp label applicator
  • Customized feeder or collecting machine
  • High-level servo motor
  • Japanese transparent label sensor

Advantages

High flexibility

LS450PB is available to print various sizes and shapes of labels to meet different products.

System integration integrates the feeder, printer, and labeler to create automatic production.

Automatically prints the content in seconds and quickly sticks onto items. It’s faster and more efficient than manual labeling.

You can choose machine model with wireless function then you get to edit the printing content with your laptop easily.

The labeling machine is suitable for unique and irregular shapes of products.

Suitable Goods

Biscuits, condiments, pasta, fruit, grins, meat, fish, etc. (Label provides nutrition facts, ingredients, expiration dates, bar codes and other relevant information.)

Bottled juice, coffee, tea, alcoholic drink, and energy drink.

bottled medicines, boxed medicines, traditional Chinese medicine, dietary supplements, medical supplies. (Labels provide dosage instructions, warnings and other important information.)

Setting powder, mascara, lipstick, hand cream, and lotion. (Labels provide ingredients, instructions, and batch number.)

Shower gel, moisturizer, shampoo, conditioner, toothpaste, mouthwash, soap, toner, lotion, serum.

Parts of the phone and computer, HDD, and terminal pins.

Clothing labels, stationery supplies, bags. (Labels provide materials, use instructions.)

Automatic Print and Apply Labeling system with

Suitable Product Shape:
Flat products, bottles, bags, irregular shape containers, 3D products (cartons or lipsticks)

Suitable Container Material:
Paper, glass, aluminum foil, plastic (PP, PE, PET, HDPE, PVC, LDPE), and metal (tinplate, aluminum).

Automatic Print and Apply Labeling system with

Suitable Labels:

Thermal Sticker, Ingredient Label, Barcode Sticker, Tracing Code Sticker, Waterproof Sticker, Transparent Label, Temperature Resistance Sticker, Fragile Label, Void Label, Self-Adhesive Label. Remove the printed label from the paper roll, and attach the label to the product with the label applicator.

Automatic Print and Apply Labeling system with

Suitable Industries:
Machinery manufacturing, Cosmetic industry, Food & Beverage industry, Pharmaceutical industry, Catering industry, Electronic product industry, Retail industry, Logistics industry, Chemical industry, Agriculture industry, Biotechnology industry.

Machine Layout:

Automatic Print and Apply Labeling system with

Description

The automatic print and apply labeling system is a combination of label printing and applying equipment. It can print texts, barcodes, or graphics on self-adhesive labels right before the labeling process, The LS450PB can complete dual functions in one station.

The biggest feature of LS450PB is that it can be used for special products with irregular shapes. It can print the date, nutrition label, ingredients, certification, and barcode on the label, and paste the stickers to the product. A labeling machine with a printer breaks through the product limits of common flat and round bottle labelers. Its special labeling mode applies to diverse product styles with high accuracy, such as: plastic bags, electronic parts, phone parts, aluminum foil bags, terminal pins, cartons and etc.

Consistent work saves time and cost, and enhances the degree of automated manufacturing

The LS450PB with bag feeder integrates with automatic bag feeding, label printing, labeling, and collecting functions through the PLC system, and replaces multi-station manual operations, which its consistent work improves automation of production. It is a good helper for saving costs and increasing production capacity. The printer of LS450PB can print various shapes of stickers, and change the content on labels quickly, which is faster than the usual way of printing labels by printing factories.

Neostarpack’s professional team has many years of design, development, testing, and complete management experience. We offer many kinds of labeling solutions, customized equipment, detailed installation instructions, and after-sales service based on the customer’s requirements. Our high-accuracy labeling machine can be used in a single machine model. Furthermore, allowing connection with the packaging machine and feeding machine to increase productivity, which in turn develops capacity and market competitiveness. Please fill in all * fields below, we will contact you shortly.
