Description

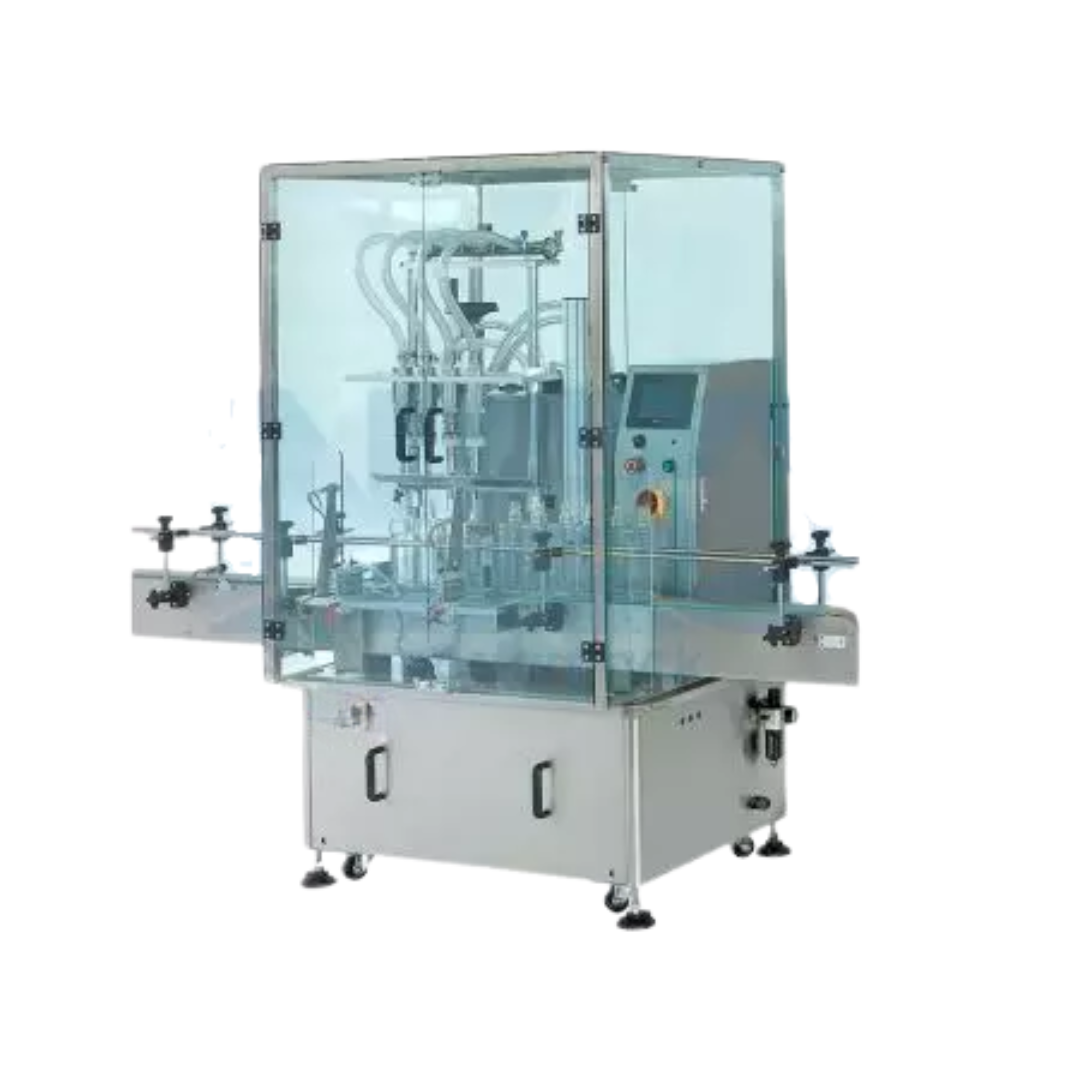

Automatic Overflow Liquid Filler With Safety Gate is designed for mineral water filling requirements with massive volume. The liquid level of every bottle will be the same, and the surplus bubbles will overflow into the reservoir. It is especially suited for foamy liquids.
Features
- An anti-dust housing is installed to make sure the machine complies with the standard of food hygiene.
- Automatic conveyor-mounted bottle indexing gates to control container movement.
- Filler frame is fully enclosed with stainless steel panels and a gasketed access door.
- Automatic Overflow Liquid Filler With Safety Gate suits free-flowing liquid filling requirements like water and juice.
- Controlled by PLC with color touch screen: filling volume, speed, and interval time can be adjusted directly on the touch screen without mechanical adjustment.
- Four filling nozzles to fill four bottles at one time.
- Heads sink into bottles to decrease bubbles.
- Both round bottles and rectangular bottles can be adopted easily without an additional device.
- Surplus liquid and bubbles overflow back to the reservoir.
- Dipping nozzles prevent spillage and diminish bubbles.
- Fiber optic sensors for container gating.
- Automatic Overflow Liquid Filler With Safety Gate can be customized according to different liquids.
- User-friendly control system with touch screen for ease of adjustment.
Specification
- Liquid: Free-flowing liquid
- Speed: 3bpm (5L bottle)
- Filling range: 1~5L
- Control system: PLC+HMI system
- Power supply: 110v or 220v, single phase
Option Accessories
- Modifications for large containers
- Customized tank
- Bottle feeding device
