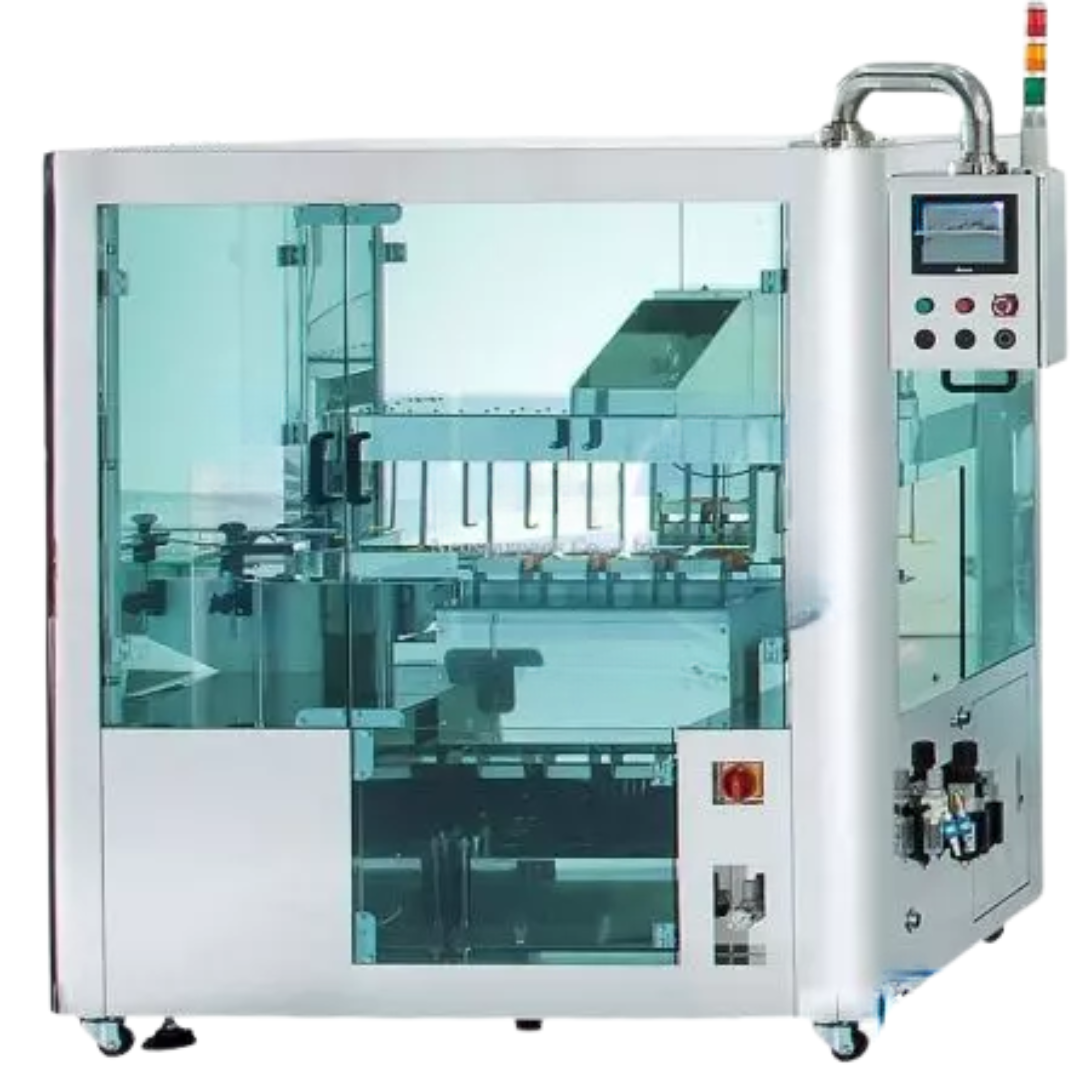

Automatic High Speed Bottle Washing Machine

Description

Automatic high speed bottle washing machine can work for many types of bottles at the same time. The new generation fast-flipping bottle washing machines are designed for a speedy production line, breaking through the old washing mode that allowed only one row of bottles in the washing machines.

It washes at the same time with double rows of bottles by 180-degree flipping bottle washing.

When the Automatic High Speed Bottle Washing Machine is washing the first row of bottles, the second row is conveyed to wait for the next washing. After finishing washing the first row, the second row will be immediately washed right after the first row finishes. The washing speed doubles by constantly flipping and washing bottles while still conveying and locating new bottles with no time wasted.

We provide bottle water rinsers and bottle air rinsers for different needs of products. The gas washing machine uses powerful gas to inject directly into the containers, cleaning out the dust from the bottles. It becomes an efficient bottle air washing machine, and bottle water washing machines use pure water to rinse.

Highly Efficient Automatic High Speed Bottle Washing Machine

The automatic high speed bottle washing machine can coordinate with the production needs to increase or decrease the number of nozzles. It can cleanse 16 bottles at most, and the size is arbitrary in the range allowed. Glass and plastic material bottles can also be washed at the same time.

No machinery adjustment is needed when working with special bottle types, and they can be washed by customized fixtures. The automatic bottle washing machine is covered by a pharmaceutical-grade transparent protective machinery structure, guaranteeing safety from all sources of contamination during processes.

Automatic High Speed Bottle Washing Machine is suitable for the industries of food, pharmacy, and biotech, which need production lines with a high standard of bottle washing.

Features

1. Automatic High Speed Bottle Washing Machine allows different shapes of bottles at the same time, is easy to locate without adjusting nozzles, and the production process.
2. Automatic High Speed Bottle Washing Machine cooperates with production needs; customized number of nozzles.
3. Multiple parameter sets, always memorize and access parameters, and no need to set up the machines again to increase the efficiency.
4. Pharmaceutical grade bottle washing machines conform cGMP standard.
5. The splitting module can work precisely to put bottles into the washing mechanism in order.
6. The Automatic High Speed Bottle Washing Machine actively drains out the dirty gas.
7. High color saturation and resolution human-machine and PLC-controlled touch panel allow to type easily.
8. Automatic High Speed Bottle Washing Machine has an interlocking system that helps halt washing if any production mechanism stops.
9. The choice of gripper modules with special material will not scratch the bottles.
10. The stepper motor-driven conveying mechanism can adjust washing speed according to production needs.
11. Buzzers and tri-color warning lights visualize the situation of the machine to alarm operators.
12. Automatic High Speed Bottle Washing Machine’s digital counting works smartly.
13. No need to switch the fixtures when changing over to lift the productivity.
14. Integrated with the present production line, combining filling and capping machines can increase productivity.
15. The Automatic High Speed Bottle Washing Machine is covered by a transparent protection to make the cleaning process safe and sanitary.
16. Automatic High Speed Bottle Washing Machine is made of stainless steel and hardened aluminum alloy to make it durable.
17. The washing period and production interval can be adjusted anytime in accordance with the size of the bottles.
18. Automatic High Speed Bottle Washing Machine is combined with UV disinfecting machines, conforming to the sanitizing needs of pharmaceutical and food factories.

Specification

• Washing Speed: 30 bottles/min
• Bottle Diameter: 69 ~ 101mm
• Bottle Height Limit: No higher than 80mm
• Power Requirement: 110/220VAC, 50/60Hz, 1P
• Air Pressure Requirement: 0.4Mpa
• Machine Size: (L) 4696mm x (W) 1392mm x (H) 1958mm

Option Accessories

• Washing Module
• Vacuum System
• UV Tunnel
• Liquid filling machine
• Capping machine
