Automatic Front and Back Labeler Automatic level: Automated machine Labeling Motor: Stepper Motor Labeling Speed: 20~40 pcs/min (according to product and label size) Label Size: (Length) 20-300 mm, (Width) 10-100 mm Product Size: Diameter 20 mm - 125 mm, Height 30-160 mm Label Roll: Inner Diameter 75 mm, Outer Diameter 300 mm Accuracy: ± 1 mm Power Supply: 110 or 220 VAC, 50/60 Hz ※ Actual product specifications may vary
Automatic Front and Back Labeler Automatic level: Automated machine Labeling Motor: Stepper Motor Labeling Speed: 20~40 pcs/min (according to product and label size) Label Size: (Length) 20-300 mm, (Width) 10-100 mm Product Size: Diameter 20 mm - 125 mm, Height 30-160 mm Label Roll: Inner Diameter 75 mm, Outer Diameter 300 mm Accuracy: ± 1 mm Power Supply: 110 or 220 VAC, 50/60 Hz ※ Actual product specifications may vary

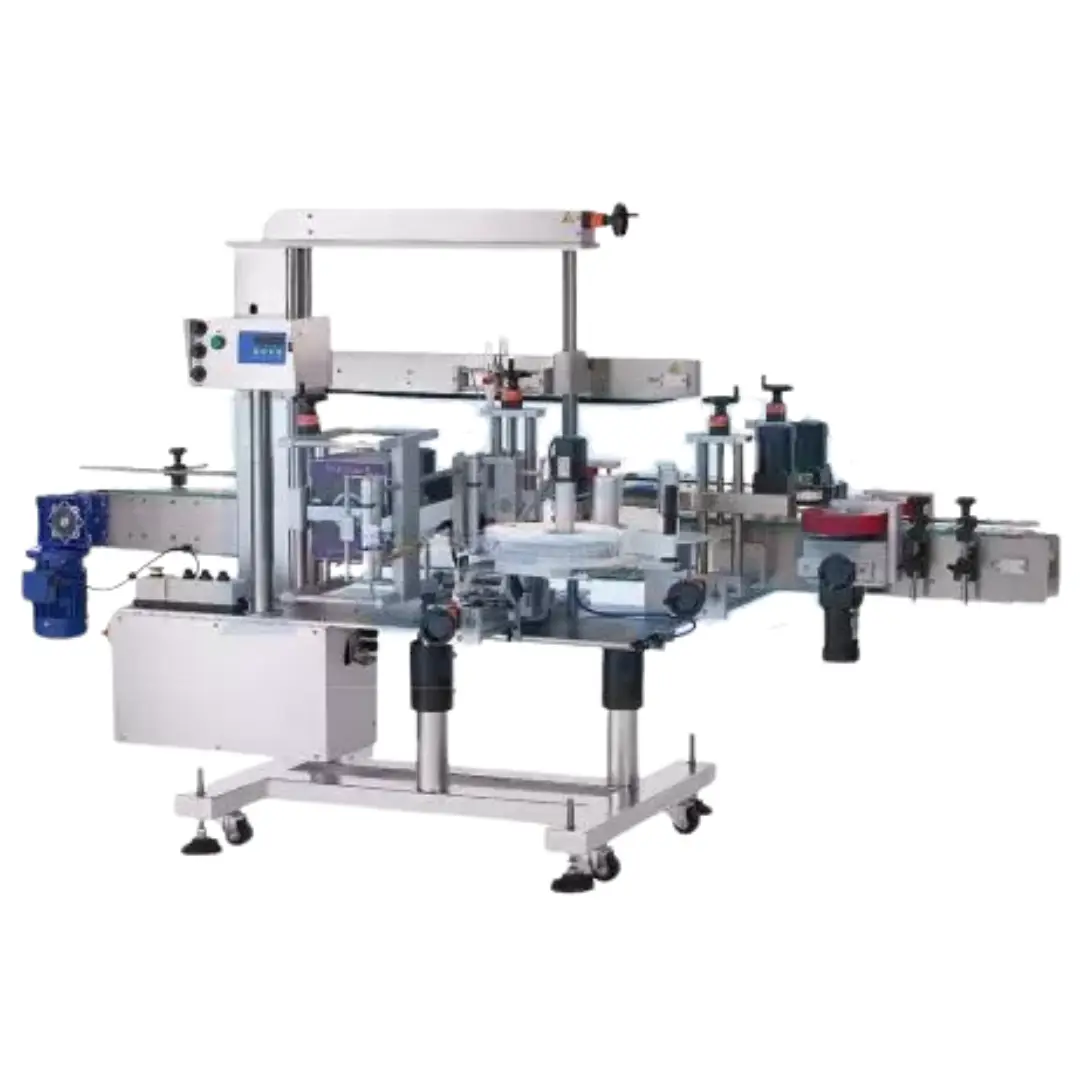

Automatic Front and Back Labeler

Availability: In Stock
Get a Quote
Download Catalog

SKU: LD3000
Categories: , Tags: ,
  1. Intelligent Binary Decode allows synchronization of the label applicator, conveyor, and top-pressing unit after the adjustment, saving time on product change.
  2. High Adaptability: You can adjust the labeler to fit product size, various bottle and container packaging.
  3. It can connect with your existing production line, in turn to blend in packaging production and the manufacturing process.
  4. User-friendly Interface: The operator can easily arrange and control the labeling process.
  5. Colored HMI Screen: It’s simple to set and modify parameters, labeling position, and labeling module.
  6. Labeling preparation is flexible, fast, and easy, and completing precise front & back labeling.
  7. It’s equipped with 2 high-performance label applicators, allowing continuous production and ensuring high productivity.
  8. The automatic front and back Labeling machine is shipped with a calibration function, providing better labeling results.
  9. Both label applicators of LD3000 can be adjusted according to different product features and designs.
  10. You can fine-tune labeling height and angle in light of the container size. Its biggest adjustable angle is 20 degrees.
  11. You can choose to add a wraparound device. Thus, the labeler can attach a 1/2 or full circle label onto a round bottle.
  12. You can choose a bottle spacing unit to meet high production capacity needs.
  13. The labeling result is refined with the wrapping unit. (Square bottle needs a special mechanism.)
  14. An optional PLC control system and intuitive operation interface provide easy operation while converting the production line. You don’t need to adjust sensor settings, saving time.
  15. Detect missing label function: maintain the quality of finished products.
  16. Stepper motor control stable label dispensing
  17. Japanese sensor precisely detects the labeling position.
  18. The conveyor belt meets cGMP standards, and its coefficient of friction (COF) is low, which can deliver product steadily.
  19. The labeler is made of SUS# 304 stainless steel and aluminum alloy, which is firm and durable
  20. LD3000 can connect with a packaging machine, filler, capper, and capsule counter to upgrade an automated production line.
  21. A Programmable Logic Controller(PLC) precisely takes control of labeling work.
  22. Hand wheel with number position indicator allows you to adjust to the best arrangement.
  23. Dual label applicator adopts synchronization labeling mode, and single labeling mode is available too.‘
  1. The machine frame of LD3000 is a stainless steel base, helping labeling work remain stable and excellent.
  • Automatic level: Automated machine
  • Labeling Motor: Stepper Motor
  • Labeling Speed: 20~40 pcs/min (according to product and label size)
  • Label Size: (Length) 20-300 mm, (Width) 10-100 mm
  • Product Size: Diameter 20 mm - 125 mm, Height 30-160 mm
  • Label Roll: Inner Diameter 75 mm, Outer Diameter 300 mm
  • Accuracy: ± 1 mm
  • Power Supply: 110 or 220 VAC, 50/60 Hz
  • ※ Actual product specifications may vary

Advantages

Improve efficiency

Labeling on the front and back of the product at the same time. Compared with the labeler that separately labels on two sides, LD3000 reduces the labeling time.

Its automated processes require the least manual operation.

Due to labels are applied to both sides of the container at the same time, the downtime associated with label roll replacement or mechanism adjustment will become less.

Beautiful labels enhance the visual appeal of the product and ensure that the labels on the product are neat, making the packaging look more professional.

Make sure the position will be perfect! Calibration units ensure your product always attaches to the correct designated position.

Suitable Goods

The nutrition facts and brand of food shortage jars, juice, water, energy drinks, hard drinks, mayonnaise, jam, ketchup, mustard, maple syrup, pastry, snacks, and prepackaged food.

The container needs to be labeled with ingredient lists, instructions, brands like shampoo, conditioner, lotion, essential oil, hair dye, hair treatment, and skin care products.

Medicine bottle, Prescription drug, Supplements, Fish oil, and Vitamins.

The instructions and safety information for air fresheners, pesticides, floor cleaners, laundry detergent, and bleach.

Pet food container, grooming product, pet drugs.

Label shows product information and warning sign of machine parts, car cleaners, lubricants, and engine oils.

Show specifications, functions and brand of gadgets such as phones, laptops, boxed accessories, electronic products, paper cartons, etc.

Automatic Front and Back Labeler

Suitable Product Shape:
Square Bottle, Cubic Container(paper box, metal box, plastic box, glass bottle), flat bottle.

Suitable Product Material:
Paper, glass, aluminum foil, plastic (PVC、OPP、PP、PE、PET), metals (tinplate, aluminum, stainless steel)

Suitable Labels:

Fragile stickers, transparent labels, Ingredient facts, promotion labels, waterproof stickers, anti-counterfeiting labels, self-adhesive labels, nutrition facts, batch code, safety warning, and void sticker.

Labeling Style:
The product passes through 2 label applicators, detected by the sensor, and attaches stickers on it with side-labeling, meanwhile, smoothing labels with a sponge roller and brush to avoid wrinkles and bubbles.

Suitable Industries:
Food & Beverage Industry, Pharmaceutical industry, Biotechnology industry, Technology industry, Manufacturing Industry, Cosmetic Industry, Chemical Industry

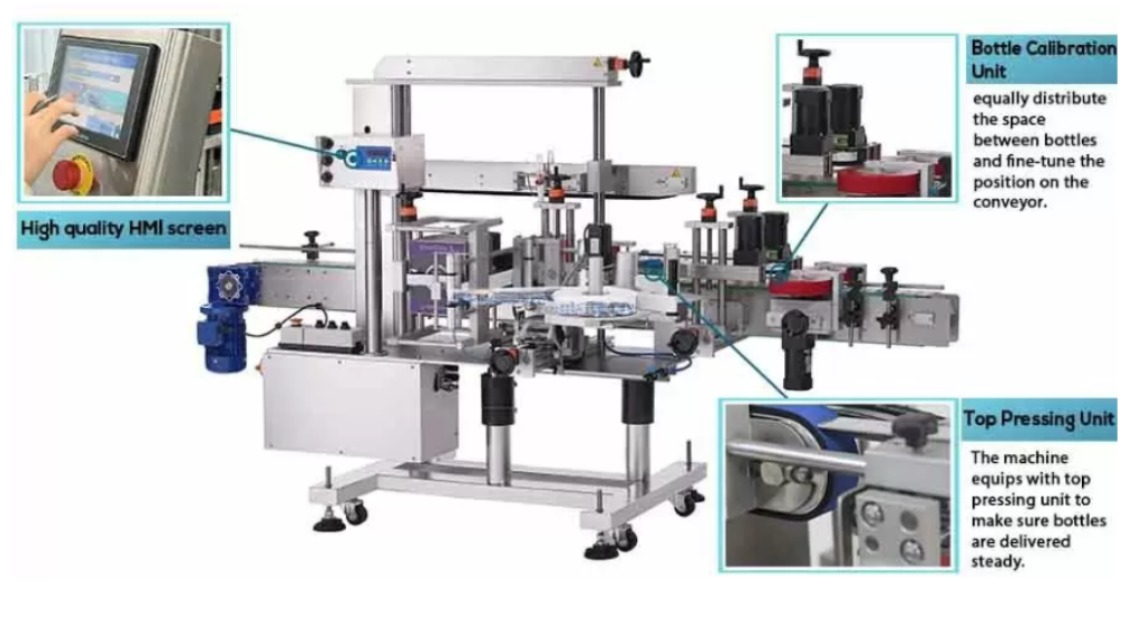

Machine Layout:

Machine Layout
  • Servo Motor
  • Angled Module
  • PLC Control System
  • Transparent Label Sensor
  • Infeed or Outfeed Turntable
  • Smoothing Unit, e.g., Brushes, Sponge Rollers
  • Infeed or Outfeed Platform: driven by motor
  • Hot Stamp Printing Machine, Laser Printer, QR Code Printer
  • Pneumatic Round Labeling Module

Description

Automatic Front and Back Labeler LD3000 is a machine that can attach labels on both sides of the product or container at the same time, affixing the stickers on the front and back sides respectively, and reducing the process of repeated feeding or stopping the general single-sided labeling machine. LD3000 is suitable for bottles of various sizes and different materials, such as plastic bottles, glass bottles, PET bottles, metal bottles, etc. It can also be applied to containers with flat surfaces, such as square bottles and paper boxes, covering a wide range of product types. With two high-performance label applicators, we ensure high productivity during continuous production work.

High accuracy and flexibility of the double-sided labeler help you reduce the cost and error rate

The advantage of the double-sided labeler LD3000 is that it can improve production efficiency, accuracy, and flexibility, then reducing labor costs and error rates. In addition, the position and angle of the label applicator can be adjusted easily to meet different product needs. The labeler accurately detects the position and direction of the product with advanced sensors, synchronizes the labeling speed with a stepper motor or servo motor. Plus, an overhead conveyor to press the product can stabilize the container, achieving high-quality labeling without missing a label. At last, ensure stickers are attached to the product with sponge rollers and brushes.

Dual use! LD3000 easily achieves the needs of single and double labeling

According to the product characteristics, you can use the labeler as a front & back or simply side labeling machine. Both label applicators can be switched on and off freely, providing choices of single or double-sided labeling mode:
•If you only need one side label on the product, you can choose the single-sided (the front or back) labeling mode to complete the labeling work.
•If you need to paste two labels on both sides of the container, you can choose double-sided labeling mode, using two label applicators at the same time to complete the labeling work.

Different double-sided labeling machines may have different labeling modes. Neostarpack will analyze your product characteristics and specifications to provide professional advice and help you choose the right labeling machine. For customers with varied production needs, we can give flexible customization, retain the design of brackets and holes to facilitate the increase of options in the future, and combine other machines, such as packaging machines, hot stamping machines, collecting machines, filling machines, and capping machines, to create automated packaging lines.
