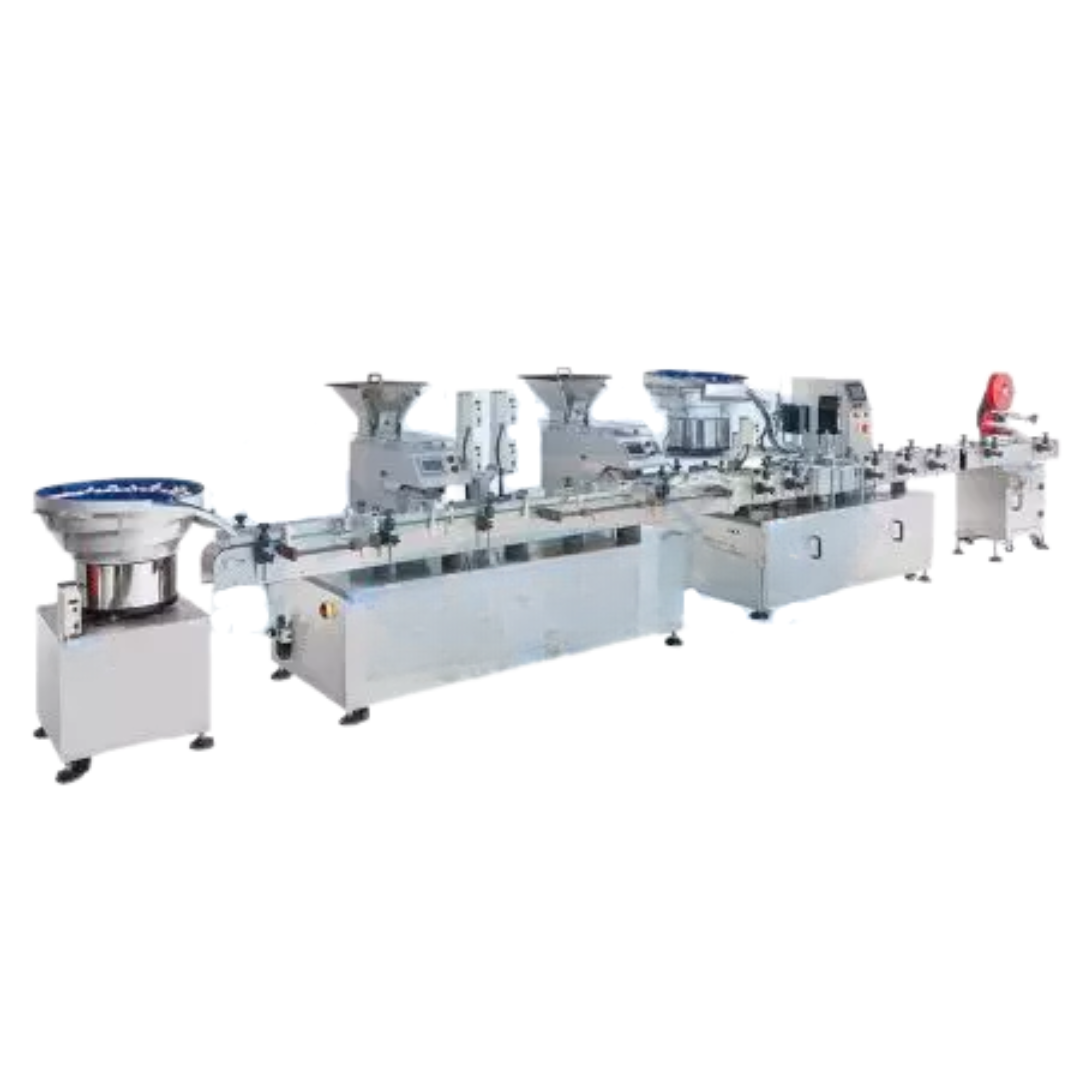

Automatic Counting Capping And Labeling Line

Description

Automatic Counting Capping And Labeling Line is designed for packaging regular counting materials, such as tablets, capsules, pills, etc. NTM-420 can finish the whole bottle filling, capping, and labeling production Line.

With PLC user friendly control system and touch screen, it is easy to operate without training and adjustments to save downtime and boost productivity. We design and manufacture automatic counting filling lines and fully automatic production lines, and our products are sold in America, Europe, Asia, and Africa.

1. Advanced sensor detection system for precise counting.

2. Capping height can be adjusted simply by hand wheel.

3. The Starwheel bottle spacing system makes the capping process efficient.

Features

1. Automatic Counting Capping And Labeling Line is equipped with an automatic container feeder.

2. An automatic tablet/capsule counting machine with a conveyor system is needed.

3. Anti-dust mode to ensure counting accuracy.

4. Automatic Counting Capping And Labeling Line has an advanced sensor detection system for precise counting.

5. Any errors will show on the touchscreen to avoid mistakes.

6. Easy changeover modular for capping different sizes of caps.

7. Automatic Counting Capping And Labeling Line’s capping speed, pressure, and torque are adjustable by knobs.

8. Capping height can be adjusted simply by hand wheel.The

9. Automatic Counting Capping And Labeling Line has a starwheel bottle spacing system that makes the capping process efficient.

10. Automatic Counting Capping And Labeling Line is connected with a top labeler.

11. Labeling height and angle are adjustable.

12. Automatic Counting Capping And Labeling Line has a sensor detection system: no bottle, no labeling.

13. Automatic Counting Capping And Labeling Line is equipped with an emergency button for safety concerns.

14. Heavy-duty cabinet basement with casters: easy to move.

15. Automatic Counting Capping And Labeling Line is used for tablet, capsule, pill filling bottle.

16. Automatic Counting Capping And Labeling Line is made of SUS#304 stainless steel and aluminum alloy for easy maintenance and longevity.

Specification

Tablet Capsule Counter

• Counting speed: 1200 ~ 2000 pcs/min (depends on product size)
• Tablet size: height > 2mm, diameter 2 ~ 40mm
• Accuracy: 100% at proper speed
• Air consumption: 2CFM at 90 PSI
• Voltage: 110 or 220 VAC

Capping Machine

• Capping speed: 20 ~ 40 pcs/min (depends on bottle and cap size)
• Cap Type: All kinds of screw caps
• Air consumption: 5 Kg
• Voltage: 110 or 220 VAC

Labeler

• Labeling speed: 20 ~ 60 pcs/min (depends on product and label size)
• Label size: (W) 10 ~ 100 mm / (L) 20 ~ 250mm
• Label reel: Inner diameter 75mm / Outer diameter 300mm
• Accuracy: ± 1mm
• Voltage: 110 or 220 VAC

Option Accessories

• PLC & HMI
• Automatic cap feeder
• Feeding/collecting turntable
• Anti-dust protective case
