- Built with anti-dust housing, hygiene is a concern.
- Filling nozzles can be customized for quantity and filling method to meet production requirements.
- Advanced valves prevent liquid from dripping down.
- Drip tray setting, surplus liquid backflow, no waste.
- Adopted a servo motor and gear pump, filling precisely and quickly.
- User-friendly system, simple to use.
- No bottle, no fill sensor.
- Color touch screen and PLC controlled.
- Program recipe storage for simple and quick changeovers.
- Precise sensor detected, no bottle, no fill.
- Start, emergency stop, and speed controller configuration.
- Multiple filling and conveying speeds for accurate control of production.
- Automatic pneumatic gates for bottle entry and exit.
- Sturdy conveyor.
- Conveyor guide rail can be adjusted to accommodate any size of bottles.
- Built with mobility castors, enabling easy movement.
- Heavy-duty steel, easy-to-maintain.
- Compliance with GMP standard, made of SUS304 stainless steel and anodized aluminum.
Features
Specifications
- Specialty product: Foamy Product
- Filling speed: Up to 250ml/sec
- Filling range: Up to 4000ml
- Filling accuracy: ±0.5%
- Machine dimension: (L) 2800mm(W) 1500mm(H) 2400mm
- Machine weight：410 KG
- Power supply：110/220VAC, 50/60HZ, Single phase
- Air pressure requirement：90 PSI/3 CFM
- Bottle feeding turntable
Description
Description

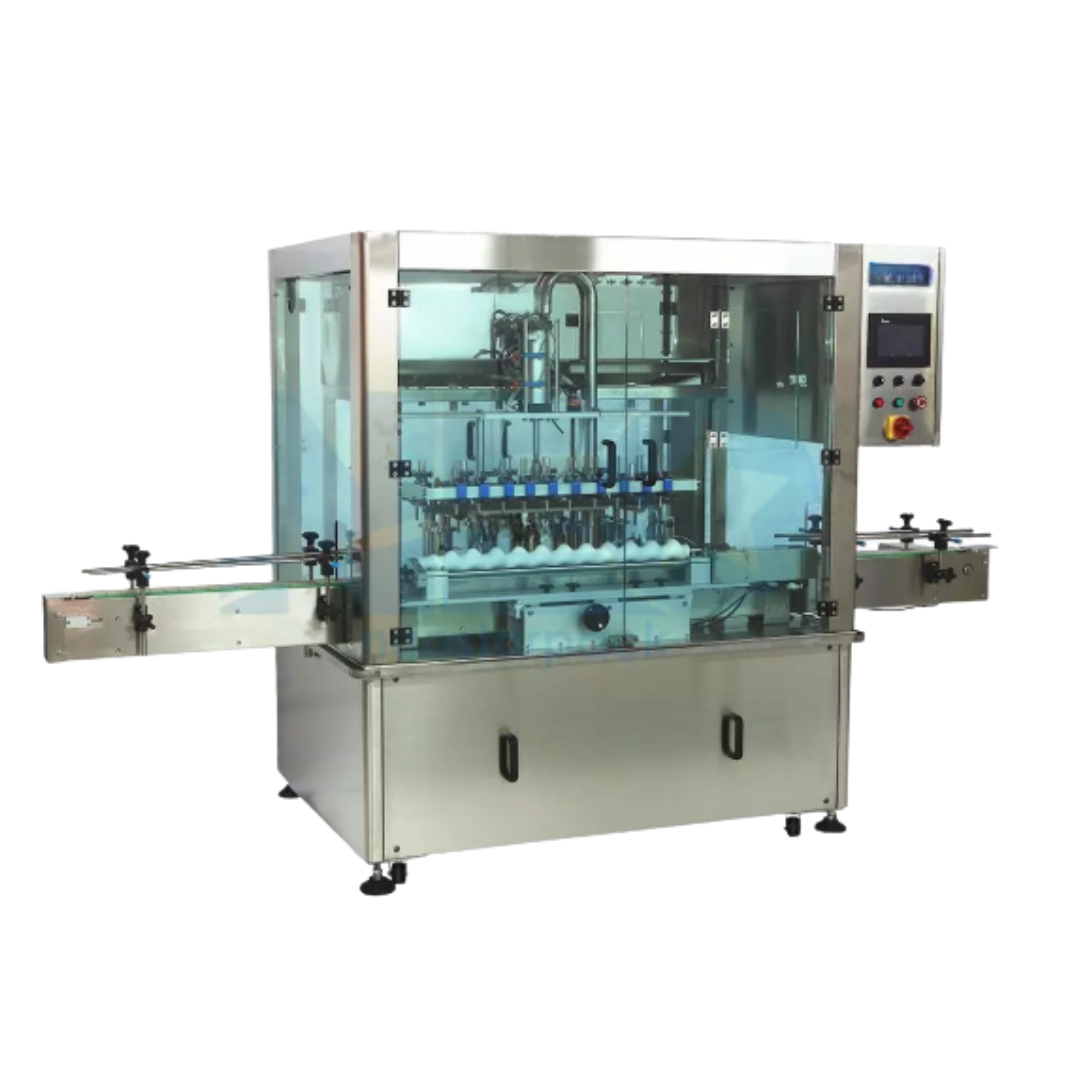

Automatic bottle filling machine with a 12-head automatic liquid filling machine, filling machine capacity can be customized to suit production speed. This bottling filling machine can be used for bottling juices, oils filling line, honey, food products, pharmacy syrups, filling line, foamy liquids filling line, toilet cleaner filler, chemicals, and any free-flowing flowing low to medium viscous liquids.
Automatic filling machines are suitable for free-flowing liquids like oil, beverages, lotion, and sauce. It can be applied to a wide range of industries, including cosmetics, chemicals, pharmaceuticals, food and beverages, with high capacity, accuracy, and stability, quick and easy changeover to save operation time, equipped with anti-dust and hygiene concern housing for option.
Features
- Built with anti-dust housing, hygiene is a concern.
- Filling nozzles can be customized for quantity and filling method to meet production requirements.
- Advanced valves prevent liquid from dripping down.
- Drip tray setting, surplus liquid backflow, no waste.
- Adopted a servo motor and gear pump, filling precisely and quickly.
- User-friendly system, simple to use.
- No bottle, no fill sensor.
- Color touch screen and PLC controlled.
- Program recipe storage for simple and quick changeovers.
- Precise sensor detected, no bottle, no fill.
- Start, emergency stop, and speed controller configuration.
- Multiple filling and conveying speeds for accurate control of production.
- Automatic pneumatic gates for bottle entry and exit.
- Sturdy conveyor.
- Conveyor guide rail can be adjusted to accommodate any size of bottles.
- Built with mobility castors, enabling easy movement.
- Heavy-duty steel, easy-to-maintain.
- Compliance with GMP standard, made of SUS304 stainless steel and anodized aluminum.
Specification
- Specialty product: Foamy Product
- Filling speed: Up to 250ml/sec
- Filling range: Up to 4000ml
- Filling accuracy: ±0.5%
- Machine dimension: (L) 2800mm(W) 1500mm(H) 2400mm
- Machine weight：410 KG
- Power supply：110/220VAC, 50/60HZ, Single phase
- Air pressure requirement：90 PSI/3 CFM
Option Accessories
- Bottle feeding turntable
