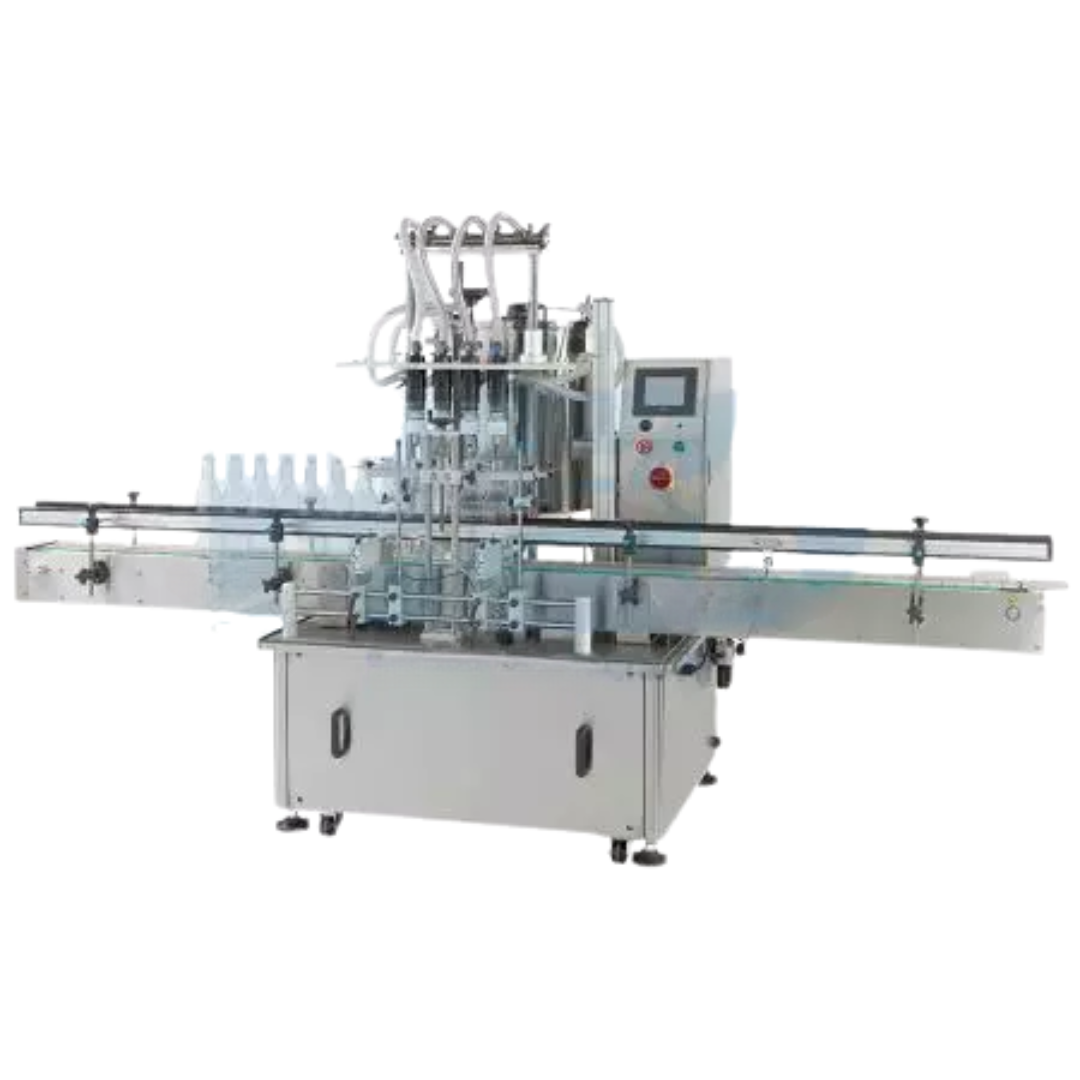

Automatic 4-Nozzle Overflow Filler

Description

Automatic 4-nozzle overflow filler is designed for mineral water filling requirements with massive volume. The liquid level of every bottle will be the same, and the surplus bubbles will overflow into the reservoir. It is especially suited for foamy liquid.

Features

1. Automatic 4-nozzle overflow filler suits for free-flowing liquid filling requirements like water and juice.
2. Four filling nozzles to fill four bottles at one time.
3. Heads lower into bottles to decrease bubbles.
4. Both round bottles and rectangular bottles can be adopted easily without an additional device.
5. Surplus liquid and bubbles overflow back to the reservoir.
6. Dipping nozzles prevent spillage and diminish bubbles.
7. Fiber optic sensors for container gating.
8. 100 L stainless steel #SUS 316 tank (Option).
9. Automatic 4-nozzle overflow filler can be customized according to different liquids.
10. Automatic 4-nozzle overflow filler user-friendly control system with touch screen for ease of adjustment.

Specification

• Liquid: Free-flowing liquid
• Speed: 3bpm (5L bottle)
• Filling range: 1~5L
• Control system: PLC+HMI system
• Power supply : 110v or 220v, single phase
• Dimension: (L)3000mm (W)1018mm (H)1777 mm

Option Accessories

• SUS 316 or plastic wetted contact parts.
• Modifications for large containers
• Customized tank
• Bottle feeding device
