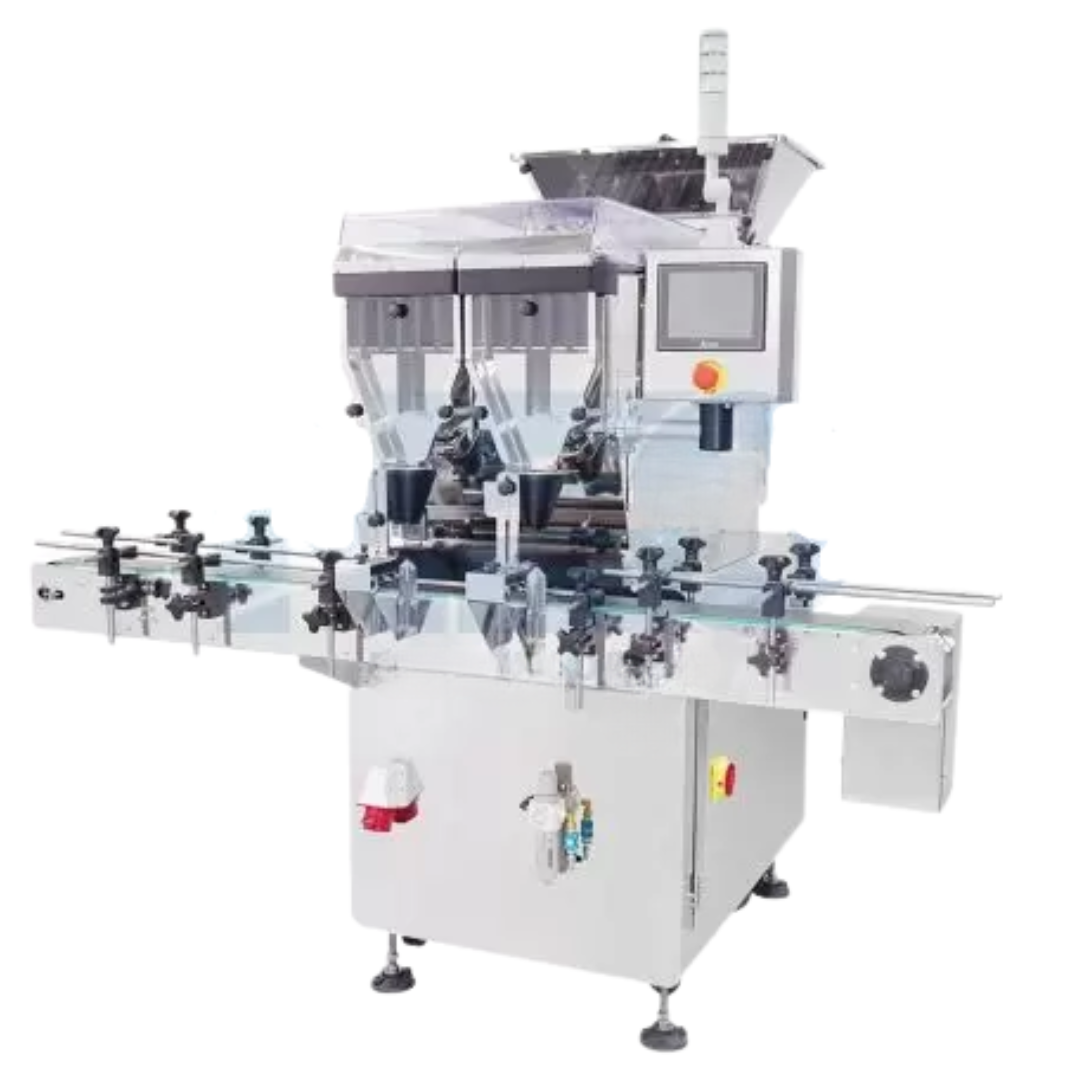

Automatic 12-channel Tablet & Capsule Counting Machine

Description

The 12-channel tablet and capsule counting machine TM4600 is an automatic counting packaging machine for dispensing capsules, tablets, pills, and sugar-coated tablets into bottles. TM4600 uses a KEYENCE high-accuracy optical sensor for product detection and provides high-speed counting via 12 feeding channels. Compared with other counting machines with fewer channels, TM4600 has a higher production speed, as high as 2200- 6000 pieces/minute, which provides high-speed counting and filling production for the pharmaceutical industry and nutritional supplement industries. In addition, TM4600 is easy to operate with a large touch screen. It can be applied to a variety of product counting without changing the parts of the feeding module to meet the needs of pharmaceutical and health food factories for automated pill counting and packaging.

How the multi-channel tablet and capsule counter achieves accurate counting.

The multi-channel tablet & capsule counting machine uses an optical sensor to detect the tablets/caplets passing through the gate for accurate counting.
First, set the required number of tablets, pills, or capsules to be counted and adjust the feeding speed according to your needs. Make sure the capsules and tablets to be counted are free of debris and remove any damaged, irregularly shaped products, then fill the product into the hopper. Do not overload the hopper to prevent jamming, which may cause inaccurate counting.
After starting the machine, the products in the hopper will be dispersed and arranged on each channel through vibration. Then the optical sensor detects the product at the end of the channel. Once the quantity reaches the set number, the gates will open and drop the product into the bottle through the filling nozzle.

Designed and manufactured in compliance with GMP, the perfect counting machine for the pharmaceutical industry.

The TM4600 uses high-speed optical sensor systems and computer control systems to provide advanced technology for the pharmaceutical, biotech, food, and cosmetic industries to count and pack most types of tablets and capsules. It is especially ideal for the pharmaceutical and nutritional supplements industries. It does not have the problem of inconsistent product numbers from the weigh-filling system, and it is easier to maintain than a counting machine with a visual inspection system, meeting the accuracy and stability requirements of automated counting and filling production.

Neostarpack tablet and capsule counting machines are designed and manufactured according to GMP, whether you are a Chinese medicine factory, a Western medicine factory, a biotech pharmaceutical company, or a food factory, we can provide professional pre-sales consultation and perfect after-sales service to plan the most satisfactory counting and filling solution according to your needs. The 12-channel tablet and capsule counting machine combines high-speed counting, accuracy, versatility, and automation to help pharmaceutical and food packaging industries achieve better productivity.

Advantages:

• High-speed capsule and tablet counting
  12 channels for simultaneous counting of tablets or capsules for higher production.
• 100% Counting accuracy
  Multiple channels for counting large numbers of tablets and capsules with high accuracy.
• Automatic dust detection
  Maintain the stability of long-term production.
• Versatility
  Able to count tablets and capsules of various sizes, shapes, and materials for a wide range of applications.
• Automation brings high efficiency
• Automatic counting reduces labor and increases overall efficiency.

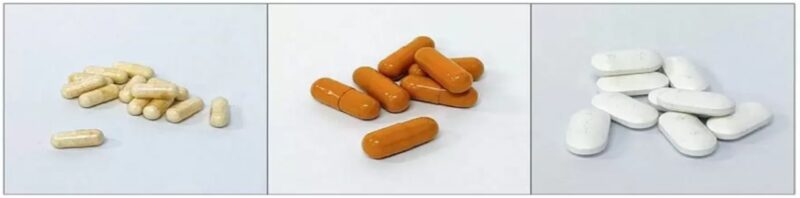

Suitable Product Shape:

It can be applied to various sizes and shapes of tablets, lozenges, and capsules. It can be adapted to different products without complicated adjustment or parts replacement and is versatile enough to meet various production requirements, including tablets, capsules, pills, soft capsules, sugar-coated tablets, and other powder form tablets.

Suitable Industries:

Pharmaceutical industry, health food industry, biotechnology industry, food industry, and beauty industry, packaging OEM.

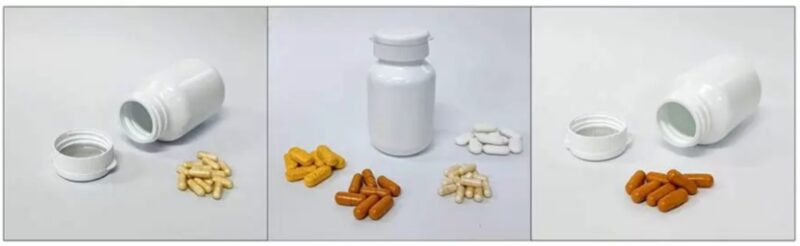

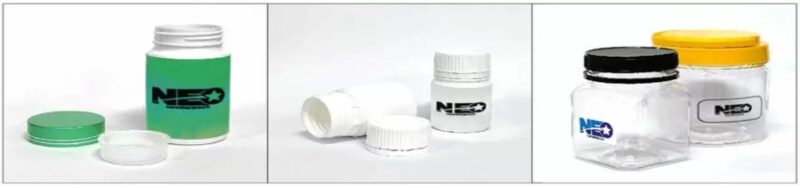

Suitable Container:

Various round bottles, polygonal bottles, square bottles, oval bottles, flat bottles, and packing bags (need to integrate with bag packing machine).

Suitable Bottle Material:

Glass bottles, plastic bottles, metal jars, ceramics.

Machine Layout:

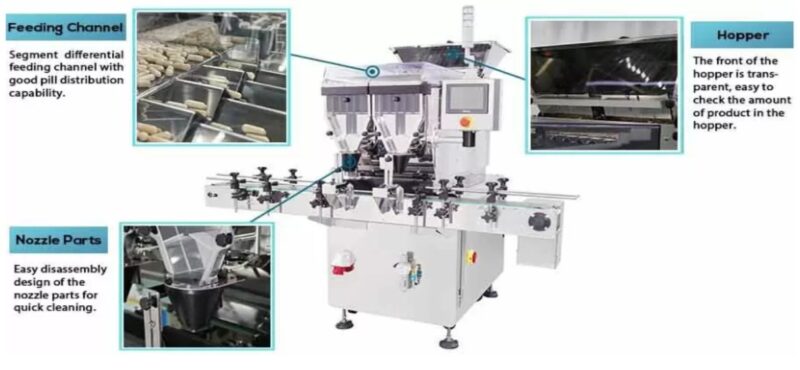

Features

1. Product feeding is performed by a 12-channel vibration feeding module, and the vibration frequency and speed can be adjusted by the operator.
2. The counting module height can be adjusted by the motor lifting device, so it is possible to fill bottles of different heights.
3. The large-capacity hopper can accommodate most tablets, lozenges, and capsules. Provides maximum versatility with no need to change components in the feeding module when changing counting products.
4. A dust collection device is used to prevent the powder of the tablet from affecting the counting accuracy.
5. HMI to monitor the process: Real-time display to ensure that the count is accurate and follows the set quantity, controlling the production progress.
6. HMI can memorize 100 sets of production recipes, including parameter settings and batch information, to improve the speed of line changeover
7. PLC controlled, and HMI touchscreen, adjustments and settings can be done through the touchscreen, convenient for different products to be produced alternately
8. The products are filled into the bottles or containers on the conveyor through the stainless-steel sanitary feeding system and bottle-feeding system while being accurately counted.
9. Two-stage vibration feeding module is suitable for general capsules and round tablets and has excellent adaptability to irregular pellets.
10. Suitable for capsules and tablets with a diameter of 4~40mm and a height of 4mm or more. (Other sizes can be customized)
11. 12-channel vibration feeding module and 2 nozzles for high counting and filing speed
12. The counting sensor is KEYENCE for accurate detection.
13. Counting numbers can be set from 1-9999, meeting the needs of supplements and pharmaceutical packaging.
14. The product contact material complies with the FDA to meet pharmaceutical, food, and cosmetic production.
15. Plastic steel chain conveyor and guide rail, stable bottle conveying, and low noise.
16. The conveyor can accommodate various sizes of bottles.
17. Automatic bottle infeed and outfeed system, with accurate positioning of bottles.
18. A counting machine can be customized with 8, 12, 16, or 24 channels. An automatic feeding machine can increase the production capacity.
19. Quick detachable design, tool-free to disassemble and clean.
20. Straight-line conveyor design, easy to integrate with other packaging machines.
21. Food-grade plastic acrylic transparent cover.
22. Set a target output, and the machine will stop automatically when the set output is reached.
23. The automatic alarm system, the machine can detect abnormalities to prevent defective products
24. No need to reset the sensor for product change.

Specification

• Automation Level: Fully Automatic
• Tablet/Capsule Size : (Dia.)4~40mm; (H)>4mm: NO.000~NO.5
• Counting Speed: 2200-6000 pcs/min (depending on product size and shape)
• Accuracy: 100% (with proper speed)
• Bottle Size : (Dia.)38-100mm; (H)60~220mm
• Power Supply : 110 or 220VAC, 50/60Hz, single phase
• (Electrical system per overseas regulations is available)
• Air Supply: 40~60 PSI
• Machine Size : (L)2100mm (W)1504mm (H)1754mm
• ※ Actual product specifications may vary

Option Accessories

• Weight checking system.
• Customized conveyor.
• Advanced HMI: Permission management, production history, batch data.
• Counting and bottling line solution (bottle scrambler, air rising machine, cotton inserter, desiccant inserter, capper, induction sealer, and labeler)
• Pouch packaging machine.
