- The piston pump filling machine can be used in a wide range of solutions, whether the liquid is thick or flowing. The filler has the feature of being all-purpose for liquid filling.
- Suitable for large round bottles and barrels for liquid filling. Automated large filling volume machinery equipment speeds up production.
- With a full-cover filling machine to prevent dust pollution.
- The filling machine, automated cap feeding and tightening machine, and labeling machine are integrated into an automatic production line, which can be operated by synchronized systems.
- With the touch panel human machine interface and PLC operation mode, the user finds it easier to operate and easier to learn.
- Production requirements are setting the parameter through an automated human-machine interface, and data adjustment settings are easy to understand.
- The automatic capping device includes the cap storage machine, cap feeding, placing, and tightening device. Multiple functions in one machine to save space and manual labor for placing the caps.
- The filling and capping mechanism is made of stainless steel 304 or 316, which is durable and meets GMP standards.
- Large round bottles or barrels from filling, capping to labeling, the vertical conveying device makes bottle conveying smooth and stable, and prevents the bottles from skewing and toppling down.
- The automatic cap feeding mechanism is customized according to the cap size. If there are multiple cap sizes, it can be customized according to the requirements and applied to the original capping machine, improving the broad usage of the capping device.
- Equipped with an emergency stop button to easily operate and control the production process in case the production line has a problem, and prevent the operator from getting injured.
- The vertical round bottle labeling machine can be used for full wrapping around, 1/2 round labeling, and single-sided labeling.
- Special alkaline liquids and acidic liquids need to be tested and customized by using specific materials
- Automatic filling machine connects to the capping machine for line production, and can also run the production with a single machine according to production needs.

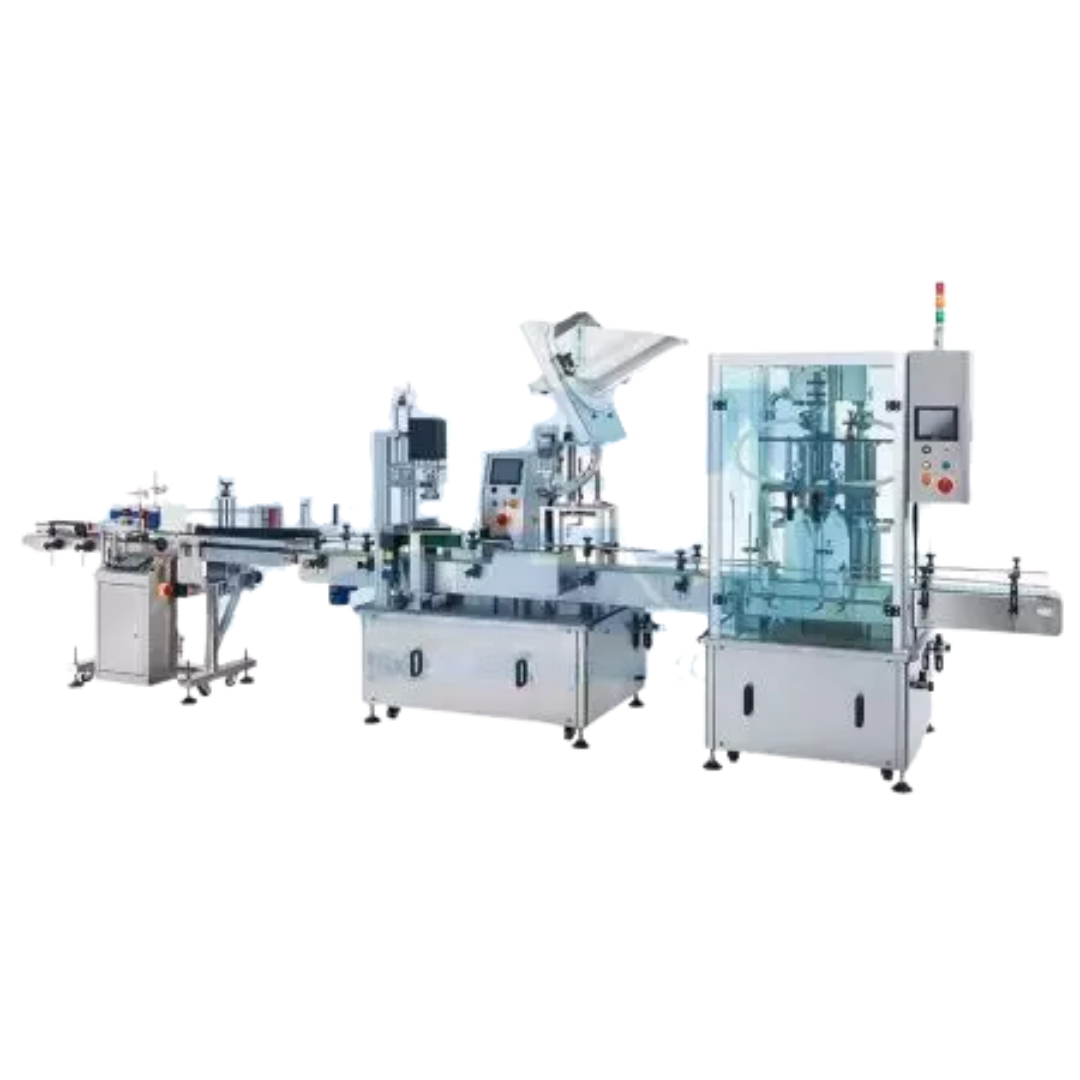

Automated Chemical Products Filling Capping and Labeling Packaging Line
Availability: In Stock
SKU: FP5150 / CC4000 / LR3000
Features
Specifications
- Filling range: 500- 5000ml
- Filling speed: 20-25 BPM
- Adopting pump: Piston pump
- Applicable cap: Plastic Screw caps
- Applicable bottle: Round bottle, barrel, and cylinder
- Power supply: 110 or 220 VAC, 50/60 Hz, Single phase
- Filling range: 500- 5000ml
- Filling speed: 20-25 BPM
- Applicable cap: Plastic Screw caps
- Applicable bottle: Round bottle, barrel, and cylinder
- Power supply: 110 or 220 VAC, 50/60 Hz, Single phase
Option Accessories
- Clear label sensor
- Date Printer
- Laser Printer
- Bottle In-Feeding Turntable
- Bottle Collecting Turntable
Description
Description
Usually, it’s necessary to consider the chemical properties of the product itself when manufacturing chemical products. Therefore, when selecting the packaging machinery equipment, the material of the packaging machine must also be considered to avoid product quality being affected by chemical liquid corrosion. Most of the liquids in the chemical industry are acidic and alkaline liquids; to avoid operators directly contacting the liquids during the filling process, we especially customize filling and capping lines for chemical products.
The chemical industry, like most other industries, is unable to predict the market reception in the early stage of development; it usually chooses to test the market demand by a small amount of production. As the sales volume increases, the automated production is taken into consideration to increase production capacity. To maintain the quality of each product, whether it is the capacity of the bottle filling, or the tightness of the cap or position of the label labelled, it can’t be achieved without filler, capper and labeler, these machinery equipment However, it consumes more manual labors and with less production efficiency with single machine operation. Hence, through integrating machine equipment, the automated chemical liquid filling and capping packaging line not only increases the production capacity but also improves the quality of product packaging.
This chemical production line can provide you with customized chemical filling, capping, and labeling equipment according to different characteristics of liquids, bottle size, shapes, material of caps, and labeling types. With the diversity of products in the market, we can provide a filling and capping machine packaging line that meets the needs of commodity packaging to create maximum value and efficiency for customers.
Chemical Liquids Filling Capping Machine
This chemical liquid filling, capping, and labeling packaging line is customized for the chemical industry and technology industry to meet the needs of a specialized solutions filling packaging line. Normal chemical industries use automatic filling equipment that considers the material and the chemical properties of liquids, and most of the chemical products use large-capacity packaging way for package to deal with large amounts of industrial usage and reduce the frequency of material replacement. Therefore, the filling range is from 500 to 5000 ml, which is very suitable for oils of large volume barrels filling and capping packages. It improves the shortcomings of time-consuming and labor-intensive processes for general large-capacity liquid filling. The large-capacity chemical filling packaging line includes:
A: Piston pump filling machine, which is suitable for filling thick liquids, such as cream, essence, nail polish, ink, paints, and detergents.
B: The Automatic capping machine includes an automatic cap feeding machine; manual cap placing is not needed. After the bottle is positioned, the cap will automatically be placed on the bottle and tightened. It is suitable for various sizes of plastic screw caps and with no dropper.
C. The vertical round bottle labeling machine is suitable for the shape of cylindrical bottle containers, which can be adjusted according to the size of the bottle.
